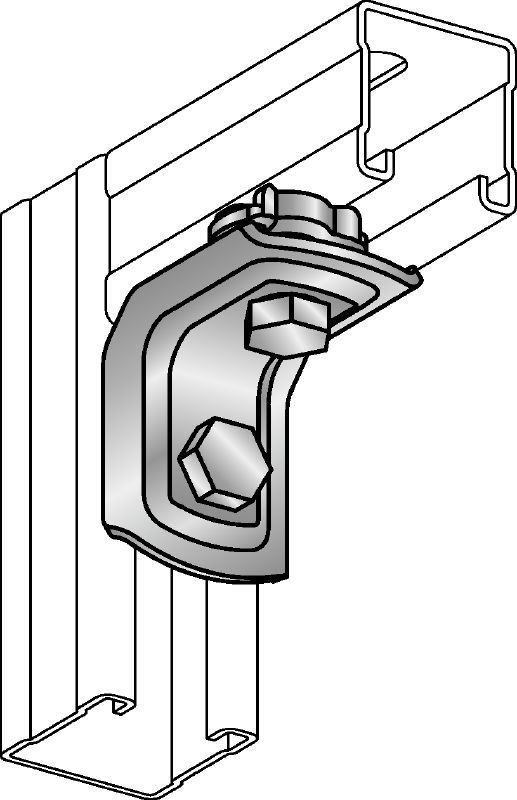

MQW-Q2 Pre-assembled angle
Galvanised 90-degree pre-assembled angle for connecting multiple MQ strut channels
- Wrench size: 17 mm
- Material composition: Angle: DD11 - DIN EN 10111, Bolt: M10 grade 8.8 - DIN ISO 898
- Surface finish: Indoor Coated - Electro galvanised
premium
Technical Data
Wrench size
17 mm
Material composition
Angle: DD11 - DIN EN 10111, Bolt: M10 grade 8.8 - DIN ISO 898
Surface finish
Indoor Coated - Electro galvanised
Material thickness
3 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Product class
Premium
Documents
Features & Applications
Features
- Pre-assembled – for quicker installation and to avoid losing parts
- Adjustable – easily fitted and repositioned along strut channels
- High strength
- Standard application
Applications
- Assembling channel frames and support structures
- Compatible with multiple MQ strut channels
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
