MQA-S Pipe clamp saddle

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001770_v1 (187396)
MQA-S (83620)
MQA-S (83621)
MQA-S (83634)
L_CG001827_v4_cropped (188133)
L_CG001824_v3_cropped (188123)
L_CG001824_v3 (188124)
MQA-S (83670)
MQA-S (83648)

Galvanised pipe clamp saddle for connecting threaded components to MQ/HS channels

  • Product class: Premium
  • Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
premium

Choose options

Thread connection - M
  • M8
  • M10
Pack size
  • 50
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 11,497.60

Technical Data

Details
Technical illustrations
Product class
Premium
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Operating Instruction MQA-S-M8-M10, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1 MB ]

Features & Applications

Features

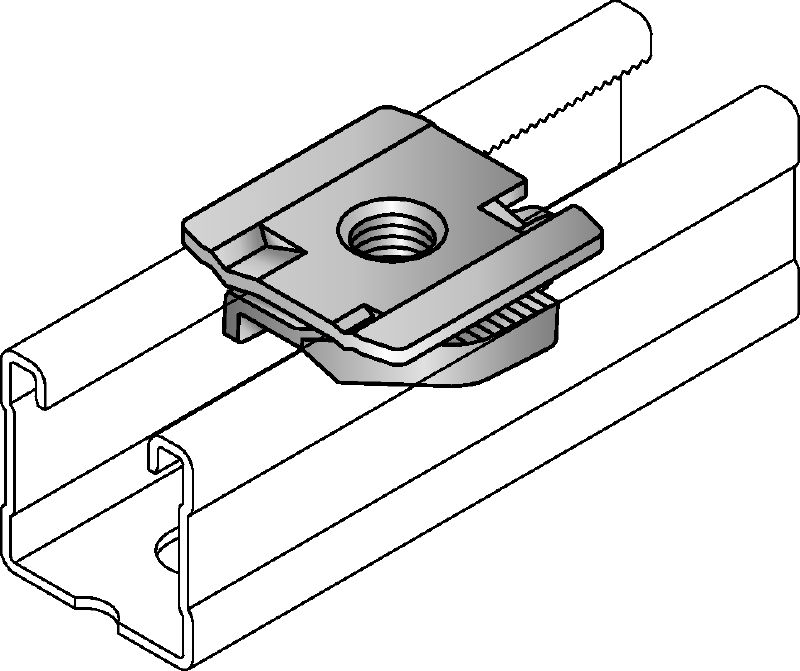

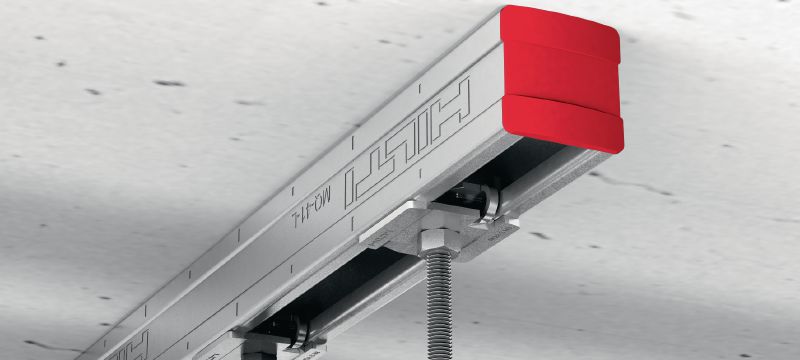

  • Quick connection of threaded components to the open side of MQ strut channels
  • Easy installation and positioning within MQ strut channel openings
  • Single, compact part – for higher productivity and flexibility
  • Various thread sizes available
  • Robust single-part design without plastic components

Applications

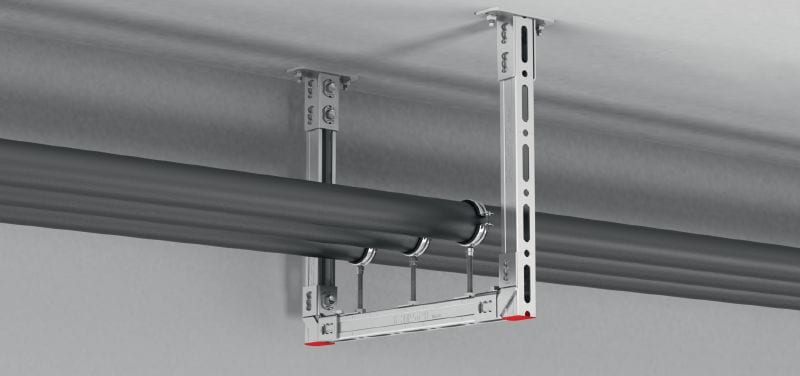

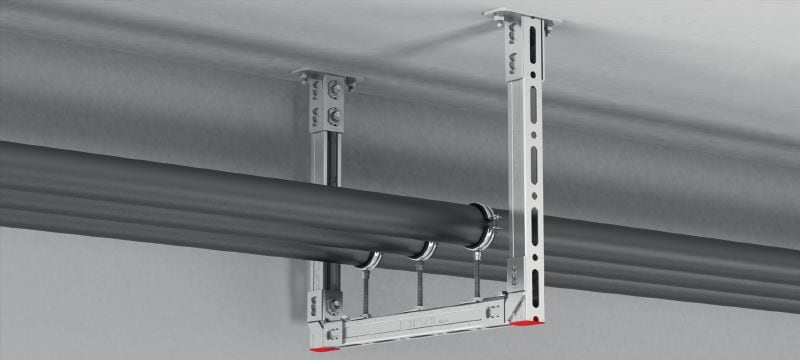

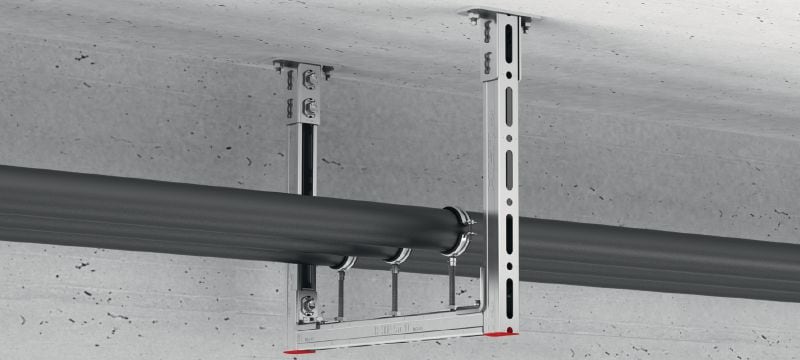

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
