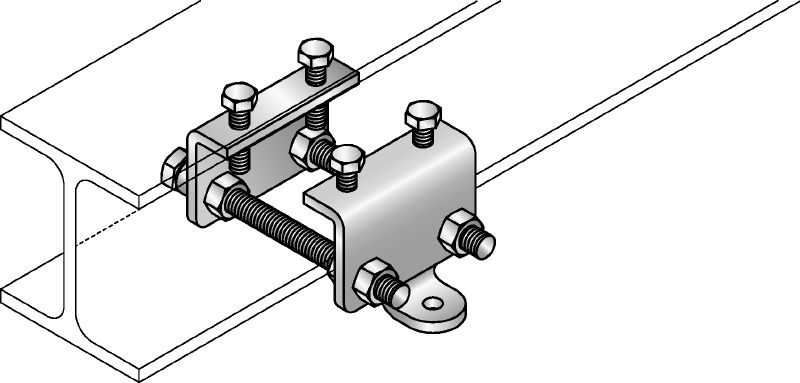

Galvanised pre-assembled beam connector with FM approval for seismic bracing of fire sprinkler pipes on steel structures

  • Material composition: Connector: S275JR - DIN EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

Material composition
Connector: S275JR - DIN EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

  • Compatible with steel beams from 6 to 28 mm flange thickness
  • FM-approved system for bracing of fire sprinkler installations
  • Meets U.S.A. National Fire Protection Association (NFPA) requirements for seismic braces
  • Shear-off bolt heads make installation and inspection quicker and easier

Applications

  • Seismic approved (FM) bracing of fire sprinkler pipes
  • Steel beam attachment component for longitudinal and transversal brace assembly
  • For use in combination with MQS-SP-L or MQS-SP-T channel connectors

For approval or certificate information, please see individual items.
