MGM 4 Fixed point base plate

Fixed point baseplate MGM 4-3/4 #246922

Configurator
Technical Data
Features & Applications
Related Products
MGM 4

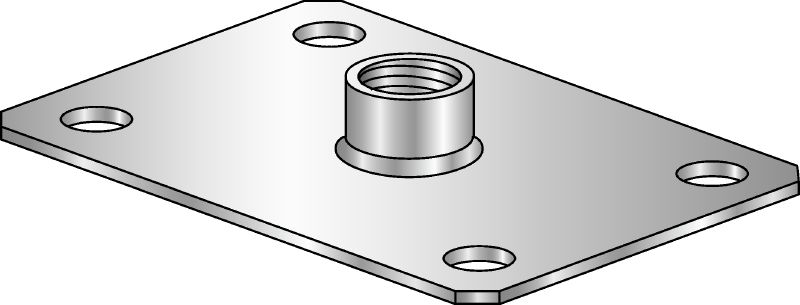

Premium galvanised 4-hole base plate for light-duty fixed point applications (imperial)

  • Thread connection - M: 3/4 in
  • Height - H: 21 mm
  • Maximum tensile load - F: 9 kN

Choose options

Thread connection - M
  • 3/4 in
Height - H
  • 21 mm
Maximum tensile load - F
  • 9 kN
Pack size
  • 10
 Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 12,016.00
INR 1,201.60 / 1 each

Technical Data

Thread connection - M
3/4 in
Height - H
21 mm
Maximum tensile load - F
9 kN
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
4
Weight
0.33 kg

Features & Applications

Features

  • Solid base plate for high load transfer
  • Increased load capacity due to all-around welded connection head
  • Load classes and capacities matched to Hilti pipe clamps

Applications

  • Installing light fixed points for pipes subject to thermal elongation and contraction
  • Heavy-duty base plate for single point fastening of pipes
