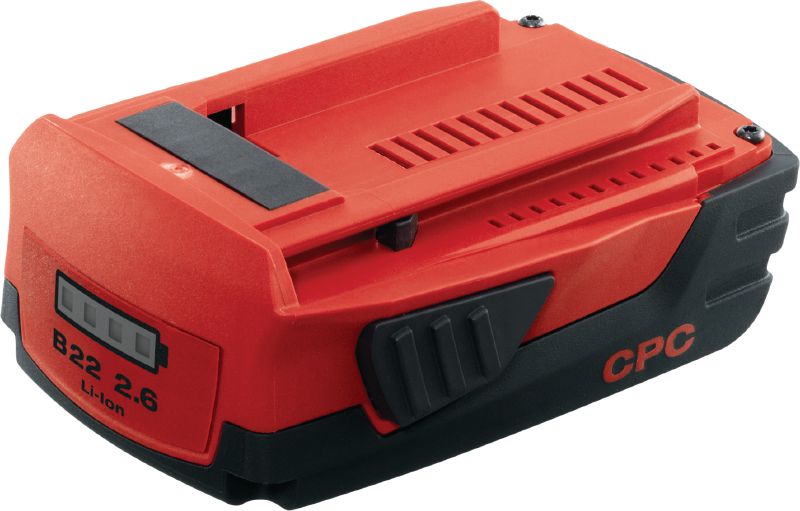

Compact 22V 2.6 Ah Li-ion battery

  • Battery capacity: 2.6 Ah
  • Weight: 0.49 kg
  • Dimensions (LxWxH): 135 x 94 x 53 mm

Technical Data

Battery capacity
2.6 Ah
Weight
0.49 kg
Dimensions (LxWxH)
135 x 94 x 53 mm
Battery energy
56 Wh
Charging time with C4/36-90 battery charger
37 min
Charging time with RC4/36 Radiocharger
37 min
Charging time with C4/36-350 battery charger
35 min
Working temperature range
-17 - 60 °C
State of charge display
Yes

Documents

Features & Applications

Features

  • Compact and lightweight 22V battery with improved run time
  • Includes Hilti Cordless Power Care (CPC) technology – on-board processors monitor each battery cell to deliver more reliable, consistent and longer-lasting power on your jobsites
  • Fully sealed electronics for increased protection against dust, humidity and water
  • Rubberised, glass-fibre reinforced casing – up to four times more resistant to damage from dropping and twice as resistant to extreme temperatures than standard ABS plastic
  • Casing designed to cool the battery to the ideal temperature for faster charging and reduce the risk of overload during use

Applications

  • Compatible with all Hilti 18V and 22V cordless tools
  • Compatible with the whole Hilti 18V and 22V cordless tool range
  • Compatible with all Hilti C4/36 Li-ion chargers
  • Applications in extreme temperature conditions – from 60° C (140° F) down to -17° C (1.4° F)
  • Applications in extreme temperature conditions – from 140° F down to 1.4° F
