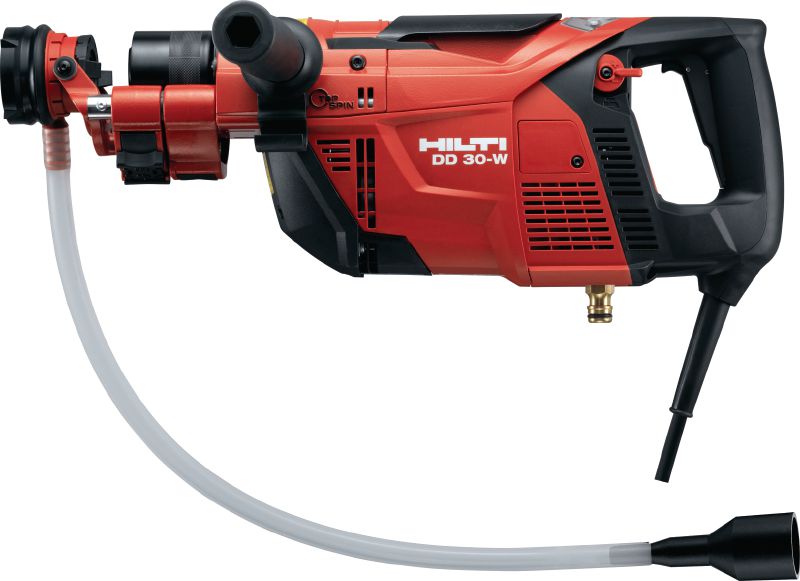

DD 30-W Core drill

Diamond coring tool DD 30-W 230V #2043868

Configurator
Technical Data
Documents
Features & Applications
Related Products
DD 30-W (86948)
DD 30-W (86955)
L098855_cropped (179860)
L098769_cropped (179861)
L094451_cropped (181091)

Compact, light diamond coring machine for wet, handheld coring of heavy-duty anchor and rebar holes from 8-35 mm (5/16 - 1-3/8") in diameter

  • Diameter range: 8 - 35 mm
  • Rated input voltage: 230 V
  • Base material: Concrete, Masonry

Customers also searched for Coring for anchor, Core drilling, small coring, anchor drilling or anchor fixing.

Choose options

Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 384,267.80
INR 384,267.80
/
1 each

Technical Data

Diameter range
8 - 35 mm
Rated input voltage
230 V
Base material
Concrete, Masonry
Operation mode

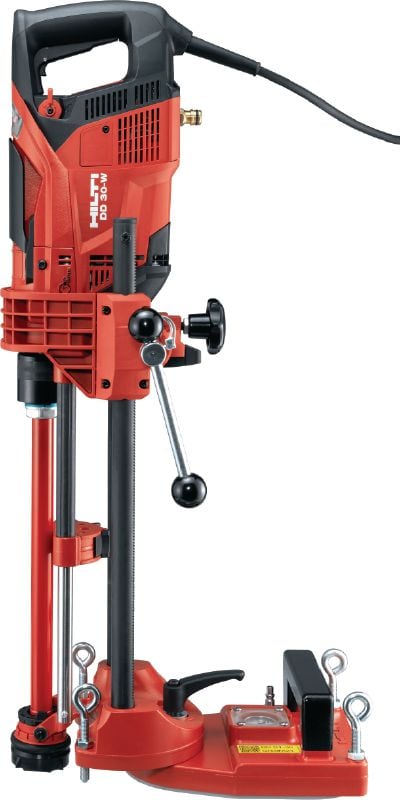

Hand-held and rig-mounted drilling system
Rated input power
1450 W
Number of gears
1
No load RPM
gear 1: 9200 rpm
Weight according to EPTA-Procedure 01/2003 without battery
7.6 kg
Dimensions (LxWxH)
429 x 127 x 238 mm
A-weighted emission sound pressure level
88 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
6 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
C+ 18/300 SPX-T
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DD 30-W (01), Arabic, cn, English, Japanese, Kazakh, Korean, Russian, Chinese [ 9 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]

Features & Applications

Features

  • Very low drilling noise – the ideal solution for drilling in inhabited buildings
  • Impact-free drilling reduces the risk of damage to brittle materials and allows drilling close to edges
  • Fast drilling through rebar thanks to the unique TopSpin technology
  • Soft-start feature for precise hole positioning
  • The quick-lock keyless chuck system makes changing core bits quicker and easier than ever

Applications

  • Drilling accurate anchor holes and through holes 8 to 35 mm (5/16 - 1-3/8") in diameter
  • Low-noise drilling for setting anchors during renovation work in hospitals, commercial and residential buildings
  • Wet coring in heavily-reinforced concrete, masonry and natural stone
  • Wet coring in brittle materials (marble, tiles, masonry, natural stone) and close to edges
