Nuron

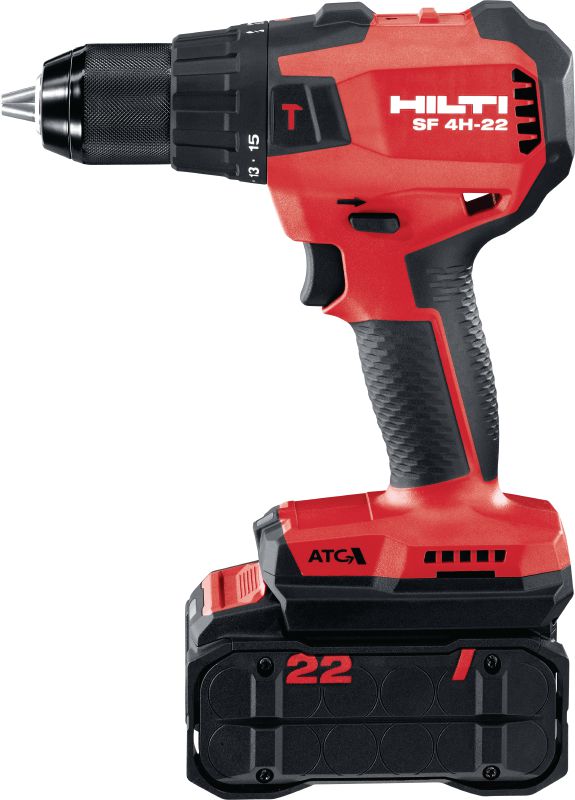

SF 4H-22 Cordless hammer drill driver

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L125841 (226236)
L127478 (1913709)
L142202_cropped (227343)
L142141_cropped (227279)
L142132_cropped (227288)

Compact-class hammer drill driver with Active Torque Control for everyday drilling and driving, especially in hard-to-reach places (Nuron battery platform)

  • Maximum torque (soft/hard joint): 36 Nm (soft joint), 62 Nm (hard joint)
  • No load RPM: gear 1: 610 rpm; gear 2: 2100 rpm
  • Chuck clamping range: 2 - 13 mm

Customers also searched for metal drill, drill driver, cordless metal drill, wood drill or drilling.

Choose options

Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 23,594.90

Technical Data

Maximum torque (soft/hard joint)
36 Nm (soft joint), 62 Nm (hard joint)
No load RPM
gear 1: 610 rpm; gear 2: 2100 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
190 x 68 x 215 mm
Tool body weight
1.4 kg
A-weighted emission sound pressure level
92 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
1.4 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 4-22 (02), SF 4H-22 (02), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.3 MB ]

Features & Applications

Features

  • More productive work – compact and capable cordless hammer drill driver for working in tight spaces or overhead – including on masonry – without compromising on efficiency
  • Faster drilling and driving – delivers the highest RPM and torque from any Hilti compact hammer drill driver thanks to high-output Nuron batteries
  • Built to last – full metal chuck, brushless motor and optimised cooling to better withstand intense use under tough jobsite conditions
  • Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

  • Hammer drilling in brick, masonry and aerated concrete (max. diameter 8 mm)
  • Drilling in wood (max. diameter 25 mm) and steel (max. diameter 8 mm)
  • Hole sawing in wood (max. diameter 82 mm)
  • Drilling with auger and spade bits in wood (max. diameter 25 mm)
  • Driving screws in steel (max. diameter 4.8 mm)

For approval or certificate information, please see individual items.

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
