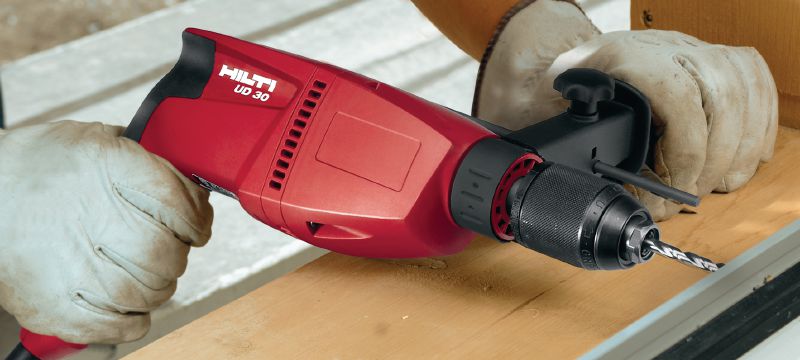

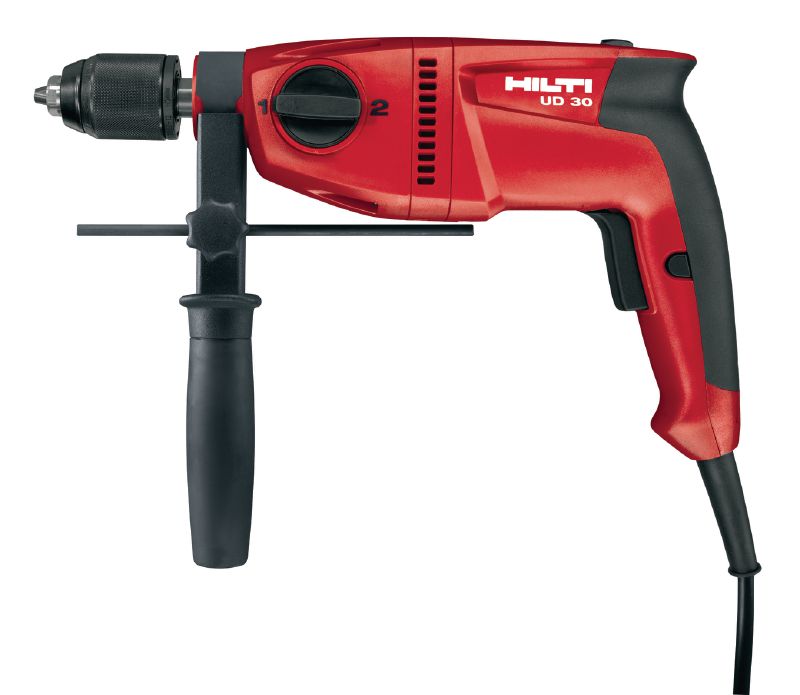

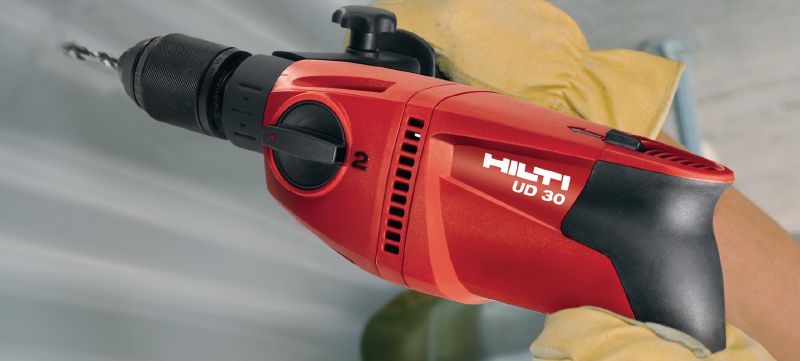

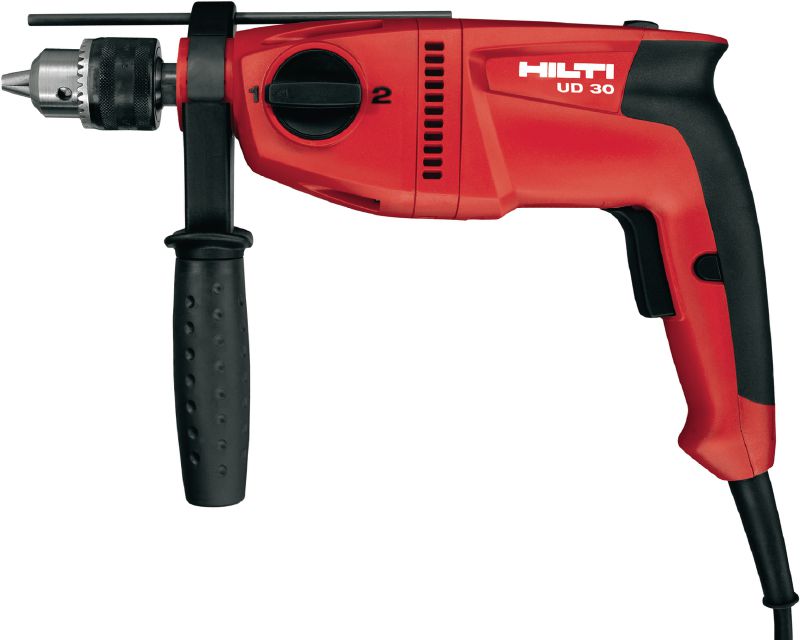

UD 30 Drill driver
Corded two-speed, high-rpm drill driver for metal applications
- Chuck clamping range: 2 - 13 mm
- No load RPM: gear 1: 1200 rpm; gear 2: 3300 rpm
- Maximum torque (soft/hard joint): 51 Nm (soft joint)
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
INR 38,066.00
INR 38,066.00
/
1 each
Technical Data
Chuck clamping range
2 - 13 mm
No load RPM
gear 1: 1200 rpm; gear 2: 3300 rpm
Maximum torque (soft/hard joint)
51 Nm (soft joint)
Number of gears
2
Dimensions (LxWxH)
337 x 86 x 205 mm
Weight
2.4 kg
Triaxial vibration value for drilling into metal (ah,D)
3.5 m/s² 1
Chuck type
Pistol grip, Quick-release chuck 13 mm
- According to the applicable product standard (see Operating Instruction for more details)
Documents
pdf Operating Instruction UD 30, UD 16 (01), Arabic, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Italian, Lithuanian, Latvian, Dutch, Norwegian, Portuguese, Swedish [ 2.6 MB ]
Features & Applications
Features
- Ergonomically designed pistol grip and low weight for maximum comfort during long periods of use
- Very reliable thanks to the extremely rugged casing and robust motor
- Stepless electronic speed control for smooth, gentle starting and screwdriving
- Choice of keyless chuck with spindle lock or robust key chuck
- Keyless quick-release chuck with spindle lock for easy bit changing
Applications
- Drilling in steel and sheet metal
- Drilling in wood with auger bits, paddle bits and Forstner bits
- Various screwdriving jobs
- Use of hole saws (up to 68 mm diameter)
- Driving large-diameter wood screws
For approval or certificate information, please see individual items.
