TE 2-22 Cordless rotary hammer

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 30,916.20

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.3 kg

Optimum hammer drilling range

4 - 12 mm

Single impact energy

1.5 J

Hammer drilling diameter range

4 - 22 mm

Hammer drilling RPM

1090 rpm

Full hammering frequency

4860 impacts/minute

Functionality

Reverse mode, LED working light

Triaxial vibration value for hammer drilling into concrete (ah,HD)

13.7 m/s² ¹

A-weighted emission sound power level

103 dB (A) ²

A-weighted emission sound pressure level

95 dB (A) ³

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (EN) [ 738.6 KB ]

Download

Features & Applications

Features

Unbeatable grip and agility – TE 2-22 is our lightest and slimmest cordless rotary hammer, with improved in-line pistol grip designed to help you work in cramped quarters without the muscle strain
Virtually dust-free drilling – when used with a Hilti DRS-D or DRS-S dust removal attachment or hollow drill bit and compatible Hilti vacuum cleaner
Safer work at heights – use the included belt hook and optional tool tether to free your hands without compromising on tool drop protection
Improved drilling precision – LED light provides better visibility of your work area, and the enhanced grip provides more comfortable control
On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

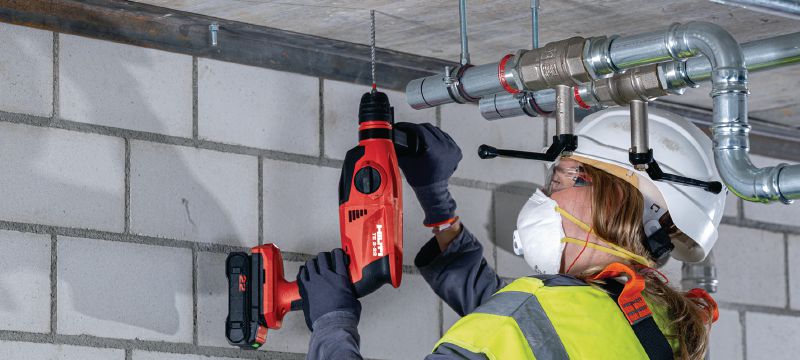

Drilling into concrete and masonry, especially overhead or in tight spaces
Interior finishing – installing drywall track and suspended ceilings
Metal fabrication – fastening metal fixtures to concrete, such as handrails, staircases, sun blinds and safety barriers
Electrical and telecom – installing cables, switchgear, outlet boxes and lights
Any smaller drilling jobs, when cordless convenience and comfortable handling is more efficient overall than minimising the time-per-fastening

For approval or certificate information, please see individual items.
