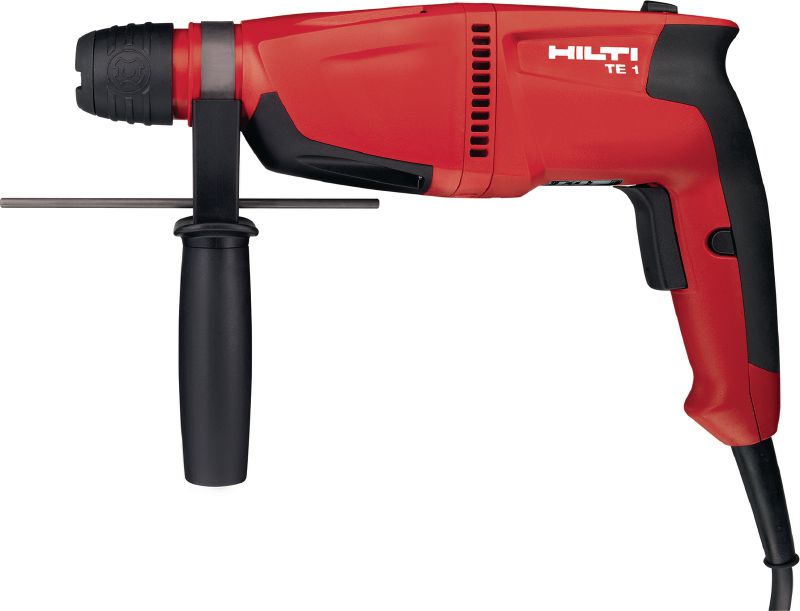

TE 1 Rotary hammer
Compact and light-weight single-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for drilling in concrete
- Weight according to EPTA-Procedure 01/2003 without battery: 2.4 kg
- Optimum hammer drilling range: 4 - 12 mm
- Single impact energy: 1.5 J
Choose options
Pack size
- 1
Quantity
Packs
Total Pieces
1
Discounted net
From INR 15,618.40
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
2.4 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.5 J
Working mode
Hammer drilling
Hammer drilling diameter range
4 - 16 mm
Hammer drilling RPM
930 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.6 m/s² 1
A-weighted emission sound pressure level
92 dB (A) 2
Dimensions (LxWxH)
330 x 79 x 203 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- One-mode SDS Plus (TE-C) rotary hammer (hammer drilling)
- Sturdy motor with high load rating for maximum reliability
- High comfort due to compact size, light weight and "TE-C Click" chuck
- Electronic switch for precise hole-starting
- Lock-on button for continuous use
Applications

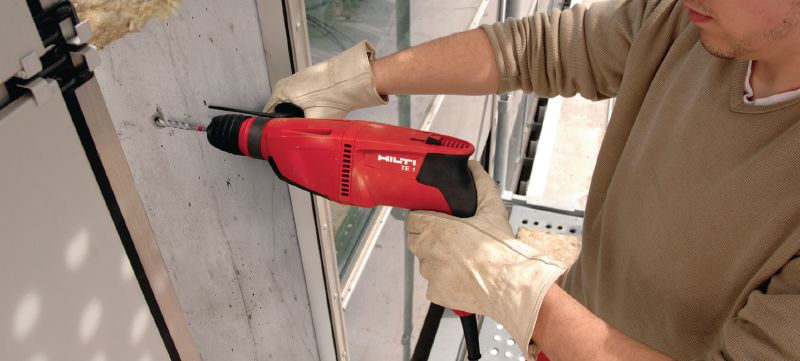

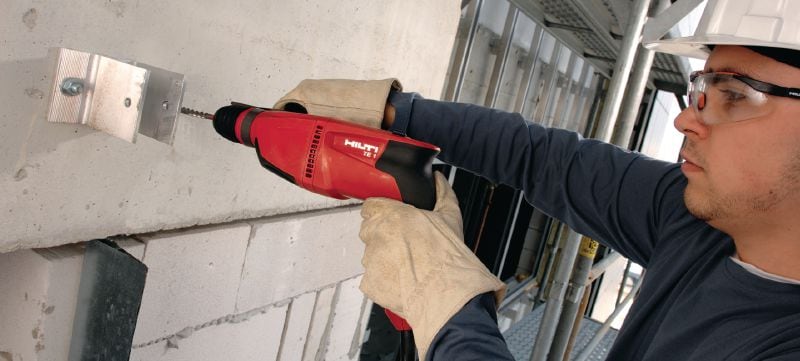

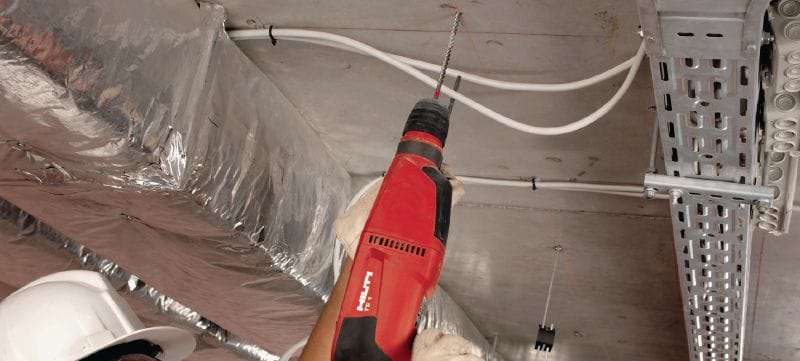

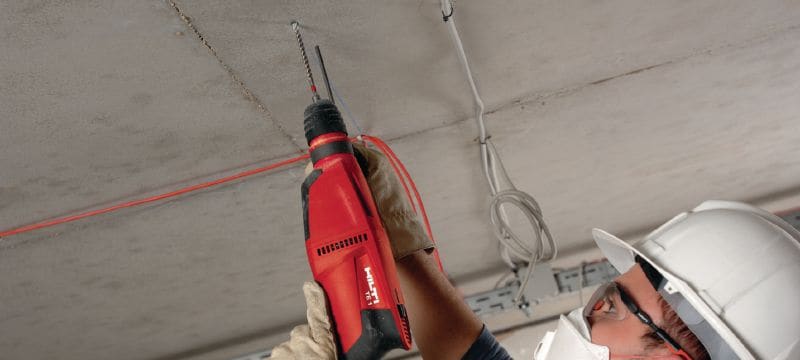

- Everyday hammer drilling in concrete, masonry and natural stone
- Reverse feature assists in the removal of stuck drill bits
For approval or certificate information, please see individual items.
