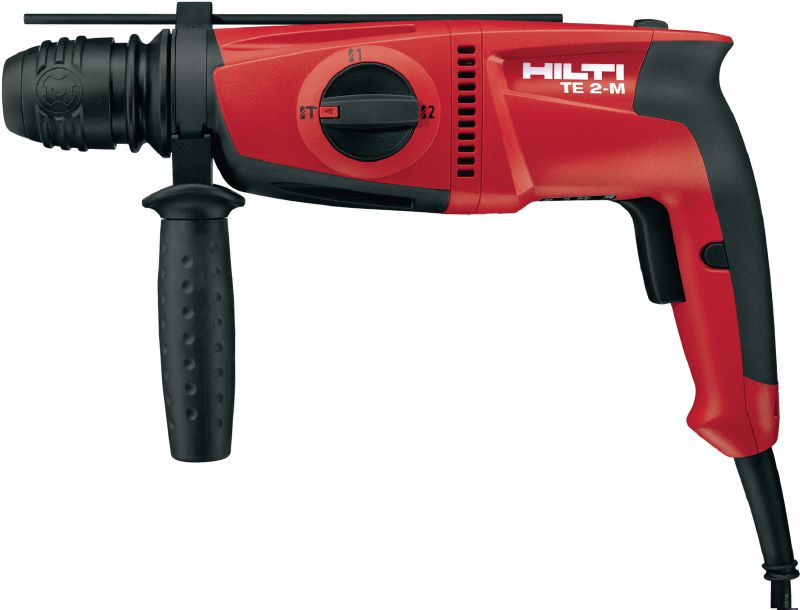

Compact, multi-purpose triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling

  • Weight according to EPTA-Procedure 01/2003 without battery: 2.9 kg
  • Optimum hammer drilling range: 4 - 12 mm
  • Single impact energy: 1.8 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
2.9 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.8 J
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
4 - 22 mm
Hammer drilling RPM
1200 rpm
Full hammering frequency
4600 impacts/minute
Functionality
2nd gear for drilling in metal, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.1 m/s² 1
Triaxial vibration for chiselling in concrete
13.5 m/s² 2
A-weighted emission sound pressure level
91 dB (A) 3
Dimensions (LxWxH)
360 x 89 x 203 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Three-mode SDS Plus (TE-C) rotary hammer – for hammer drilling plus 2 gears for rotary-only drilling
  • Sturdy motor with high load rating for maximum reliability
  • Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
  • Electronic switch for precise hole-starting
  • 360° side handle adjusts easily for preference or for use in tight spaces

Applications

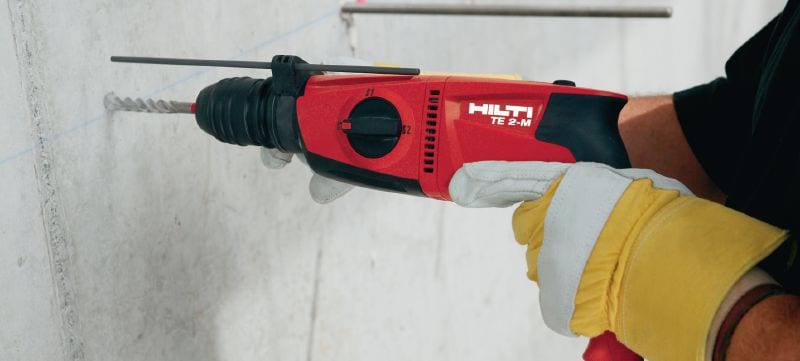

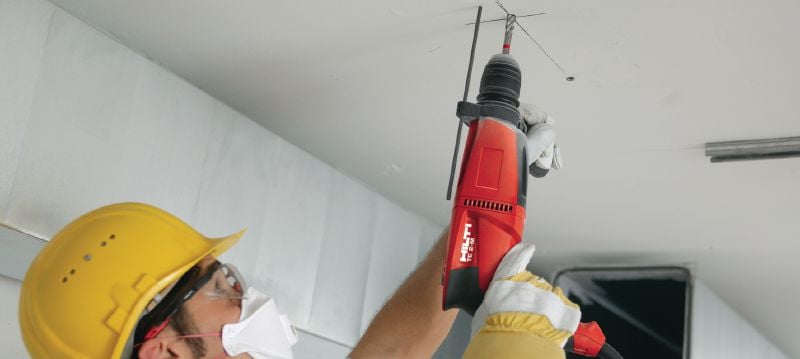

  • Everyday hammer drilling in concrete, masonry and natural stone
  • 2 gears for optimal drilling in steel, wood and plastics using optional Quick-Release Chuck
  • Driving screws using the optional bit holder
  • Reverse feature assists in the removal of stuck drill bits

For approval or certificate information, please see individual items.
