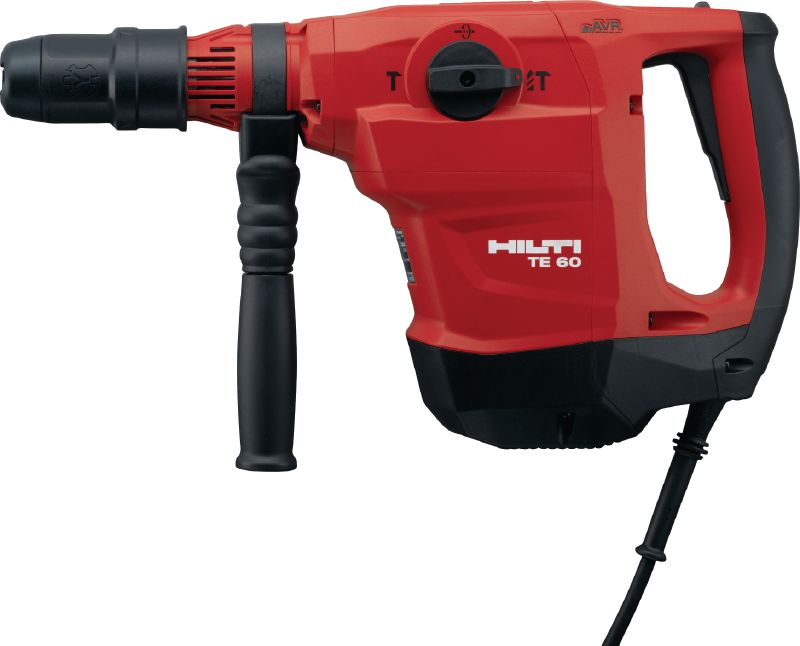

TE 60-AVR Rotary hammer

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR)

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

6.8 kg

Weight class

6 kg

Single impact energy

7.8 J

Hammer drilling diameter range

12 - 100 mm

Optimum hammer drilling range

18 - 37 mm

Hammer drilling RPM

340 rpm

Full hammering frequency

3300 impacts/minute

Functionality

Active Vibration Reduction (AVR), Chiselling

Triaxial vibration value for hammer drilling into concrete (ah,HD)

10.5 m/s² ¹

Dust removal system available

TE DRS-Y, TE DRS-D, TE DRS-BK

Triaxial vibration for chiselling in concrete

9.1 m/s² ²

Rated input power

1350 W

Dimensions (LxWxH)

486 x 115 x 273 mm

A-weighted emission sound power level

107 dB (A) ³

A-weighted emission sound pressure level

99 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

High versatility for a wide range of drilling and chiselling applications
Exceptionally high performance-to-weight-ratio
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

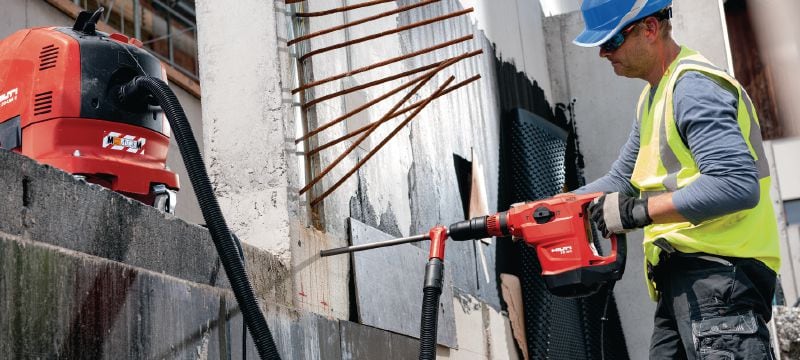

Optional DRS-Y dust removal system collects up to 95% of dust
Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

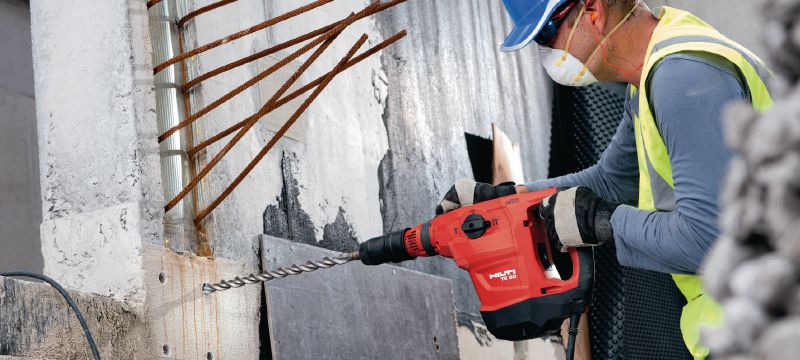

Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)
Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3 1/8")
Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter
