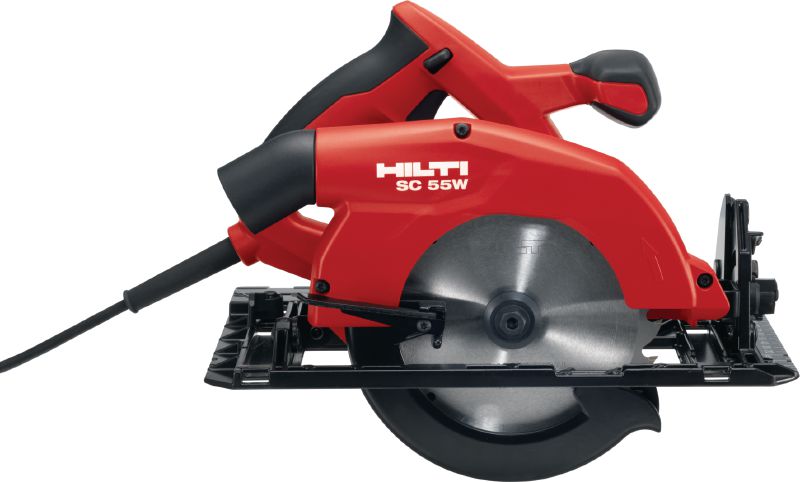

SC 55W Circular saw

Circular saw for straight cuts up to 55 mm depth

  • Max. cutting depth: 55 mm
  • Blade diameter - range: 160 - 165 mm
  • Cutting depth at 45 degrees: 41 mm

Technical Data

Max. cutting depth
55 mm
Blade diameter - range
160 - 165 mm
Cutting depth at 45 degrees
41 mm
No load RPM
gear 1: 5500 rpm
Base material
Wood, Sandwich panel
Guiding rail compatibility
Yes
A-weighted emission sound pressure level
91 dB (A) 1
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Very robust circular saw with high cutting feed rate, for heavy-duty sawing
  • Preselection of cutting angle to 22.5, 45 or 50 degrees
  • Rip and cross cuts up to 55 mm cutting depth, compatible with Hilti guide rails and vacuum cleaners
  • Full guide rail compatibility – cut precise 45 and 90 degree angles using this hand-held circular saw
  • Fast blade stop

Applications

  • Rip and cross cuts at depths of up to 55 mm
  • Bevel and mitre cuts, with or without guide rail
  • General construction: cutting formwork board, OSB, plywood, chipboard, plastics, battens
  • Interior finishing: cutting plasterboard panel (gypsum board), cement board, MDF and HDF
  • Electrical: horizontal wall cuts, cable trays

For approval or certificate information, please see individual items.
