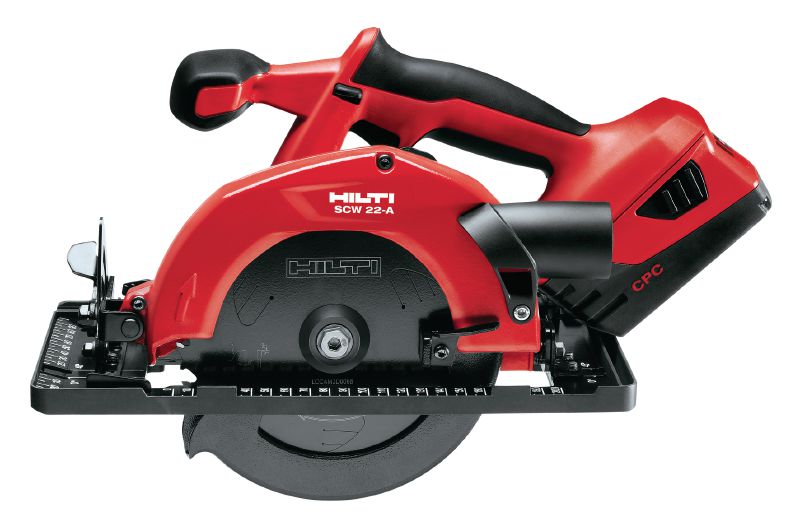

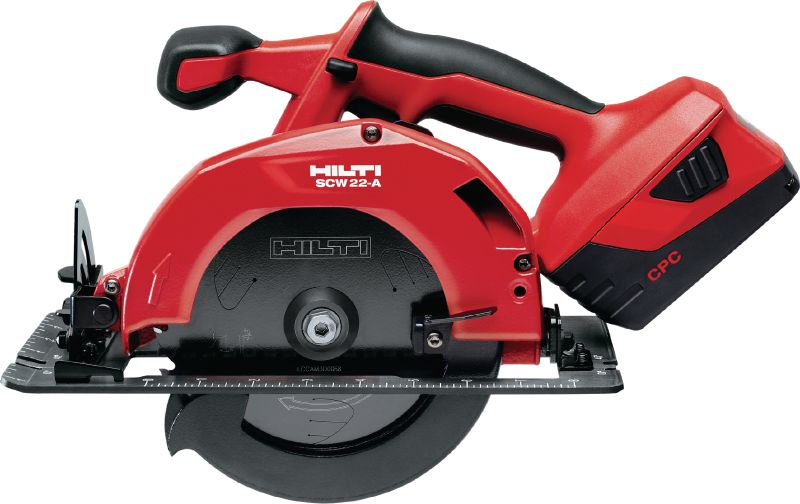

SCW 22-A Cordless circular saw

Cordless circular saw SCW 22-A case #423165

Configurator
Technical Data
Documents
Features & Applications
Related Products
SCW 22-A without battery pack
46593.tif
46594.tif

22V cordless circular saw with optimised power-to-weight ratio for straight cuts up to 57 mm depth

  • Max. cutting depth: 57 mm
  • Blade diameter: 165 mm
  • Base material: Wood, Sandwich panel

Choose options

Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 39,332.30
INR 39,332.30 / 1 each

Technical Data

Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Wood, Sandwich panel
No load RPM
gear 1: 4000 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
393 x 208 x 241 mm
Cutting depth at 45 degrees
42 mm
Max. bevel angle
50 °
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
1.2 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SCW 22-A (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese [ 7.7 MB ]

Features & Applications

Features

  • Compact and mobile – for cut-as-you-go work on the jobsite
  • Rapid blade stop and dust extraction for maximum safety
  • Low weight makes the circular saw more versatile and less tiring to use in any position
  • Suitable for use with the Hilti guide rail
  • Dust extraction

Applications

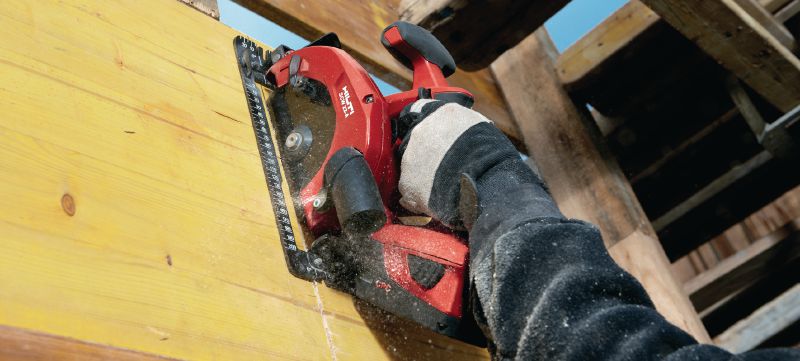

  • General construction – cutting formwork boards, OSB, plywood, chipboard, plastics, rafters and battens
  • Interior finishing – cutting plasterboard, cement board, MDF and HDF
  • Cutting formwork boards, planks, battens, OSB, chipboard, plywood sheets and plastics
  • Trimming and fitting wood and sheet materials
  • Ripping and crosscutting as well as bevel and mitre cuts
