Nuron

NCV 10-22 Backpack concrete vibrator

Configurator
Technical Data
Documents
Features & Applications
Related Products
L131319 (2854232)
L131317 (2854221)
L131389 (2859297)
L147457_HNA_cropped (2818531)
L147450_cropped (2809439)
L147774_cropped (2859802)

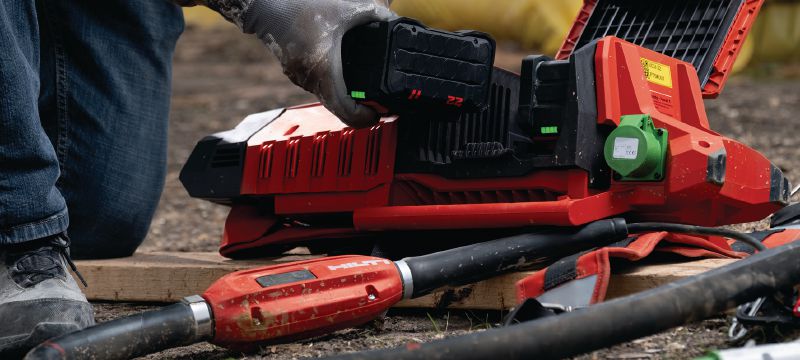

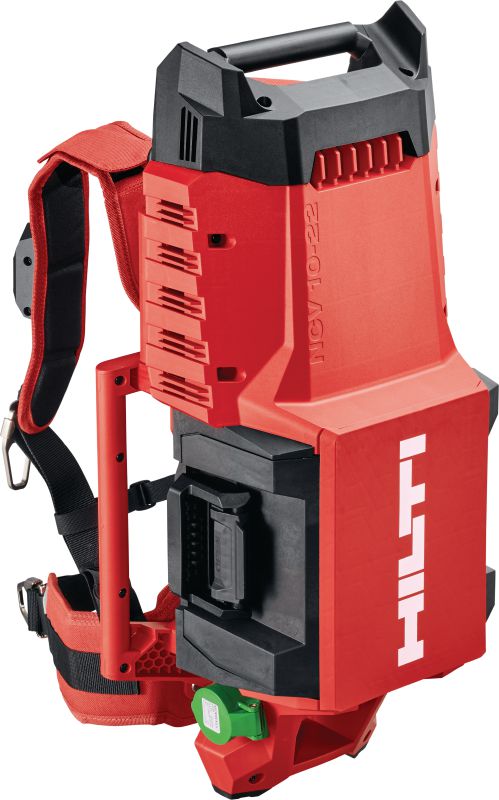

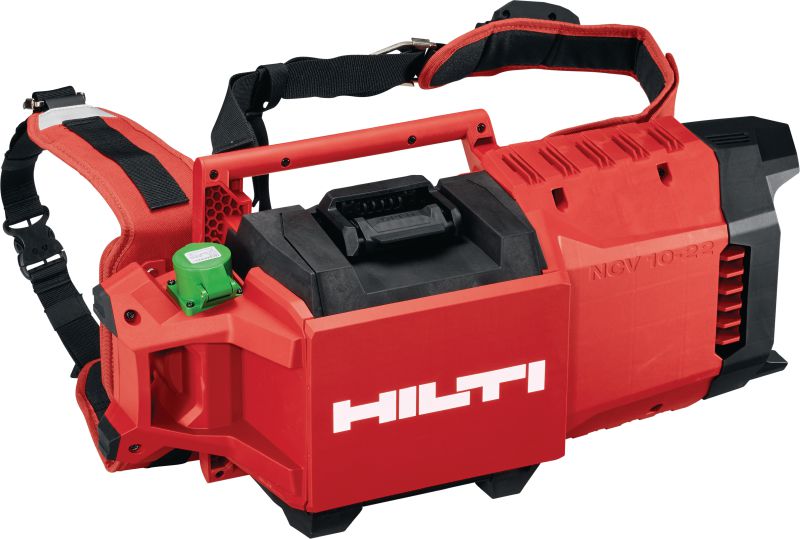

Battery-powered concrete vibrator backpack with brushless motor for compaction of walls, slabs and foundations (Nuron battery platform)

  • Dimensions (LxWxH): 320 x 218 x 666 mm
  • Weight: 8.28 kg
  • IP protection class: IP 67 (NCV 10-22 whips), IP X4 (NCV 10-22)

Customers also searched for Concrete vibrator, cordless concrete vibrator, concrete compaction or high frequency vibrator.

Choose options

Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 165,217.50

Technical Data

Dimensions (LxWxH)
320 x 218 x 666 mm
Weight
8.28 kg
IP protection class
IP 67 (NCV 10-22 whips), IP X4 (NCV 10-22)
Rated power
1000 W
Rated voltage
21.6 V

Documents

Brochure
Operating Instruction
Material safety datasheet
Battery Recycling Information
pdf NCV 10-22 Whip Selector_EU [ 585.7 KB ]
pdf NCV 10-22 Whip Selector for HNA [ 585.3 KB ]

Features & Applications

Features

  • Safer jobsites – eliminate power cords when compacting concrete by upgrading to a battery-powered concrete vibrator
  • Consistency and performance – engineered to help you achieve comparable results to a stationary high-frequency internal concrete vibrator
  • Longer-lasting Nuron batteries – consolidate up to 5 lorry loads of concrete (37.5 m3) on one pair of B 22-170 batteries

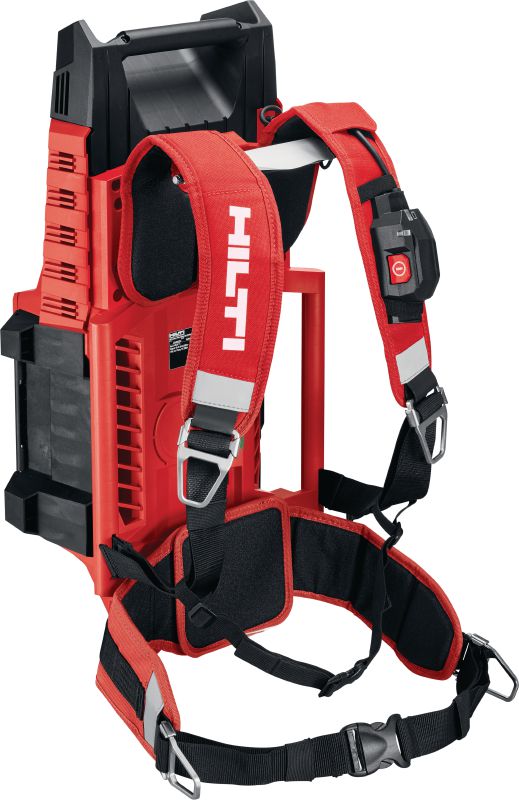

  • Unbeatable mobility – a lower-weight and ergonomic backpack help to minimise both set-up time and interruptions while working
  • Highly versatile concrete vibrator – choose from 9 different whips (sold separately) to best suit the volume of concrete to be compacted

Applications

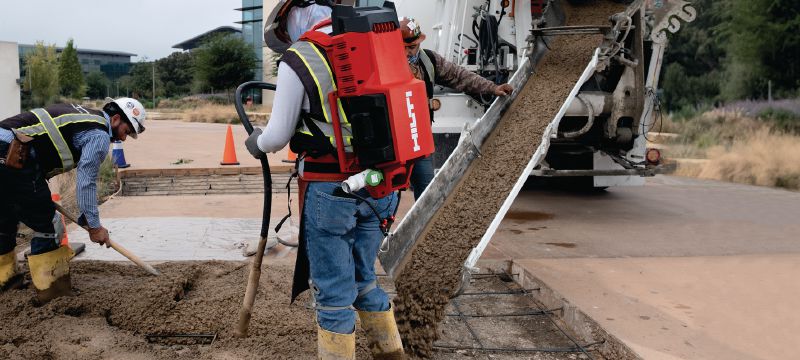

  • Internal concrete compaction for decks and walls to remove trapped air bubbles and increase the density of concrete
  • Consolidating footings and foundations
  • Concrete compaction for pre-cast garden elements

For approval or certificate information, please see individual items.
