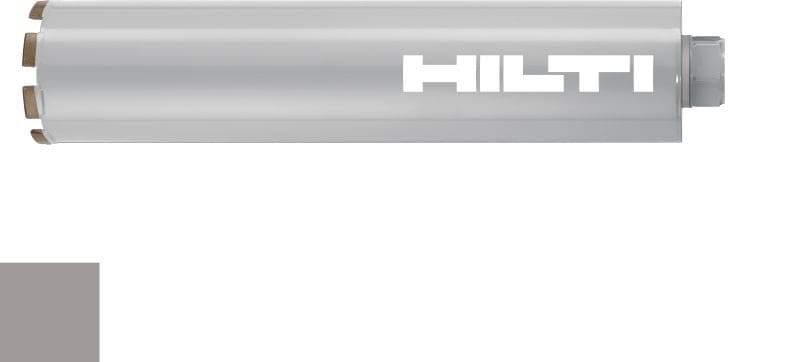

P-U core bit
Standard 430 mm length core bit for coring in all types of concrete – for all tools
- For use with: DD 130, DD 150-U, DD 160, DD 200, DD 250-CA, DD 350-CA
- Base materials: Concrete
- Drilling mode: Rig-mounted
standard
Choose options
Diameter
- 37 mm
- 42 mm
- 47 mm
- 52 mm
- 62 mm
- 77 mm
- 102 mm
- 112 mm
- 127 mm
- 152 mm
- 162 mm
- 202 mm
- 250 mm
- 300 mm
Working length
- 430 mm
- 1000 mm
Pack size
- 1
Quantity
Packs
Total Pieces
1
Discounted net
From INR 6,909.00
Technical Data
For use with
DD 130, DD 150-U, DD 160, DD 200, DD 250-CA, DD 350-CA
Base materials
Concrete
Drilling mode
Rig-mounted
Wet or dry operation
Wet
Change module
Yes
Laser-welded segments
No
Product class
Standard
Working length
430 mm
Segment height
10 mm
Features & Applications
Features
- High drilling speed – designed for high-speed drilling with all diamond drilling tools and now even faster drilling with light diamond drilling tools (less than 2.5 kW)
- Long-lasting – uses 10 mm high diamond segments, helping you to get more done with the same core bit
- More robust – built using durable CD welding to help withstand your toughest jobsite conditions
- Versatile – compatible with diamond coring machines of all power classes
- Less segment polishing – new design helps reduce segment polishing to keep coring speed constant throughout the core bit's lifetime
Applications
- BI quick-release connection end for low power Hilti diamond drilling tools (less than 2.5 kW), Hilti BI shank BL quick-release connection end for high power Hilti diamond drilling tools (more than 2.5 kW), Hilti BL shank BS (1-¼") universal connection end for Hilti and competition diamond drilling tools

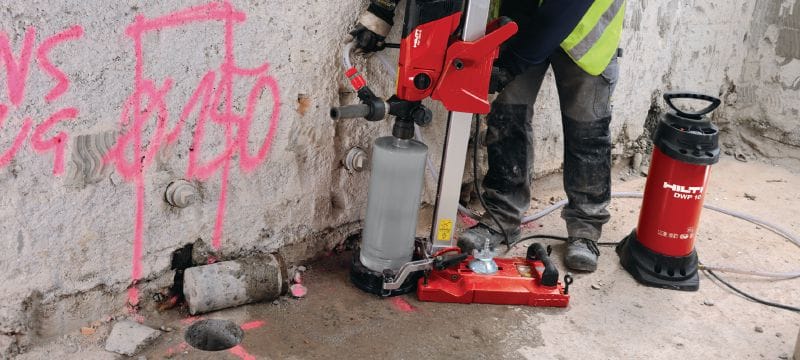

- Rig-based wet coring in all types of concrete
For approval or certificate information, please see individual items.
