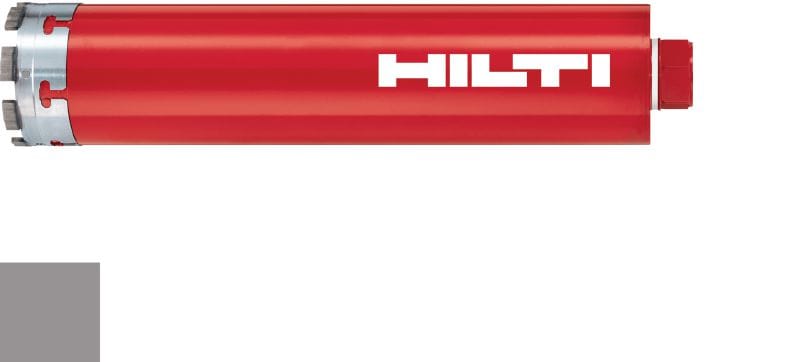

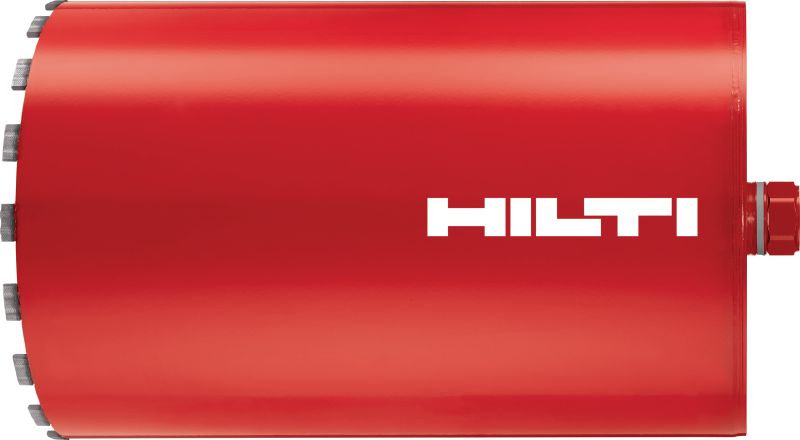

SPX-H core bit

L097734_gray_colorcode (180851)
L097745_gray (180881)
L097742_gray (180870)
L094398_cropped (181088)
L084330.tiff (81174)
L084294_V2 (112002)

Ultimate core bit for coring in all types of concrete – for ≥2.5 kW tools (without connection end)

  • For use with: DD 200, DD 250-CA, DD 350-CA, DD 500-CA
  • Base materials: Concrete
  • Drilling mode: Rig-mounted

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

For use with
DD 200, DD 250-CA, DD 350-CA, DD 500-CA
Base materials
Concrete
Drilling mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
Yes (52-202 mm)
Laser-welded segments
Yes
Connection end
BL (Hilti), BU (Hilti), BS (1-1/4 in), BX (Pixie)
Segment height
10 mm

Features & Applications

Features

  • Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
  • Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
  • Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
  • Free your stuck core bit from the base material in less time and with less damage than when removing conventional core bits (X-Change module)

Applications

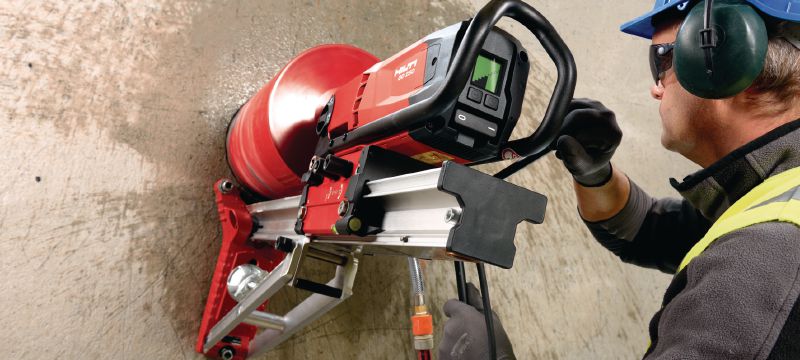

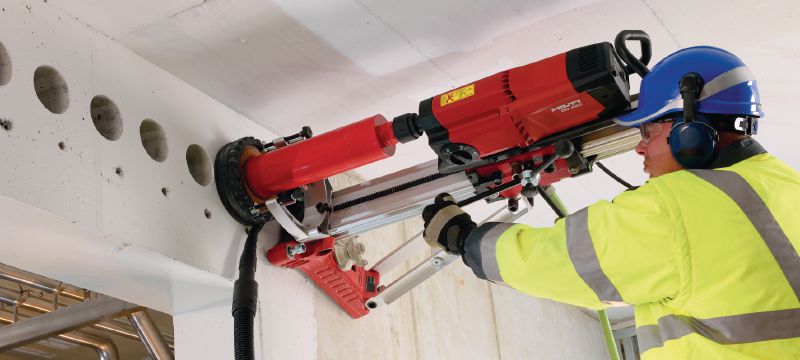

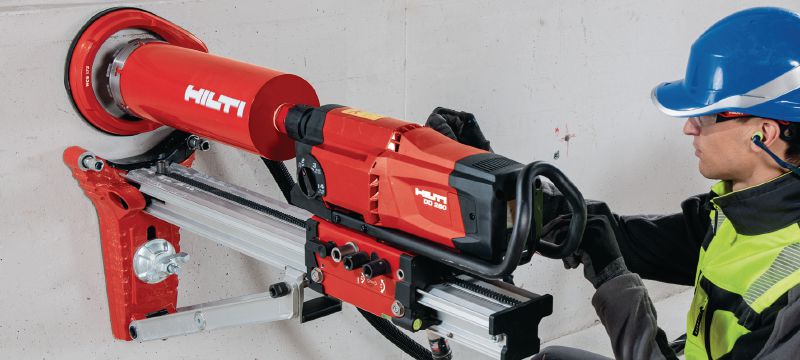

  • Rig-based wet coring in all types of concrete

For approval or certificate information, please see individual items.
