Dear User,
If I understand your question correctly, you want to apply the load in negative direction or eccentrically.

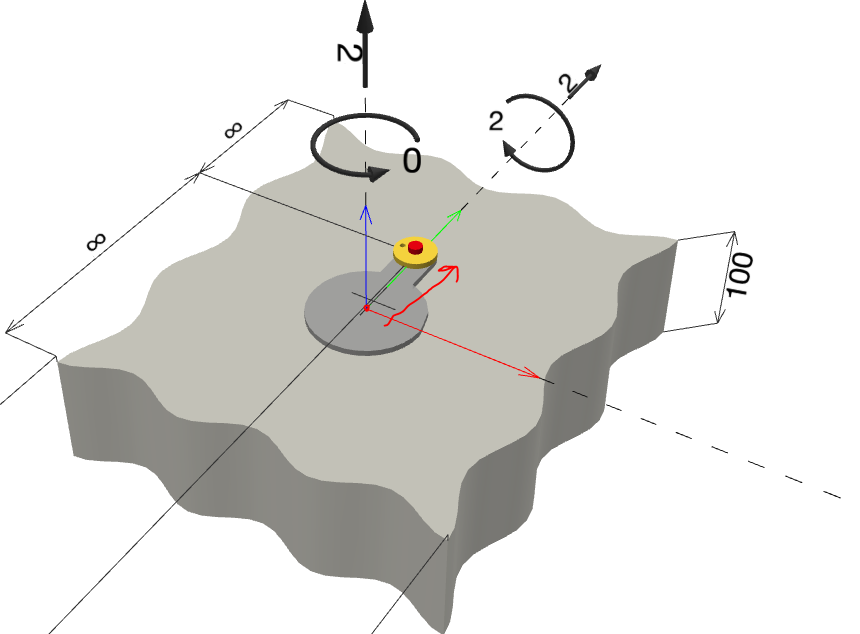

- Negative direction load can be applied by including "-ve" sign before giving magnitude input. (please refer the attached picture with fields marked as [1])
- The eccentricity can be provided in both x and y direction to the profile and the same will be applicable to the load point. (please refer the attached picture with fields marked as [2])
- If you are not able to see any of the dimensions, please select the "eye icon" as shown in attached picture and marked as [3].
Hope this helps, please let us know if you need more help from our side. Thanks!
