Seismic design for Hilti Bolts

Question

Posted by Manojkumar Rabout 2 years ago

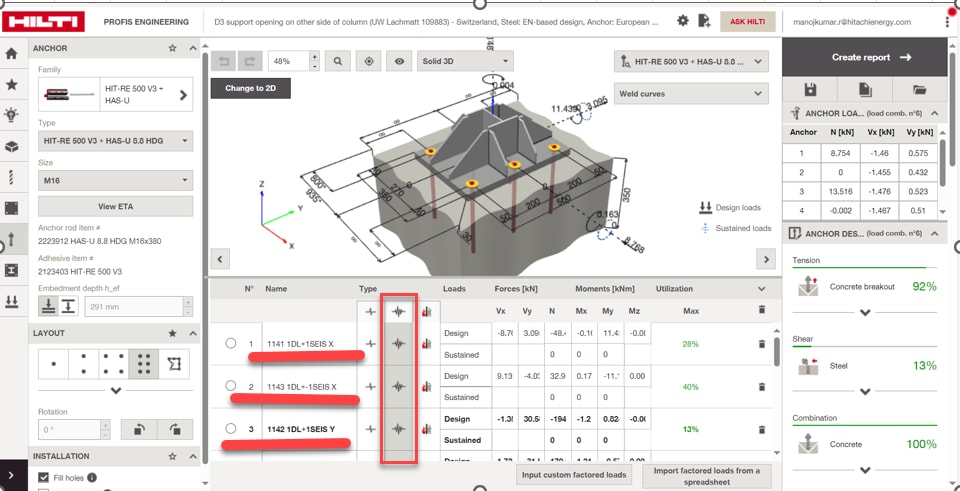

I am performing the hilti analysis for electrical substation GIS supporting structures (Steel structures). I have used the factored load case to take the reaction force and to design hilti, even though i have used factored load case should i consider and select the seismic case for the Load case that are governed by seismic.

Selecting seismic condition,seismic hilti design

Hilti Question.png208.82 KB

1 Reply

Posted by Kaushal Aggarwalabout 2 years ago

Hi Manoj Kumar,

As per ETA, if the seismic load (both tension and shear) is less than or equal to 20% of the total design load then design can be done using static condition in Profis Engineering.

Hope this helps.

seismic design of anchors

seismic question.png36.27 KB
