Product line

HIT-V-R

Standard anchor rod for injection (A4 SS)

Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.

Key technical data

Material, corrosion: Stainless steel, A4
Base materials: Concrete (cracked), Concrete (uncracked), Masonry (solid)
PROFIS software: Yes

More technical data

Features & Applications

Features

Flexible embedment depths for maximum performance and high cost-efficiency
Productivity: use of optimal rod length and diameter saves time and money with every fastening
Universality: simplifies your anchor rod inventory by enabling use of the same rod for various applications
Approved system (ETA) for flexible embedment depth for M8 to M30 rods
Head marking: enables post-installation check for correct anchor setting – the head marking shows rod length and steel grade

Applications

Suitable for fastenings in concrete and masonry in combination with the relevant Hilti HIT injectable adhesive mortar
Applications where flexible embedment depths are required

Products in this group are generally suitable for seismic loading.

Products in this group have a published fire resistance rating.

For approval or certificate information, please see individual items.

Product Selection & Prices

Back to results (2 of 2)

Filter products by these criteria

Anchor size

Anchor length

Define your sorting criteria

Item number	Anchor size	Anchor length	Packaging unit	Price / Unit	Quantity
Anchor rod HIT-V-R M8x150 Item number 387076 More details 1x Anchor rod HIT-V-R M8x150 assy	Anchor size M8 Anchor length 150 mm Packaging unit 20 Piece	Anchor length 150 mm	Packaging unit 20 Piece	Price / Unit INR 4,761.60 / 20 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M8X110 Item number 2057879 More details 1x Anchor rod HIT-V-R M8x110 assy	Anchor size M8 Anchor length Packaging unit 20 Piece	Anchor length	Packaging unit 20 Piece	Price / Unit INR 4,032.80 / 20 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R M10x95 Item number 387077 More details 1x Anchor rod HIT-V-R M10x95 assy	Anchor size M10 Anchor length 95 mm Packaging unit 10 Piece	Anchor length 95 mm	Packaging unit 10 Piece	Price / Unit INR 2,084.80 / 10 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M10X115 Item number 2057880 More details 1x Anchor rod HIT-V-R M10x115 assy	Anchor size M10 Anchor length Packaging unit 10 Piece	Anchor length	Packaging unit 10 Piece	Price / Unit INR 2,521.60 / 10 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R M12X120 Item number 3505879 More details	Anchor size M12 Anchor length 120 mm Packaging unit 10 Piece	Anchor length 120 mm	Packaging unit 10 Piece	Price / Unit INR 3,428.00 / 10 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M12X150 Item number 2057881 More details 1x Anchor rod HIT-V-R M12x150 assy	Anchor size M12 Anchor length Packaging unit 10 Piece	Anchor length	Packaging unit 10 Piece	Price / Unit INR 4,203.20 / 10 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R M16x300 Item number 387086 More details 1x Anchor rod HIT-V-R M16x300 assy	Anchor size M16 Anchor length 300 mm Packaging unit 5 Piece	Anchor length 300 mm	Packaging unit 5 Piece	Price / Unit INR 6,119.20 / 5 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M16X150 Item number 2057882 More details 1x Anchor rod HIT-V-R M16x150 assy	Anchor size M16 Anchor length Packaging unit 5 Piece	Anchor length	Packaging unit 5 Piece	Price / Unit INR 4,453.60 / 5 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M16X200 Item number 2057883 More details 1x Anchor rod HIT-V-R M16x200 assy	Anchor size M16 Anchor length Packaging unit 5 Piece	Anchor length	Packaging unit 5 Piece	Price / Unit INR 4,500.80 / 5 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R M20x380 Item number 387089 More details 1x Anchor rod HIT-V-R M20x380 assy	Anchor size M20 Anchor length 380 mm Packaging unit 10 Piece	Anchor length 380 mm	Packaging unit 10 Piece	Price / Unit INR 27,312.00 / 10 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M20X240 Item number 2057884 More details 1x Anchor rod HIT-V-R M20x240 assy	Anchor size M20 Anchor length Packaging unit 5 Piece	Anchor length	Packaging unit 5 Piece	Price / Unit INR 7,440.80 / 5 each Ordering & product details	Quantity Check availability
Anchor rod HIT-V-R-M24X300 Item number 2057885 More details 1x Anchor rod HIT-V-R M24x300 assy	Anchor size M24 Anchor length Packaging unit 5 Piece	Anchor length	Packaging unit 5 Piece	Price / Unit INR 14,076.80 / 5 each Ordering & product details	Quantity Check availability

Show all Show less

Technical Data

Documents & Videos

Consulting & Support

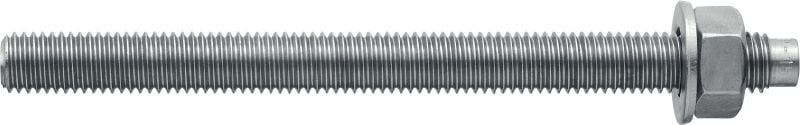

HIT-V-R

Standard anchor rod for injection (A4 SS)

Features & Applications

12 of 12 items (variants & sets)All prices discounted net
