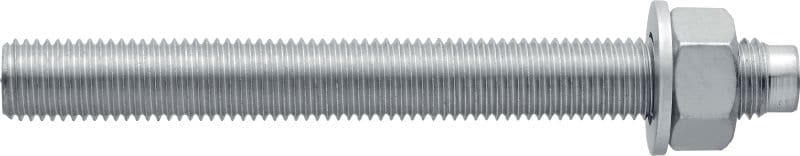

High-performance anchor rod for injectable hybrid/epoxy anchors (8.8 carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Choose options

Anchor size
  • M12
  • M16
  • M20
  • M24
Anchor length
  • 130 mm
  • 170 mm
  • 180 mm
  • 190 mm
  • 210 mm
  • 220 mm
  • 250 mm
  • 260 mm
  • 300 mm
  • 310 mm
  • 400 mm
  • 500 mm
Material composition
  • Steel, 8.8 grade, zinc-plated (min. 5 µm)
Head configuration
  • Externally threaded
Pack size
  • 5
  • 10
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 2,940.40

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS software
Yes
Approvals / test reports
ETA, Fire, Seismic
Type of fastening
Pre-fastening, Through-fastening

Documents

Features & Applications

Features

  • Flexible embedment depths for maximum performance and high cost-efficiency
  • Productivity: use of optimal rod length and diameter helps to save time and money with every fastening
  • Universality: simplifies your anchor rod inventory by enabling use of the same rod for various applications
  • Approved system (ETA) with flexible embedment depth for M8 to M30 rods
  • Head marking: enables post-installation check for anchor setting – the head marking shows the rod length and steel grade

Applications

  • Suitable for fastenings in concrete and masonry in combination with the relevant Hilti HIT injection mortar
  • Applications where flexible embedment depths are required

For approval or certificate information, please see individual items.
