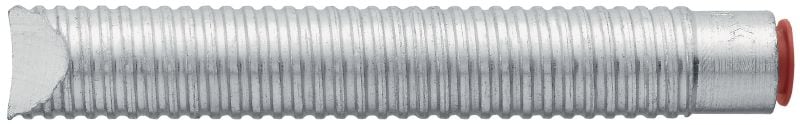

HIS-N Internally threaded sleeve

Configurator
Technical Data
Documents
Features & Applications
Related Products
Sleeve, internal threaded sleeve, female sleeve, HIS-N, HIS, HISN

High-performance internally threaded insert for capsule and injectable hybrid/epoxy anchors (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Material composition
  • Steel, zinc-plated (min. 5 µm)
Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
Anchor length
  • 90 mm
  • 110 mm
  • 125 mm
  • 170 mm
  • 205 mm
Head configuration
  • Inner thread
Pack size
  • 5
  • 10
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 3,315.05

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Seismic
Type of fastening
Pre-fastening

Documents

Approval document
Brochure
Instruction for use
pdf ETA 05/0255 for HVU adhesive capsules (ETAG 001-05, Option 7), German, English, Polish [ 12.3 MB ]
pdf ETA_11/0354_HIT_CT_1_092020, English [ 868.2 KB ]
pdf ETA-12/0084_HIT-HY-200-R_Anchor_EC2&TR055_50years_082019, English, German [ 3.4 MB ]
pdf ETA_16/0515_HVU2_capsule_092023_ML, English, German, Polish [ 5.6 MB ]
pdf ETA-19/0601_HIT-HY 200-R V3_Anchor_EC2&TR055_100years_042021, English, German, Polish [ 8.9 MB ]

Features & Applications

Features

  • Internally threaded to allow flush installation and easy removal of bolts
  • Features a chisel tip to cut and mix the Hilti HVU2 capsule (to be installed using the HIS-S setting tool)
  • Designed for use in solid concrete with Hilti HVU2 capsules and various other Hilti injectable adhesive mortars

Applications

  • Suitable for internally-threaded fastenings in concrete in combination with various Hilti injectable adhesive mortars, HVU2 capsules and 8.8 grade steel anchor rods

For approval or certificate information, please see individual items.
