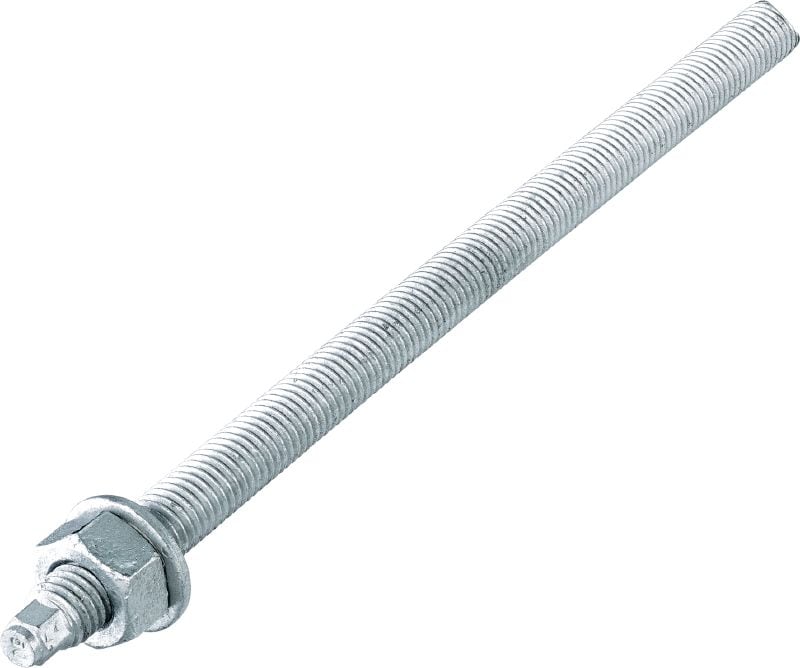

HAS-U 8.8 HDG Anchor rod

High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (8.8 carbon steel, hot-dip galvanised)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Environmental conditions: Indoor with temporary condensation, Outdoor (more than 1km to coast)
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Choose options

Anchor size
  • M12
  • M16
  • M20
  • M24
  • M30
Anchor length
  • 180 mm
  • 190 mm
  • 220 mm
  • 260 mm
  • 300 mm
  • 380 mm
  • 400 mm
Material composition
  • Carbon Steel 8.8 HDG
Head configuration
  • Hex head
Pack size
  • 4
  • 5
  • 10
  • 20
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 9,843.20

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Environmental conditions
Indoor with temporary condensation, Outdoor (more than 1km to coast)
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS software
Yes
Approvals / test reports
ETA

Documents

Features & Applications

Features

  • Head marking for easy verification of steel grade and rod length, even after installation
  • Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
  • Replaces previous HIT-V & HAS / HAS-E rods
  • Large range of anchor rod diameters (M6-M39)
  • Custom lengths and additional diameters up to M39 available upon request

Applications

  • Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems

For approval or certificate information, please see individual items.
