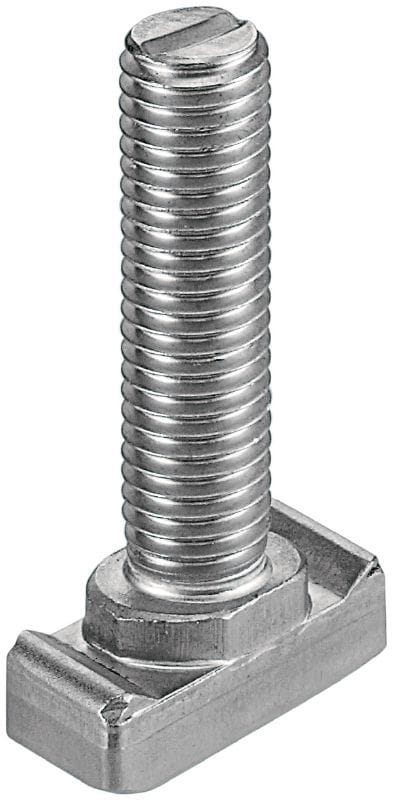

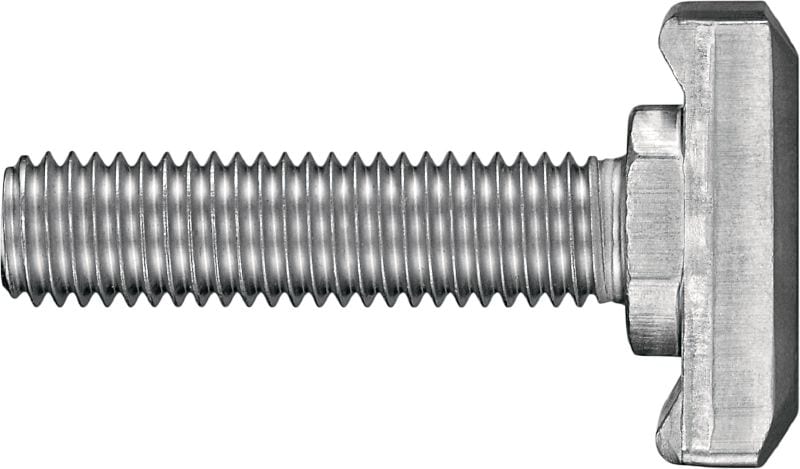

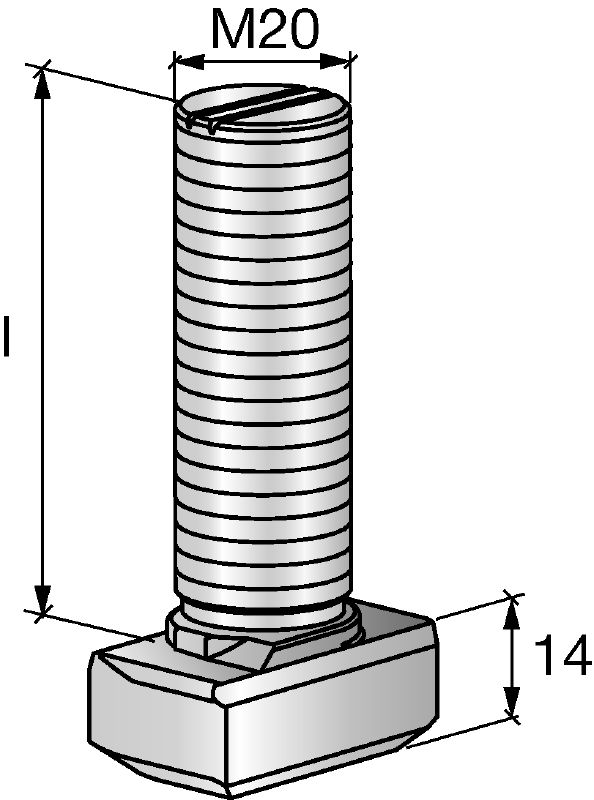

HBC-C-N Notched T-bolt

Notched T-bolts for tension, perpendicular and parallel shear loads (3D loads)

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • Compatible anchor channel: HAC-50, HAC-60
  • Channel profile: HAC-V 35, HAC-V 40, HAC-V 50, HAC-V 60, HAC-V 70, HAC-V Rebar XTS, HAC-V EDGE

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Compatible anchor channel
HAC-50, HAC-60
Channel profile
HAC-V 35, HAC-V 40, HAC-V 50, HAC-V 60, HAC-V 70, HAC-V Rebar XTS, HAC-V EDGE
PROFIS software
Yes

Documents

Features & Applications

Features

  • Notched T-bolts for reliable load transfer in all three dimensions
  • ICC-EC and ETA reports for longitudinal loads – providing transparent and reliable performance data
  • Evaluated for use in earthquake-resistant structures – ICC report describes the conditions for safe seismic design
  • High-productivity, high-speed installation solution – no drilling or welding needed
  • Universal fit – the same T-bolts can be used in HAC-40 to HAC-70 anchor channels to help simplify logistics and reduce the scope for errors

Applications

  • For use with HAC-40 to HAC-70 anchor channels

For approval or certificate information, please see individual items.
