HST4 Wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L153712 (4095650)
L149138_cropped (3287143)
L149181_cropped (3287123)
L149197_cropped (3287127)

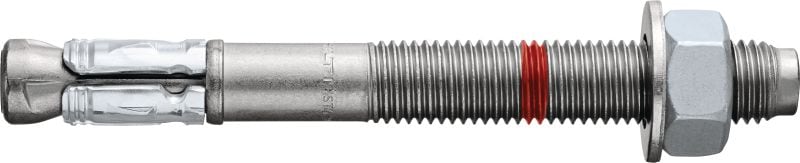

Our highest performing wedge expansion anchor for bearing high static and seismic loads in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Installation tools: TE 30-22 cordless rotary hammer, TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench

Customers also searched for Stud Anchor, Mechanical Anchor, Cracked Concrete Anchor or Value Engineered Anchor.

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
Anchor length
  • 50 mm
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm
  • 80 mm
  • 85 mm
  • 90 mm
  • 95 mm
  • 100 mm
  • 105 mm
  • 110 mm
  • 115 mm
  • 125 mm
  • 130 mm
  • 135 mm
  • 145 mm
  • 160 mm
  • 165 mm
  • 170 mm
  • 180 mm
  • 190 mm
  • 200 mm
  • 220 mm
  • 260 mm
Pack size
  • 5
  • 12
  • 20
  • 32
  • 40
  • 60
  • 72
  • 100
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 5,324.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Installation tools
TE 30-22 cordless rotary hammer, TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
PROFIS software
Yes

Documents

Approval document
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-21/0878_HST4_02/2024_ML, English, French, Polish, German [ 8.1 MB ]
pdf ETA-25/1251, HST4, steel to concrete connection, fatigue loading, ML, English, French [ 2.8 MB ]
pdf Certificate of Compliance_HST2 V3_HST 4, English [ 240.9 KB ]
pdf ER_0815_HST4(-R)_Evaluation_Report, English [ 1 MB ]

Features & Applications

Features

  • Innovative performance – our next-generation anchors offer improved concrete capacity and pull-out loads, allowing you to optimise baseplate size and anchor usage and get more value out of your materials
  • Unlock flexibility – anchors can be securely installed in shallow embedment depths for productivity and deep embedment depths for increased performance with flexible edge and spacing distances
  • Faster and easier installation – install our full range of anchors quickly with our Adaptive Torque compatible tools and without the need for borehole cleaning
  • Safer and more reliable – patented anti-spin expansion cone designed to eliminate spinning issues for a more reliable anchor installation
  • Cost-saving design – pair with PROFIS Engineering software to simplify the design of steel-concrete connections and reduce material costs

Applications

  • Fastening baseplates, handrails, façade systems, and mechanical, electrical or plumbing supports to concrete
  • Fastening in cracked and uncracked concrete required for building code compliance
  • Qualified to resist seismic actions and loads; for full coverage of ETA approved C1 and C2 critical connection requirements
  • Suitable for dry indoor use
  • Qualified to resist seismic actions and loads; for full coverage of ACI compatible design requirements

For approval or certificate information, please see individual items.
