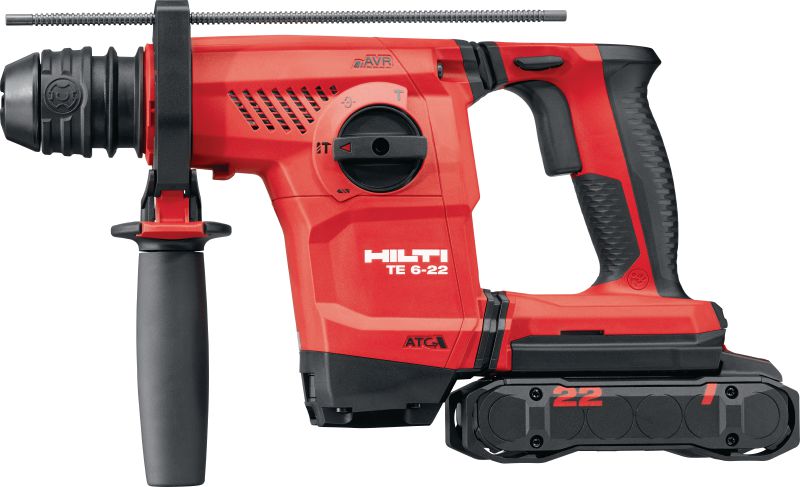

TE 6-22 Cordless rotary hammer

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 45,781.40

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.84 kg

Optimum hammer drilling range

6 - 18 mm

Single impact energy

2.6 J

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

1050 rpm

Full hammering frequency

5100 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch

Triaxial vibration value for hammer drilling into concrete (ah,HD)

10.7 m/s² ¹

Triaxial vibration for chiselling in concrete

5.5 m/s² ²

A-weighted emission sound power level

102 dB (A) ³

A-weighted emission sound pressure level

94 dB (A) ⁴

Dust removal system available

TE DRS-4/6, TE DRS-C, TE DRS-D

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (EN) [ 738.6 KB ]

Download

Features & Applications

Features

Performance, versatility and ergonomics in one – the TE 6-22 cordless rotary hammer has a wide drilling range, chiselling function and more comfort for all-day use
Helps reduce fatigue – now even lighter, helping you power through larger concrete drilling jobs
Improved handling – better tool balance and contoured grips so you can drill, chip or drive more comfortably in any position
Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit sticks
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

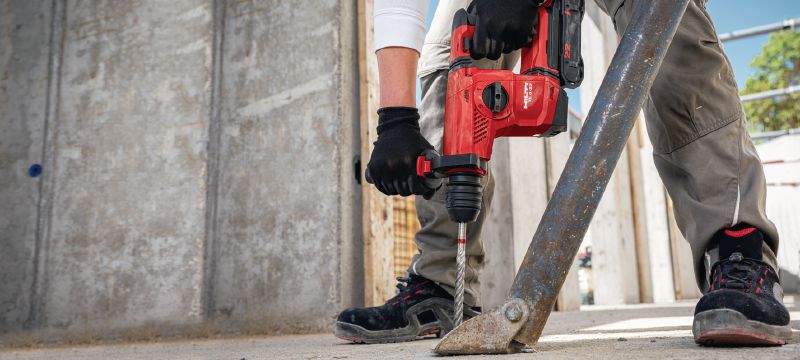

Drilling and hammer drilling in concrete and masonry
Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
Light-duty chiselling – such as tile scraping, channel cleaning or surface correction
Occasional drilling in wood and steel (with optional quick-release chuck)
Setting anchors and drop-in anchors (with optional TE-C bit holder)

For approval or certificate information, please see individual items.
