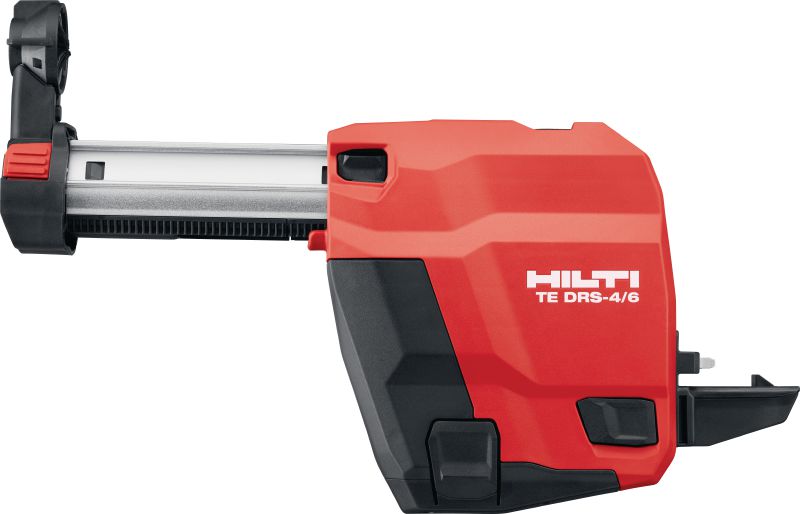

On-board vacuum system for convenient dust collection when drilling or chiselling with TE 4-22 and TE 6-22 cordless rotary hammers

  • For use with: TE 4-22, TE 6-22
  • Weight: 1 kg
  • Hammer drilling diameter range: 4 - 20 mm

Technical Data

For use with
TE 4-22, TE 6-22
Weight
1 kg
Hammer drilling diameter range
4 - 20 mm
Maximum drilling depth
110 mm
Need vacuum cleaner
No

Documents

Features & Applications

Features

  • Virtually dustless drilling – contributes to safer jobsites and better visibility of your work area by removing up to 97% of fine particles before they become airborne
  • Versatile – suitable for dust collection while drilling and chiselling, including many stop drill bits and setting tools for HDI/HKD drop-in anchors (optional extraction heads may be needed)
  • Customisable – two dust box sizes available, so you have the option to choose compactness or capacity depending on the job
  • M-Class dust filter with durable container
  • Faster repeat drilling – dust removal system includes depth gauge with ruler so you can easily drill to the required depth every time

Applications

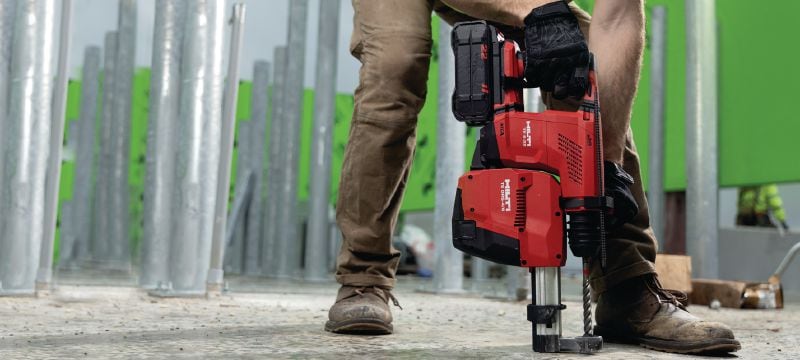

  • Virtually dust-free drilling and chiselling with TE 4-22 and TE 6-22 cordless rotary hammers
  • Approved for work involving asbestos according to TRGS 519 issued by the German Federal Institute for Occupational Safety and Health (BAUA)
  • OSHA 1926.1153 Table 1 compliant, virtually dust-free drilling with TE 4-22 and TE 6-22 cordless rotary hammers (HEPA filter included as standard)

For approval or certificate information, please see individual items.
