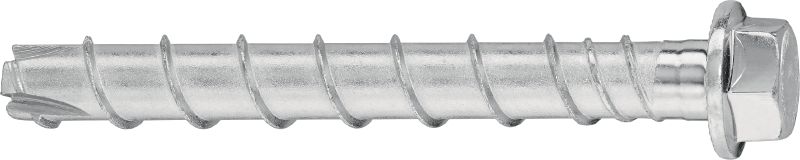

HUS3-H Screw anchor

Screw anchor HUS3-H 14x75 10/-/- #2079921

HUS3 screw anchor. The solution for contractors.

HUS3 screw anchor. Adjustability without load drop.

HUS3 screw anchor Performance in old concrete

HUS3 screw anchor. The specifier’s choice.

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, hex head)

Advantage 01: Higher productivity – less drilling and fewer operations than with conventional anchors
Advantage 02: Adjustable screw: ETA approval for adjustability
Advantage 03: ETA approval for use in cracked and uncracked concrete

Customers also searched for Undercut, HUS3, Countersunk, Flush finish or Cracked concrete.

Choose options

Anchor size

14 mm

Anchor length

75 mm

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 7,819.52

INR 488.72 / 1 each

Technical Data

Advantage 01

Higher productivity – less drilling and fewer operations than with conventional anchors

Advantage 02

Adjustable screw: ETA approval for adjustability

Advantage 03

ETA approval for use in cracked and uncracked concrete

Advantage 04

Seismic approval ETA C1 and C2 for whole portfolio

Advantage 05

abZ (DiBt) approval for reusability in fresh concrete for temporary applications – fully-approved reusable system with gauges for all available diameters (8,10, 14 mm)

Advantage 06

Reduced edge and spacing distances

Advantage 07

Three embedment depths for maximum design flexibility

Material, corrosion

Carbon steel, zinc-plated

Advantage 10

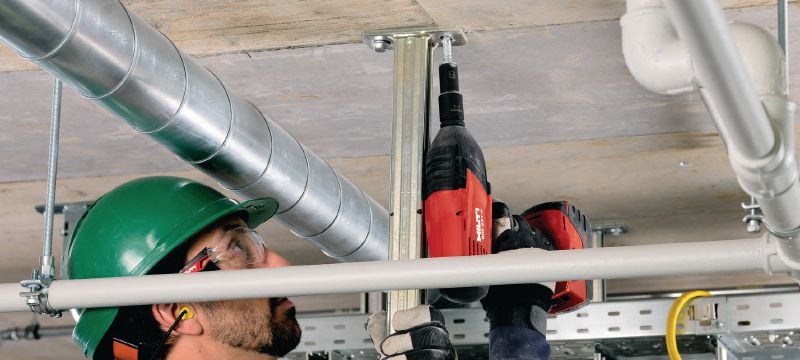

Ideal for overhead installation – greatly simplifies the work

Head configuration

Hex head

Socket size

21 mm

Drill bit diameter

14 mm

Approvals / test reports

ETA, Fire, Seismic

Reusable (and removable)

Yes

PROFIS software

Yes

Material composition

Steel, zinc-plated (min. 5 µm)

Tested/approved for diamond drilling

Documents

Features & Applications

Features

Higher productivity – less drilling and fewer operations than with conventional anchors
Hexagonal head with integrated washer for neat appearance when fastening through in-place parts
Ideal for overhead installation – greatly simplifies the work
Three embedment depths for maximum design flexibility
abZ (DiBt) approval for reusability in fresh concrete for temporary applications – fully-approved reusable system with gauges for all available diameters (8,10, 14 mm)
