S-MD 03ZW Self-drilling metal screws with racing tip

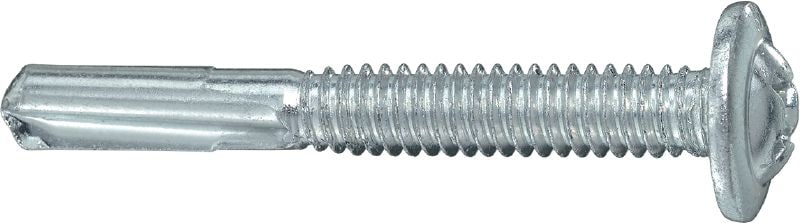

Self-drill screw S-MD03ZW 5,5x25 #2264946

Self-drilling wafer head screw (zinc-plated carbon steel) without washer for metal to metal fastening

  • Screw drive/recess type: PH #2
  • Base materials: Carbon steel
  • Environmental conditions: Dry indoor
standard

Choose options

Thickness fastened range MF
  • 2.6 - 12 mm
Drilling capacity range DC
  • 1.25 - 5.3 mm
Length
  • 25 mm
Pack size
  • 1000
Product options
Quantity
Pack
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 3,395.00

INR 3.40 / 1 each

Technical Data

Screw drive/recess type
PH #2
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
5.5 mm
Length
25 mm
Screw head diameter
11 mm
Product class
Standard
Washer type
none

Documents

Features & Applications

Features

  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevent point burn-out
  • Self-drilling screw for fast assembly in one step
  • For more reliable fastenings with defined load values

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Metal-to-metal connections

Consulting & Support

We will contact you to arrange a live demonstration at the earliest
