S-MD 51 Z Self-drilling metal screws

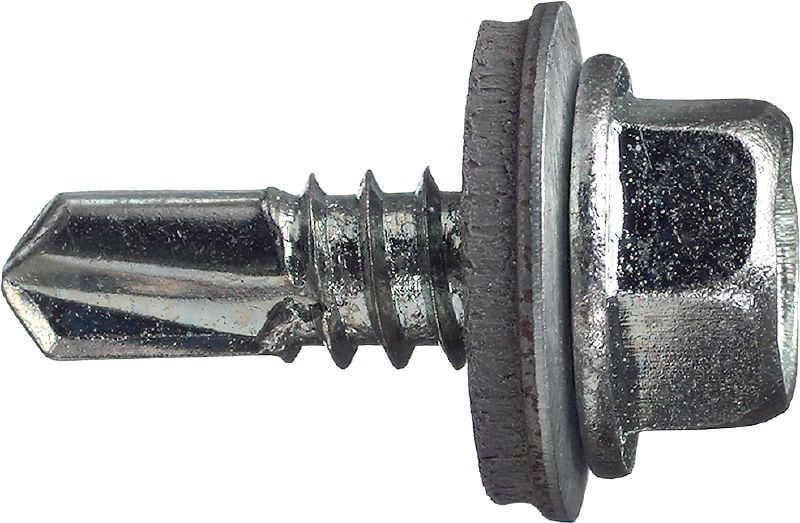

Self-drill screw S-MD51Z 4,8x19 #219032
Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for thin metal-to-metal fastenings (up to 3 mm)
- Screw drive/recess type: Hexagon 8
- Washer size: 16 mm
- Base materials: Carbon steel
premium
Choose options
Thickness fastened range MF
- 1.2 - 8 mm
Drilling capacity range DC
- 1.2 - 2.75 mm
Length
- 19 mm
Pack size
- 500
Quantity
Pack
Total Pieces
500
Discounted net
INR 3,769.50
INR 7.54 / 1 each
Technical Data
Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
4.8 mm
Length
19 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- EPDM rubber washer – creates a more reliable seal against water
- Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
- For reliable fastenings with defined load values
- Attractive final appearance – screw head can be coloured to match the façade
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Galvanised carbon steel for fastening in dry, indoor environments
- Thin metal-to-metal connections (up to 3 mm)
- For applications requiring watertight fastenings with 16 mm washer
- Fastening sheet metal to sheet metal, fastening steel sheeting to thin steel profiles and liner trays
