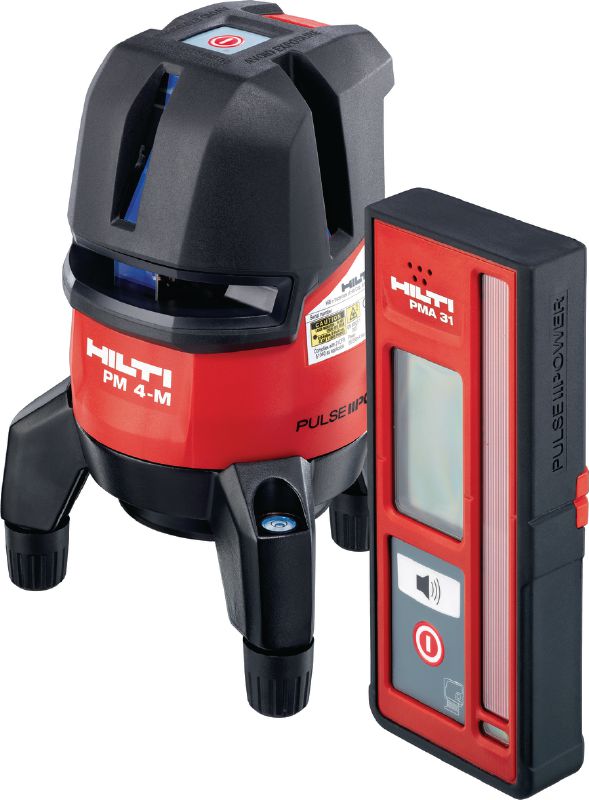

PM 4-M Multi-line laser

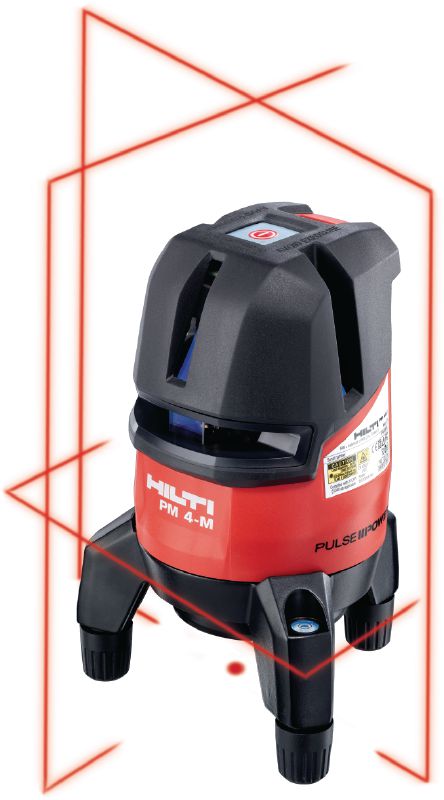

Multi-line laser with 3 lines and plumbing point laser with red beam
- Accuracy: ±2 mm at 10 m
- Max. operating distance (diameter): 20 m (lines), 100 m (lines, with receiver)
- Maximum operating time: 8 h
Customers also searched for multiline laser, levelling, alignment or interior laser.
Choose options
Pack size
- 1
Quantity
Packs
Total Pieces
1
Discounted net
From INR 58,184.00
Technical Data
Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
20 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
±3 °
Self-levelling time
3 s
Horizontal fan angle
180 °
Vertical fan angle
140 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
- Operating distance can be significantly affected by site conditions. See operating instructions.
Features & Applications
Features
- Multi-line laser for precise and fast aligning, levelling and squaring
- Centric design allows one-person layout
- Fine adjustment dial for high-precision alignment
- Out-of-level and low-battery alerts – help to prevent mistakes and unexpected downtime
- Laser class 2 – no special precautionary measures needed
Applications

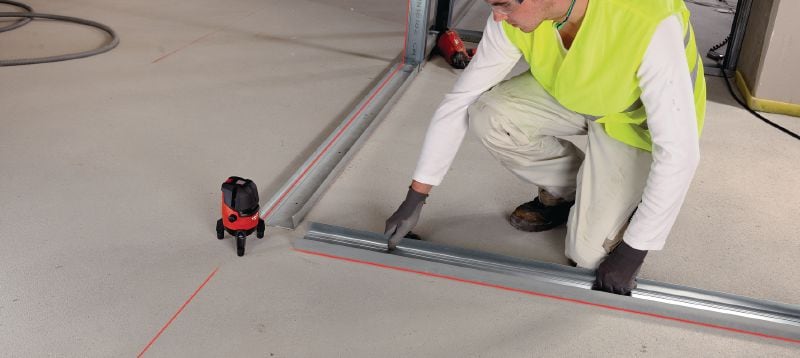

- Setting out metal stud/tracks on floors, ceilings and walls for plasterboard and drylining

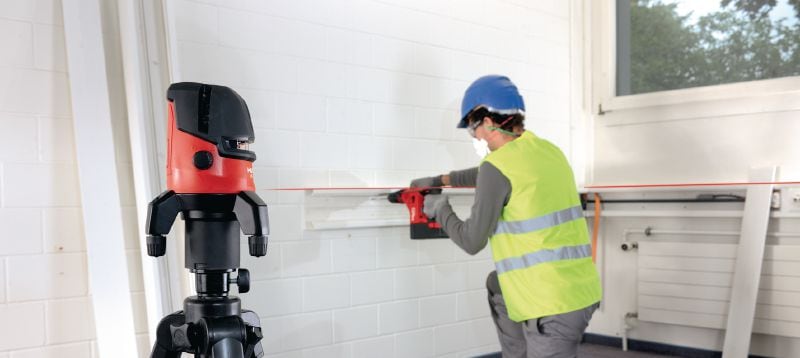

- Transferring reference heights

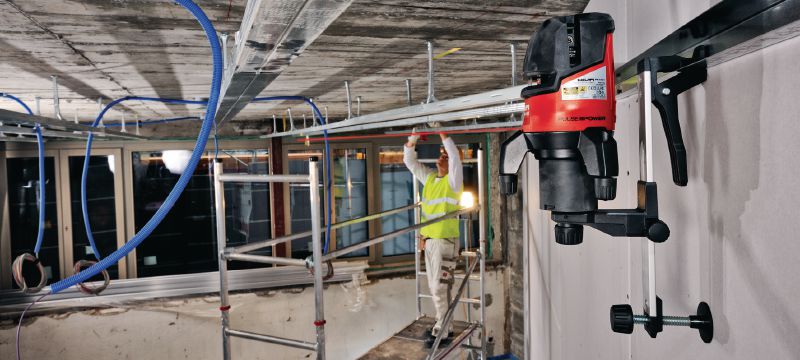

- Vertical alignment of pipes
- Levelling electric sockets, cable trays, radiators and pipe installations
- Levelling and aligning doors and windows
For approval or certificate information, please see individual items.
