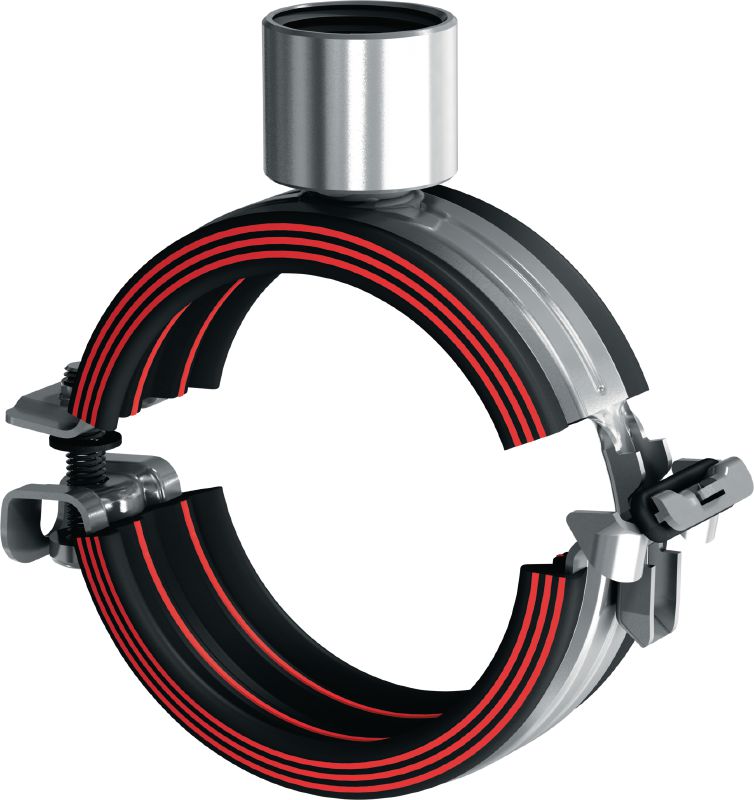

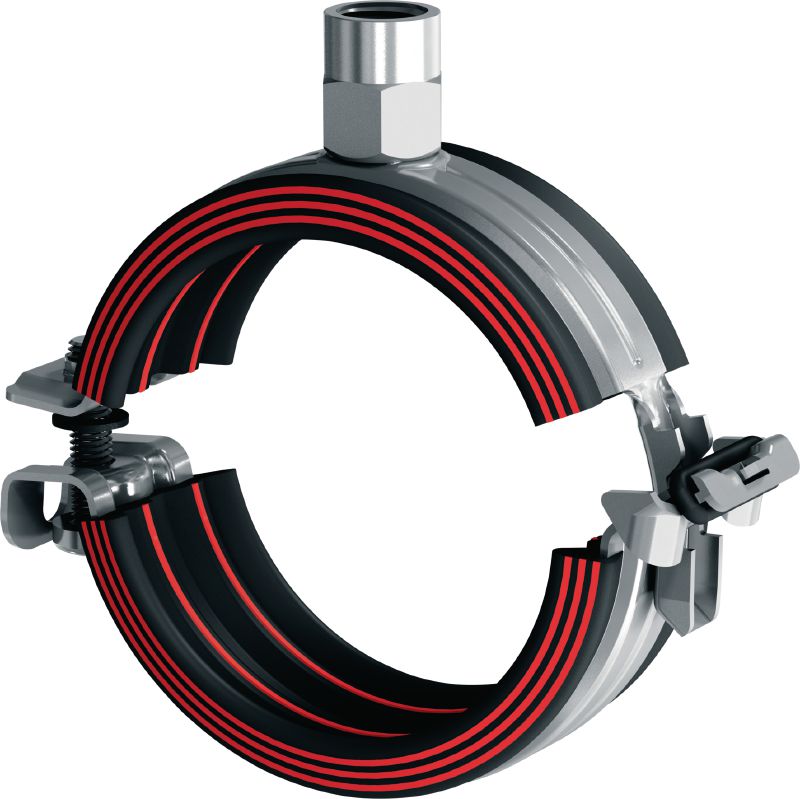

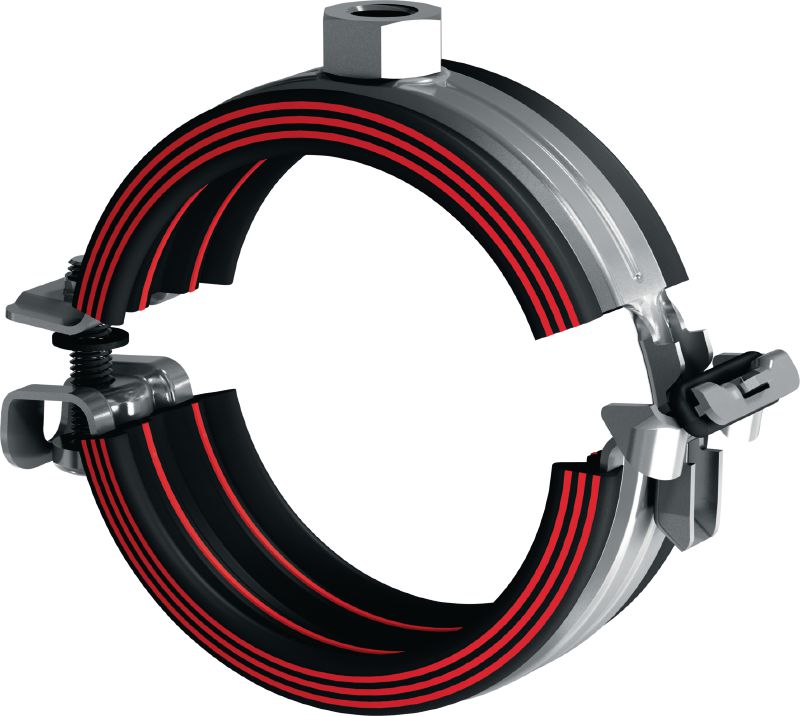

Galvanised pipe clamp with sound insulation and quick closure for maximum productivity in medium-duty applications

  • Approvals: Acoustic insulation DIN 4109 inspected
  • Noise reduction: 19.4 dB (A)
  • Temperature resistance: -40 - 110 °C

Choose options

Clamping range - D
  • 13 - 17 mm
  • 17 - 21 mm
  • 21 - 25 mm
  • 25 - 29 mm
  • 29 - 33 mm
  • 33 - 37 mm
  • 42 - 47 mm
  • 47 - 52 mm
  • 52 - 57 mm
  • 57 - 62 mm
  • 62 - 67 mm
  • 72 - 77 mm
  • 78 - 84 mm
  • 84 - 90 mm
  • 90 - 96 mm
  • 97 - 103 mm
  • 109 - 115 mm
  • 115 - 121 mm
  • 122 - 128 mm
  • 135 - 141 mm
  • 141 - 147 mm
  • 154 - 160 mm
  • 164 - 170 mm
Thread connection - M
  • M8, M10
  • M8, M10, M16 (outside)
Nominal pipe size (imperial)
  • 1/4 in
  • 3/8 in
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
  • 3 in
  • 4 in
  • 5 in
Pack size
  • 10
  • 25
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 2,714.00

Technical Data

IS_MP-U-I_00010 (223731)
Approvals
Acoustic insulation DIN 4109 inspected
Noise reduction
19.4 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130, DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
TPE (thermoplastic elastomer)
Hardness insulation material
59°/90° ±3° Shore A

Documents

Features & Applications

Features

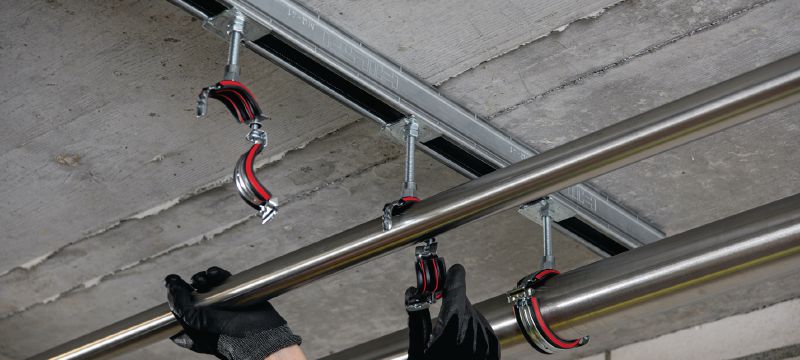

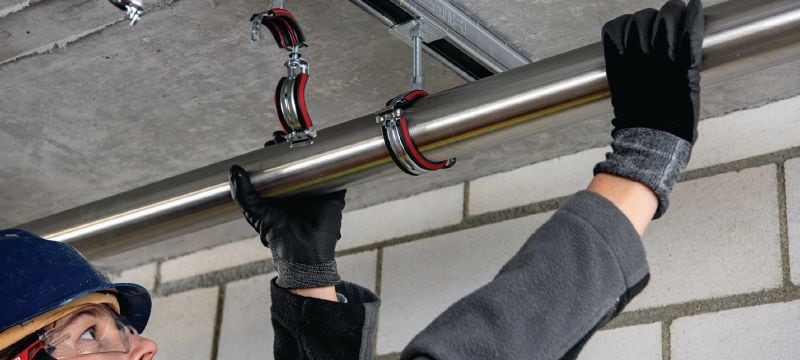

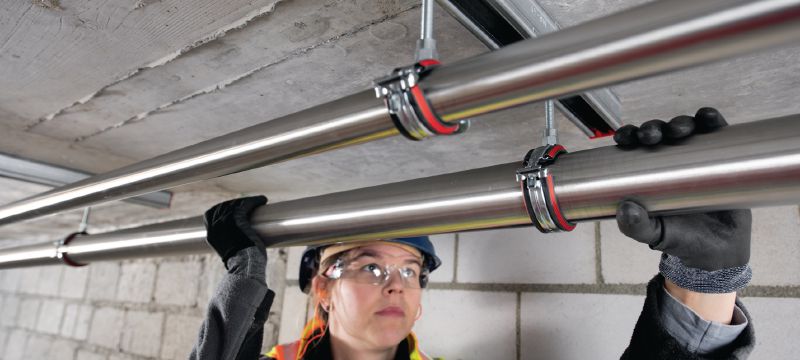

  • Quick-closing safety mechanism – makes pipe installation faster, easier and more reliable, especially overhead

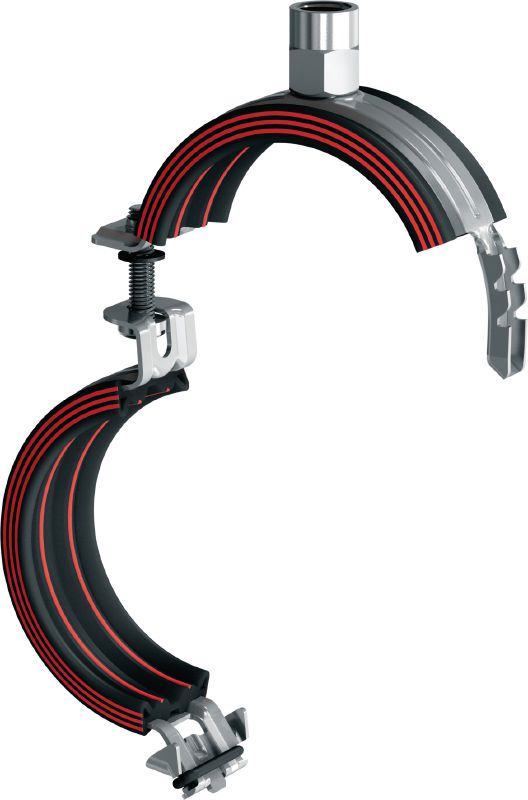

  • Extra-wide opening – pivoting half-ring gives you easier, unhindered access when inserting pipes into the pipe clamp

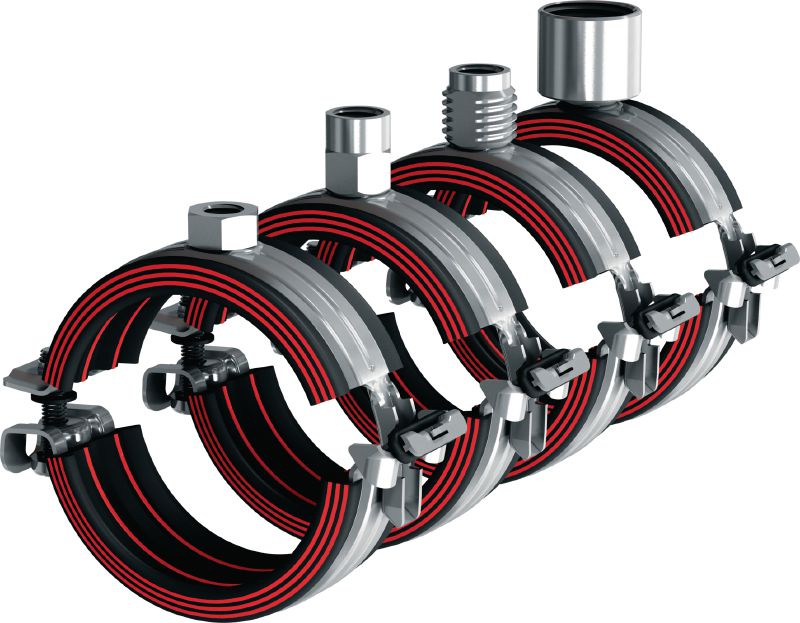

  • More flexibility – pipe clamps available with a variety of connection head options
  • Complete clamping range – from the smallest to largest diameter across the entire product range
  • Profiled rubber inlay with tested sound decoupling – more secure, low-friction surface for easier positioning of the pipe

Applications

  • medium-duty pipe installations up to 6"

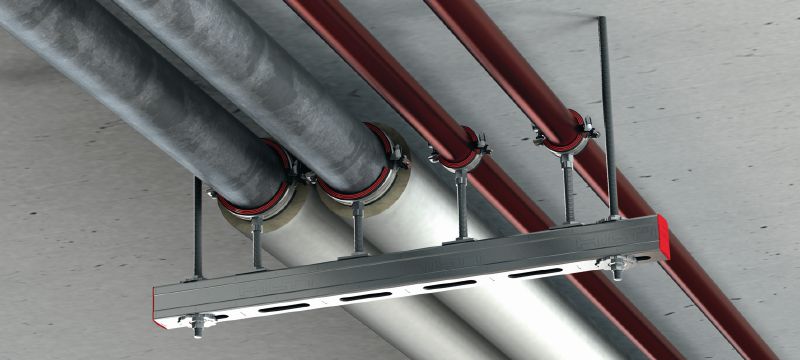

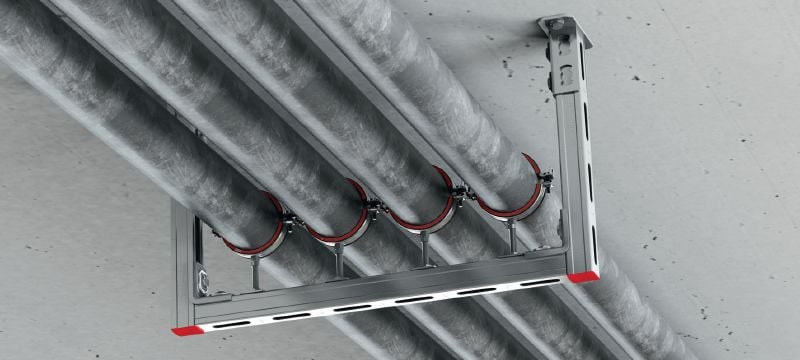

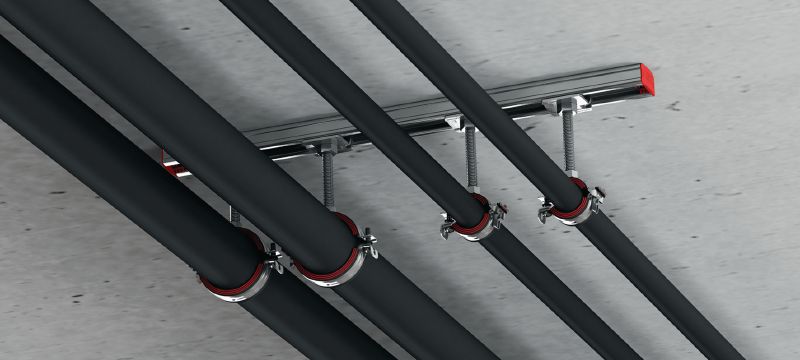

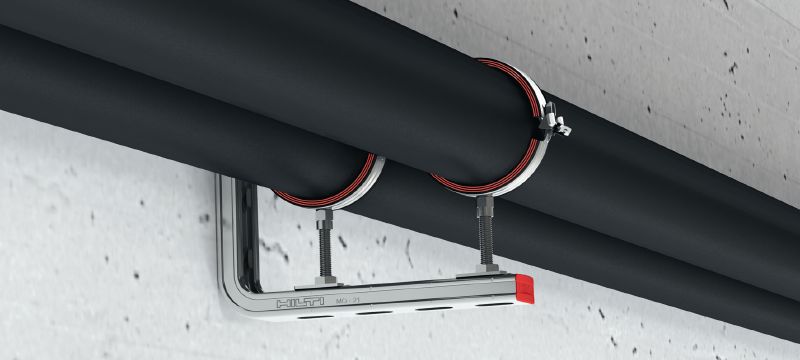

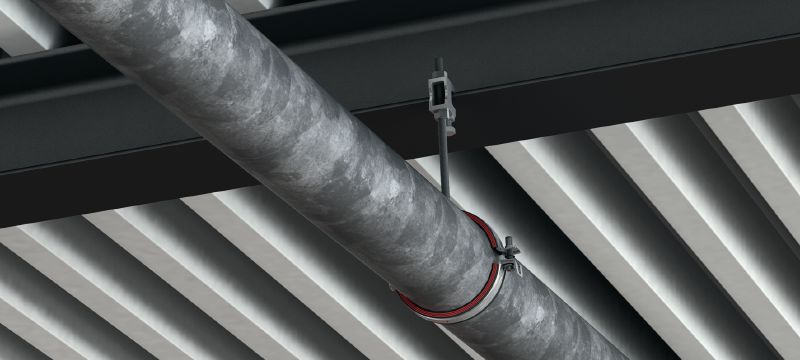

  • Fastening fresh water, waste water, sanitary and heating pipes in residential and industrial construction
  • Installing pipes in areas with fire safety requirements, such as escape and rescue routes
  • Recommended for use in dry, interior environments

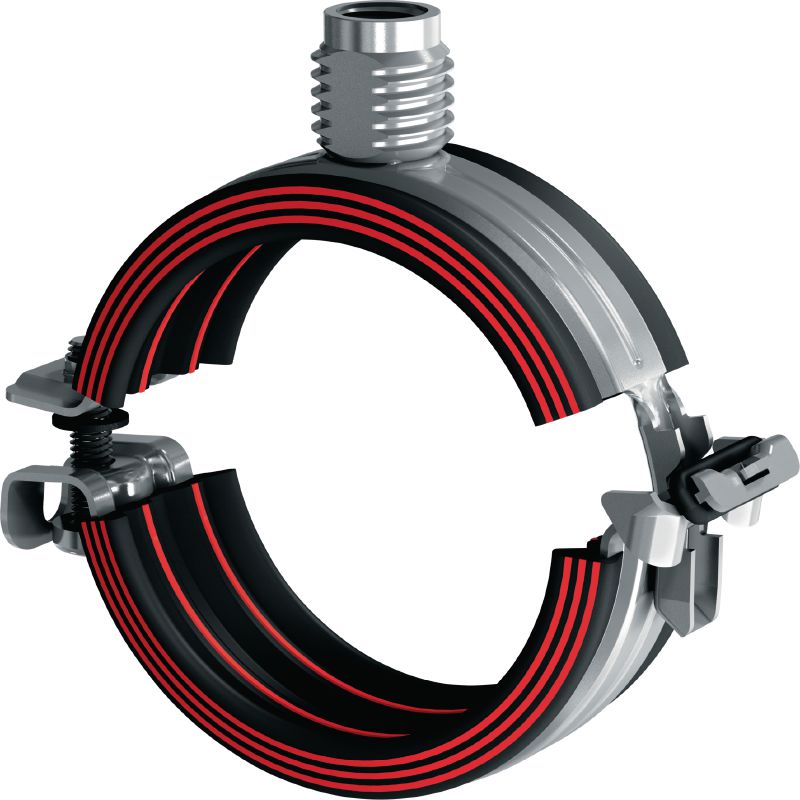

  • Please note: externally threaded O16 versions require MP-GA thread adapters (available separately) for coupling to M16 threaded rods or ½" threaded pipes

For approval or certificate information, please see individual items.
