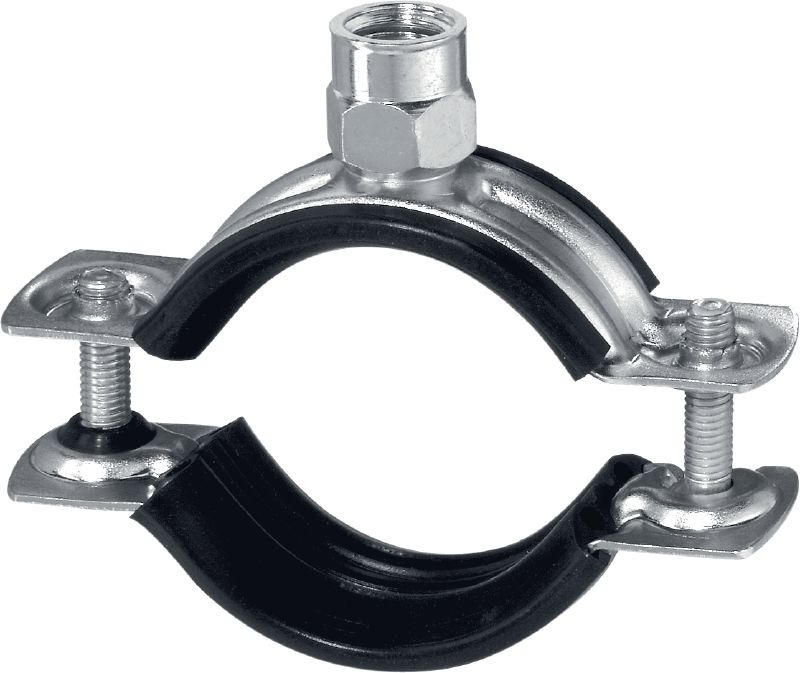

MP-HI Quick-close light-duty pipe clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
17214.tif
17213.tif
MP-HI129
MP-HI Residential pipe rings

Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Approvals: ETA
  • Noise reduction: 17 dB (A)
  • Temperature resistance: -40 - 110 °C
premium

Choose options

Clamping range - D
  • 12 - 16 mm
  • 59 - 66 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 1/4 in
  • 2 in
Pack size
  • 10
  • 25
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 3,992.00

Technical Data

Details
Technical illustrations
Approvals
ETA
Noise reduction
17 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
45° ±5° Shore A
Product class
Premium

Documents

Approval document
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA 21/0803 MP-HI & MP-H (28.01.2022), English, German, French [ 2.3 MB ]

Features & Applications

Features

  • Two-screw pipe clamp with side swiveling mechanism
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Click closure for easier and faster pre-fixing
  • Adhesive-bonded acoustic insulation inlay – helps to prevent drop-out during installation
  • Welded M8/M10 double connection head for more flexibility

Applications

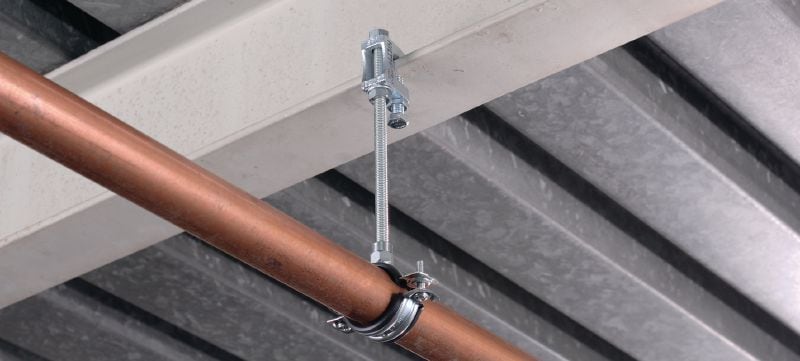

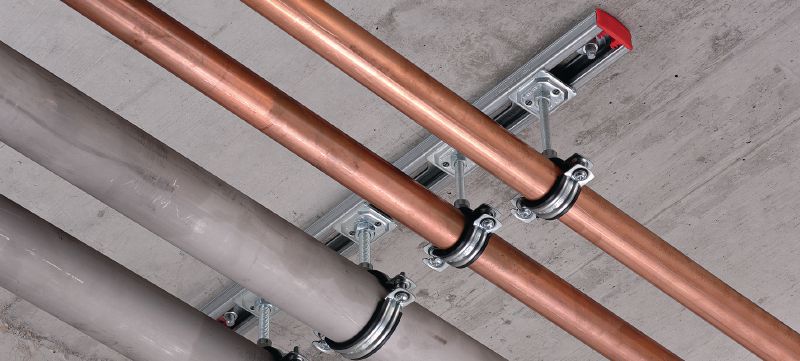

  • Light-duty pipe installations up to 6" (or 172mm)
  • Fastening fresh water, waste water and heating pipes
  • Sanitary, heating and gas applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Fastening drinking water pipes and heating pipes in residential and industrial construction

For approval or certificate information, please see individual items.
