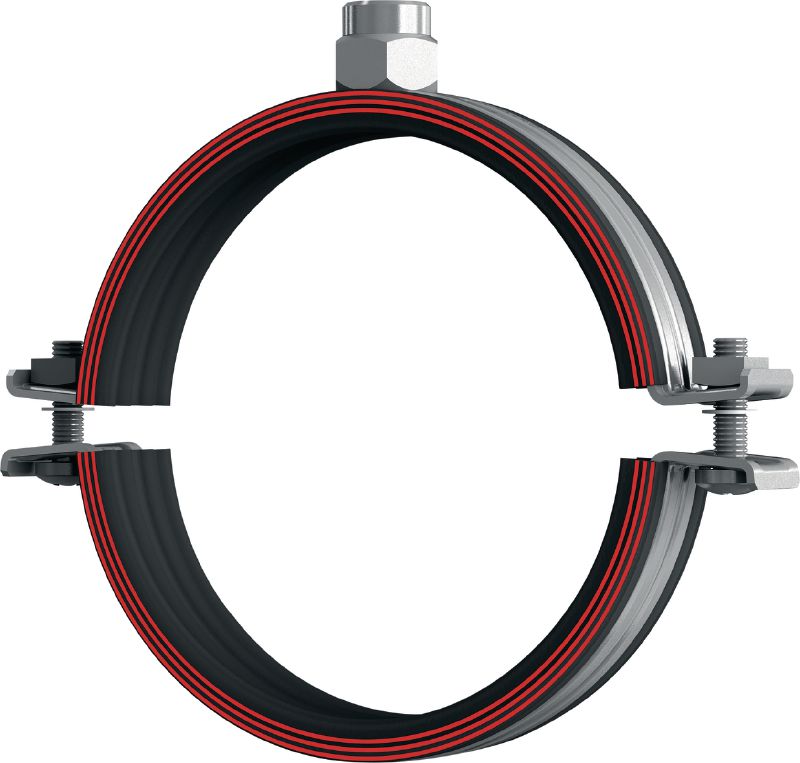

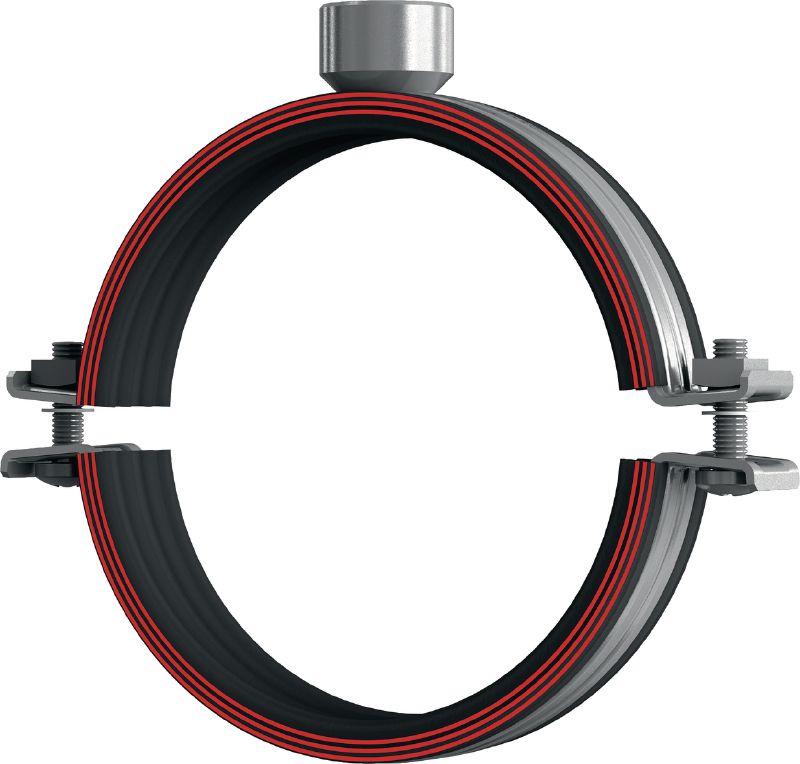

Galvanised pipe clamp with sound insulation for heavy-duty applications

  • Noise reduction: 19 dB (A)
  • Temperature resistance: -40 - 110 °C
  • Material composition: S235JRG - DIN EN 10025

Choose options

Clamping range - D
  • 25 - 30 mm
  • 32 - 38 mm
  • 40 - 45 mm
  • 48 - 54 mm
  • 57 - 64 mm
  • 70 - 77 mm
  • 82 - 90 mm
  • 108 - 114 mm
  • 114 - 119 mm
  • 137 - 142 mm
  • 162 - 168 mm
  • 210 - 219 mm
  • 217 - 224 mm
Thread connection - M
  • 1/2 in
  • M10, M12
  • M16
Nominal pipe size (imperial)
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
  • 3 in
  • 4 in
  • 5 in
  • 6 in
  • 8 in
Pack size
  • 5
  • 10
  • 25
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 6,860.00

Technical Data

28513_G.eps
28513_C.eps
28513_DL.eps
28513_DL_EL.eps
28513_EL.eps
Noise reduction
19 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A

Documents

Features & Applications

Features

  • Solid, welded nuts for closing screws (diameter 68/72 mm and above)
  • Pre-assembled non-slip rubber profile
  • Profiled clamp band for higher rigidity

Applications

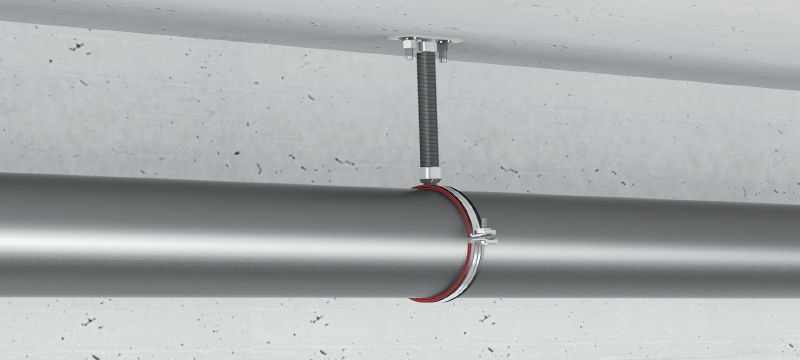

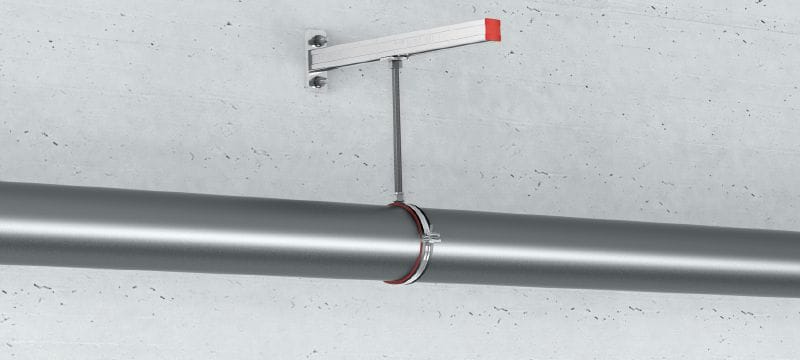

  • heavy-duty pipe installations up to 273 mm

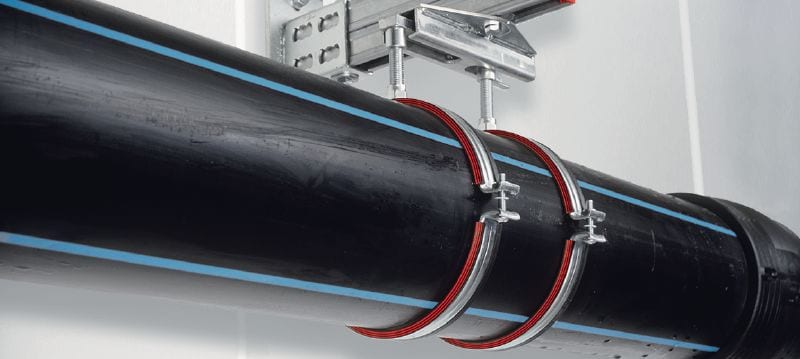

  • Installing industrial pipes
  • Mounting process and control queues
  • heavy-duty plumbing and heating applications
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
