MRP-KF Quick-close refrigeration pipe clamp

High-density refrigeration pipe clamp with quick closure for high productivity for heavy-duty in refrigeration applications

ultimate

Technical Data

Noise reduction

16 dB (A)

Temperature resistance

-50 - 110 °C

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Product class

Ultimate

Diffusion resistance

Vapor retardant due to the closed-cell structure of the rigid PUR foam

Thermal conductivity (λ approx. value)

0.043 W/mK

Compressive strength

2.4 N/mm²

Approx. density

250 kg/m³

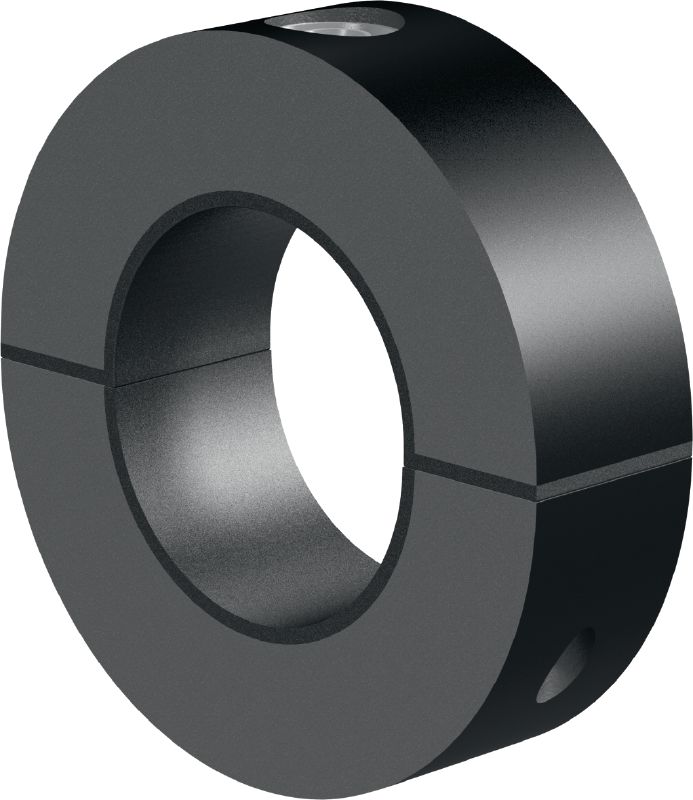

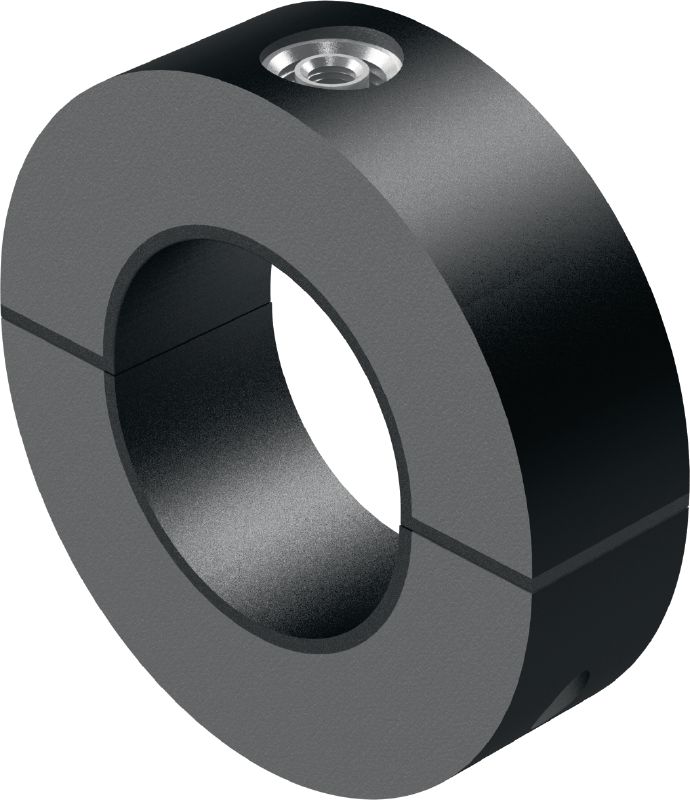

Two-part pipe clamp with innovative closure mechanism for quicker, easier installation

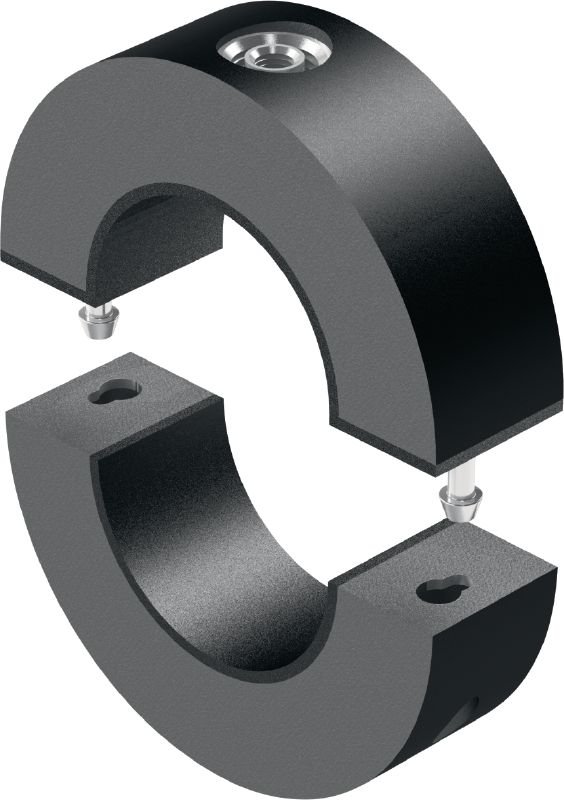

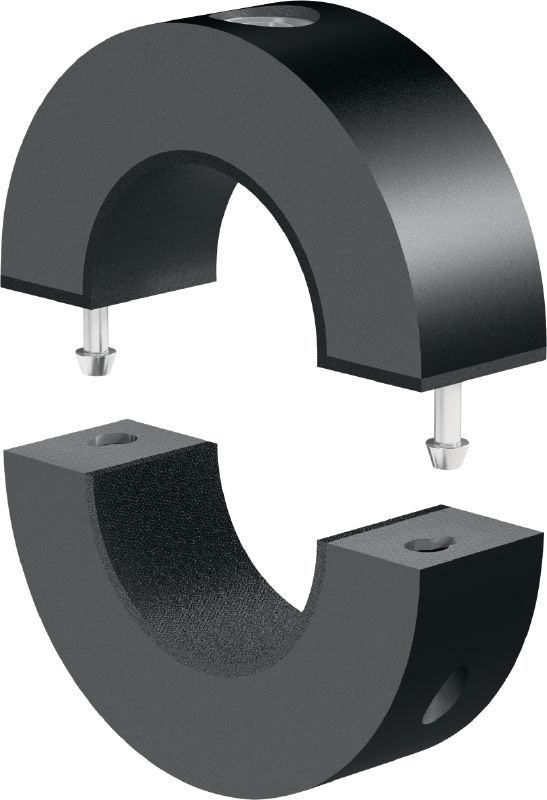

The closure mechanism allows two-sided closure as well as one-sided pre-assembly of the pipe clamp half-shells
Integrated metal pipe clamp in the insulation material for optimum load transfer
No sealant required – vapour diffusion-resistant thanks to sealing tape
Three-way connection boss – M8, M10, 1/2" (12.7-139.7 mm diameter) or two-way connection boss M12, 1/2" or M16, 3/4" (159-219.1 mm diameter)

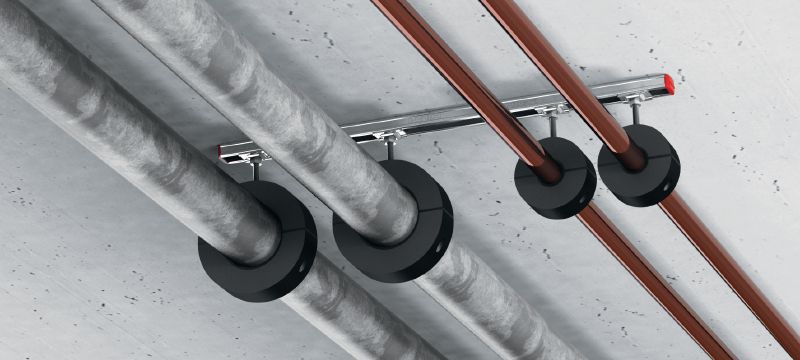

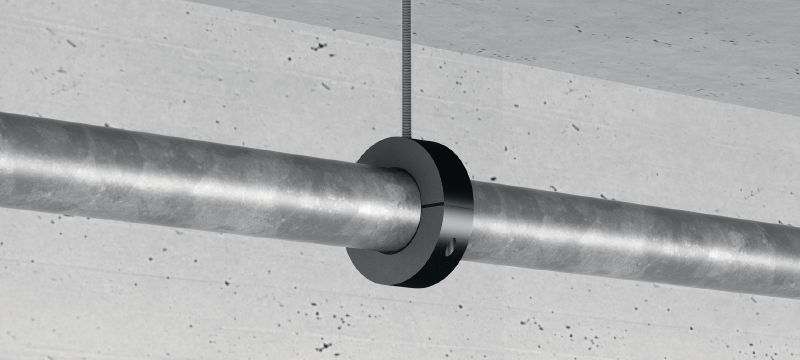

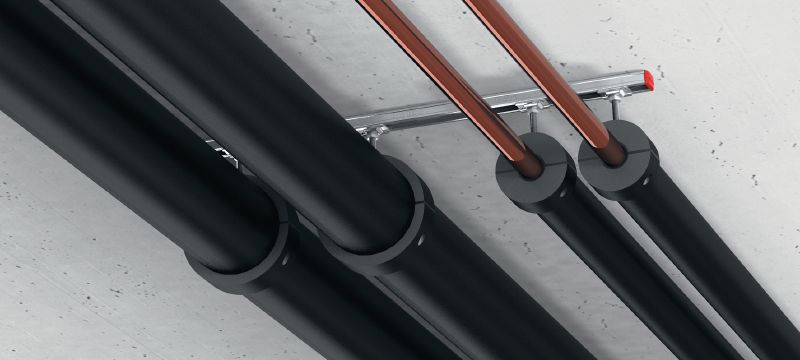

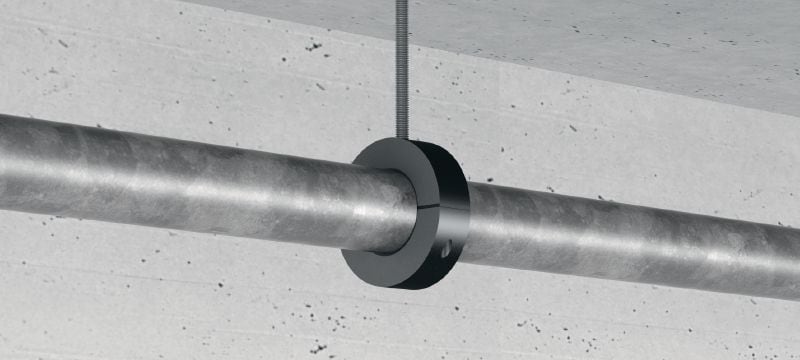

Installing chilled water pipes up to 219 mm diameter in industrial and air conditioning applications
Combined connection boss – M8, M10, 1/2" for 12.7 - 139.7 mm diameter, M12, 1/2" or M16, 3/4" for 159 - 219.1 mm diameter
Three-way connection boss – M8, M10, 1/2" (12.7 - 139.7 mm diameter) or two-way connection boss M12, 1/2" or M16, 3/4" (159 - 219.1 mm diameter)

For approval or certificate information, please see individual items.
