MP-PI HDG pipe clamp

Pipe ring MP-PI 192-204 M8/M10 HDG #2186865

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001100_v1.tif
LCG001101_v1.tiff
MP-PI (59453)

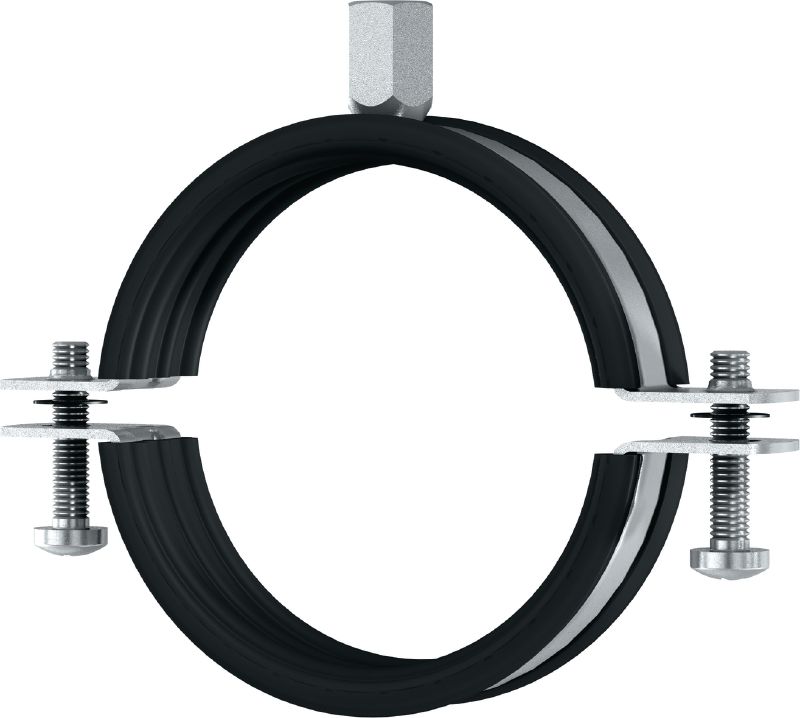

hot-dip galvanised (HDG) pipe clamp with sound insulation for economical light/medium-duty applications

  • Clamping range - D: 192 - 204 mm
  • Thread connection - M: M8, M10
  • Maximum load - F: 1750 N
standard

Choose options

Clamping range - D
  • 192 - 204 mm
Thread connection - M
  • M8, M10
Pack size
  • 25
 Product options
Quantity
Pack
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 20,320.00
INR 812.80 / 1 each

Technical Data

Details
Technical illustrations
Clamping range - D
192 - 204 mm
Thread connection - M
M8, M10
Maximum load - F
1750 N
Noise reduction
16 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
SPCC-SD FB - Q/BQB402, DC01 – EN 10130
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM
Hardness insulation material
75° ±5° Shore A
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
2 mm
Cross section width - b
25 mm
Width - B
261 mm
Distance between holes - A
243 mm
Product class
Standard
Distance centre pipe to top - h
131 mm

Documents

Documentation
Sustainability Documentation
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Two-screw pipe ring for easier installation of pipes
  • Short connection head allows installation close to a wall, floor or ceiling
  • Clamping ranges suitable for all standard plastic and steel pipes
  • Engineered for longevity and reliability – recognised by third-party approvals
  • Securely fixed rubber inlay – virtually impossible to drop or lose

Applications

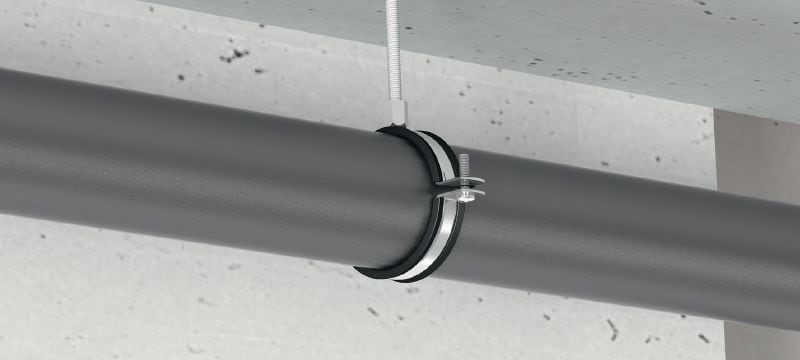

  • Light to medium-duty pipe installations
  • Fastening pipes in residential and industrial construction
  • Fastening fresh water, waste water and heating pipes in residential and industrial construction
  • Recommended for use in outdoor and indoor environments with moderately corrosive conditions
