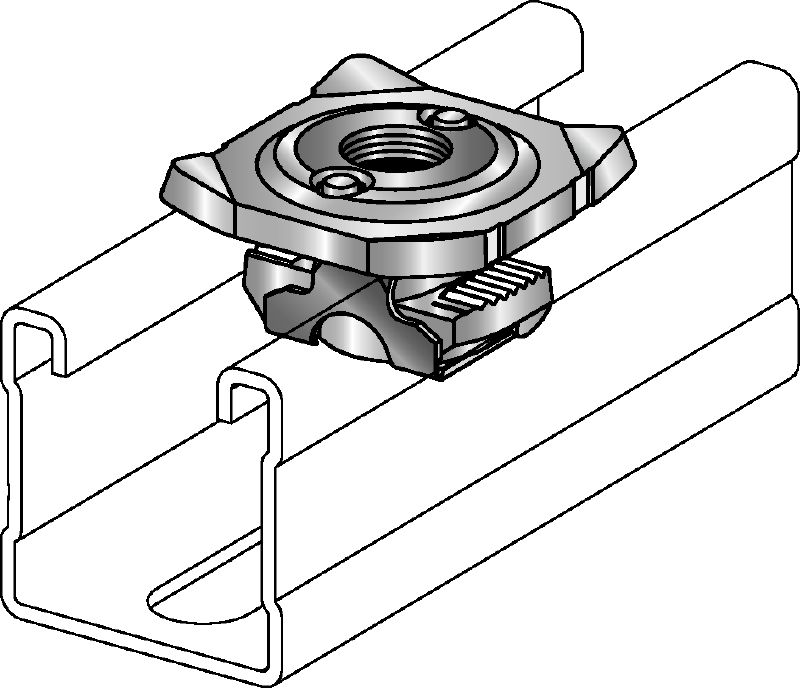

Hot-dip galvanised (HDG) pipe clamp saddle for connecting threaded components to MQ strut channels

  • Material composition: Nut: EN-GJMW-450-7 - DIN EN 1562, Plate: S235JR - DIN EN 10025, Plastic: PB
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

14676.eps
Material composition
Nut: EN-GJMW-450-7 - DIN EN 1562, Plate: S235JR - DIN EN 10025, Plastic: PB
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Quick connection of threaded components to the open side of MQ strut channels
  • Easy installation and positioning within MQ strut channel openings
  • Single, compact part – for higher productivity and flexibility
  • Various thread sizes available
  • Moveable

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
  • Recommended for use in moderately corrosive outdoor and indoor environments
  • For metric threads

For approval or certificate information, please see individual items.
