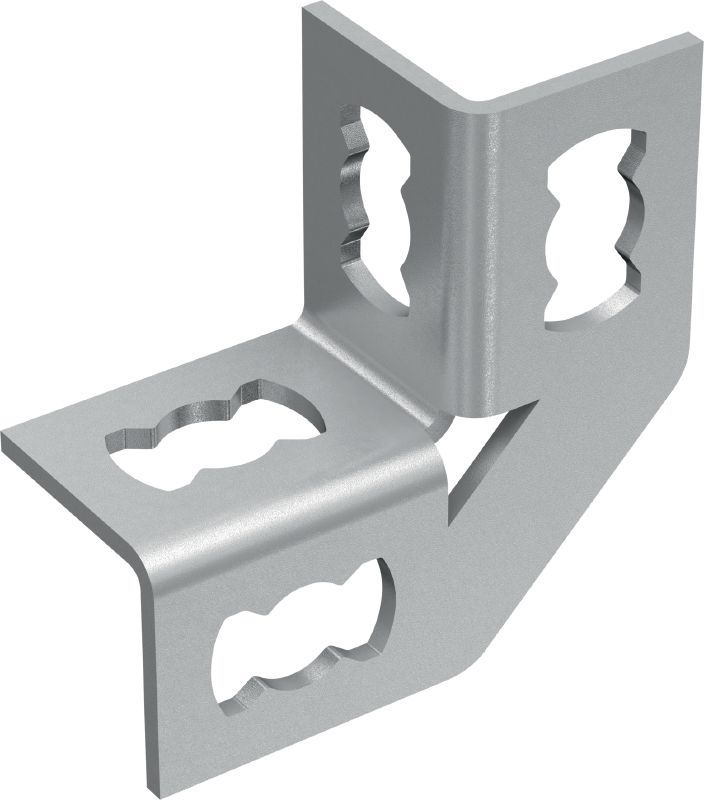

MQW-4-90 Angle Connector
4-hole angle MQW-4 #369658

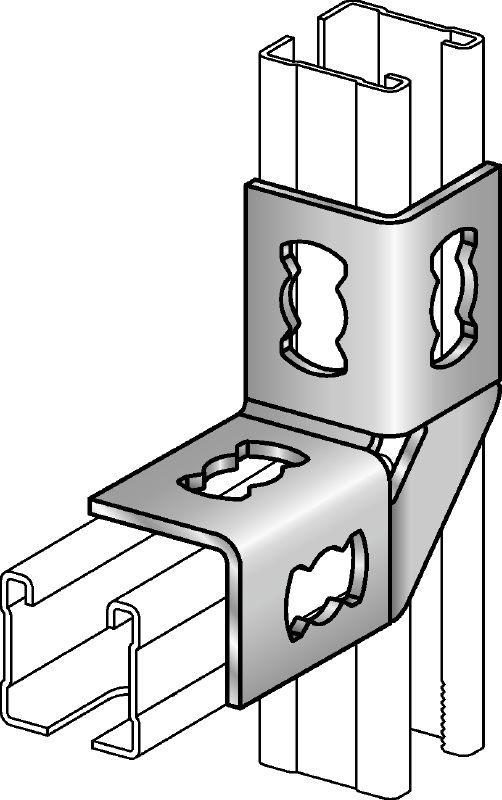

Galvanized 90-degree angle for connecting multiple MQ strut channels
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Number of holes: 4
Choose options
Angle
- 90 °
Number of holes
- 4
Pack size
- 10
Quantity
Pack
Total Pieces
10
Discounted net
INR 13,240.00
INR 1,324.00 / 1 each
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Number of holes
4
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Weight
250 g
Documents
Features & Applications
Features
- Compatible with push button channel connectors – for much faster, adaptable assembly
- Adjustable – easily fit and repositioned along strut channels
Applications
- Assembling frames or connections with 45/135-degree angles
- Compatible with multiple MQ strut channels
- Recommended for use in dry, interior environments
