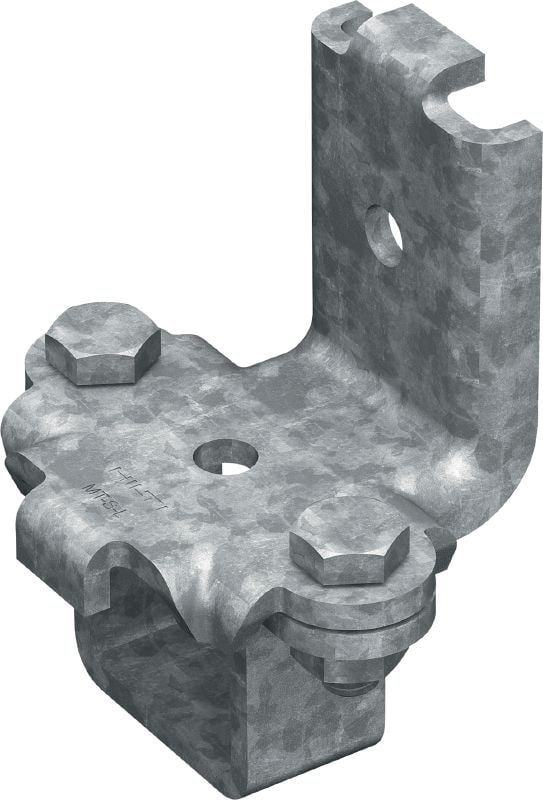

Angle bracket for assembling braced MT-40 strut channel structures in seismic zones, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adaptable – unlike welding, seismic brackets allow you to modify strut channel framing for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects

Applications

  • Right-angle connections between MT-40 strut channels with connection to seismic bracing
  • Assembling metal framing for MEP support structures in seismic zones
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
