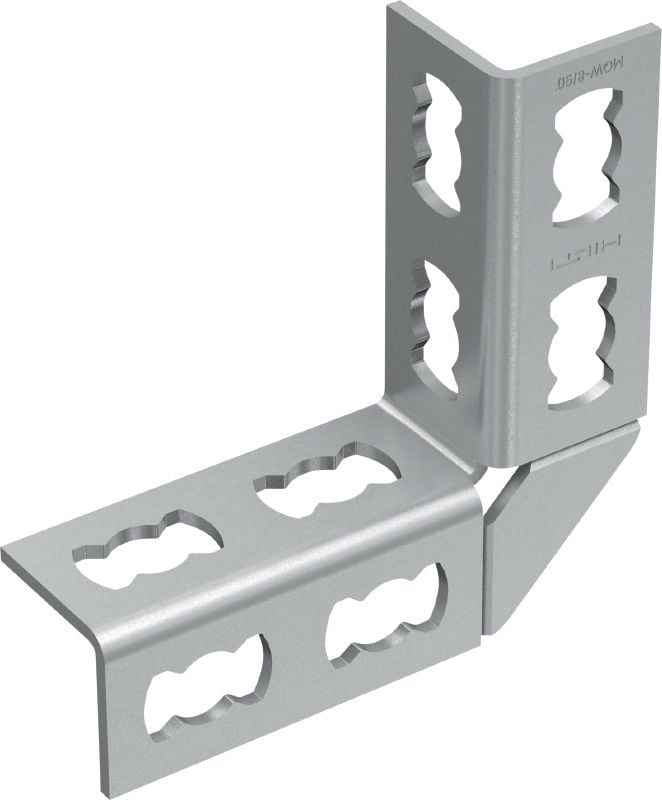

MQW-8/90 Angle bracket

8-hole angle MQW-8/90 #369659

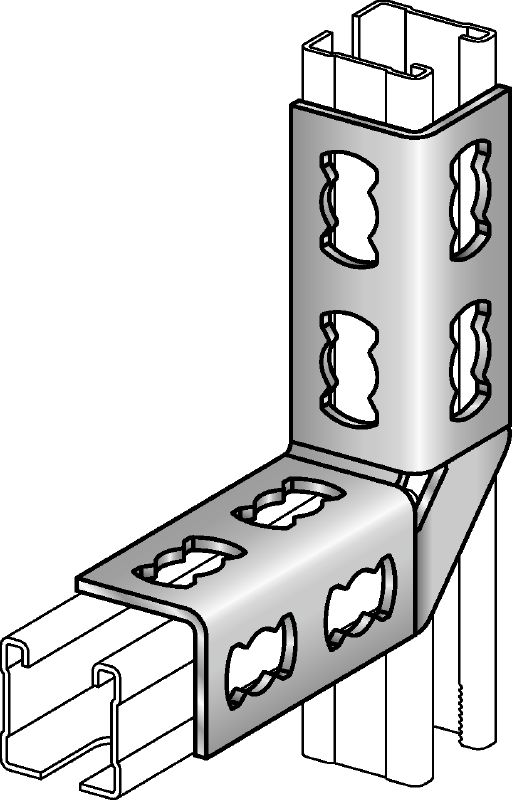

Galvanised 90-degree angle for connecting multiple MQ strut channels

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Number of holes: 8

Choose options

Angle
  • 90 °
Number of holes
  • 8
Pack size
  • 10
Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 22,080.00

INR 2,208.00 / 1 each

Technical Data

80129.eps
IS_HNA_214.eps
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Number of holes
8
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Weight
430 g

Documents

Features & Applications

Features

  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Adjustable – easily fit and repositioned along strut channels
  • Universal: few parts for all applications
  • Easy to handle

Applications

  • Assembling frames or connections with 45/135-degree angles
  • Compatible with multiple MQ strut channels
  • Recommended for use in dry, interior environments
