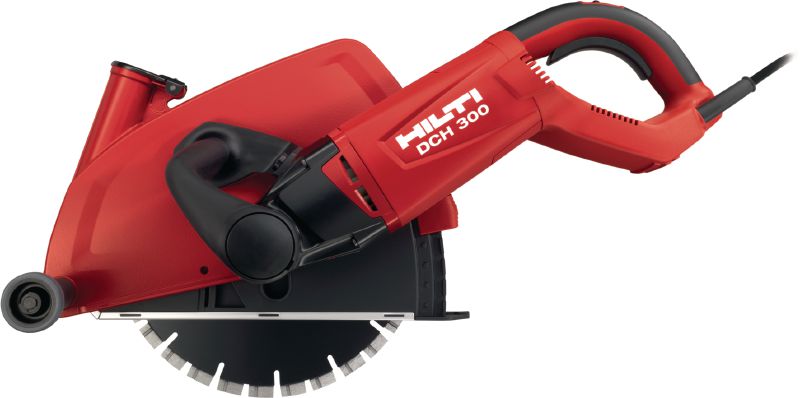

DCH 300 Electric cutter

Kit Obsolete: Do not use #3595569

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 299,236.00

1 each

Technical Data

Disc diameter

305 mm

Cutting depth

120 mm

No load RPM

gear 1: 4900 rpm

Triaxial vibration value for cutting concrete slab (ah)

5.1 m/s² ¹

Arbor size

22.2 mm

A-weighted emission sound pressure level

106 dB (A) ²

Dimensions (LxWxH)

705 x 240 x 235 mm

Wet or dry operation

Dry

According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DCH 300 / -X (01), Danish, German, English, Spanish, Finnish, French, Hebrew, Italian, Korean, Dutch, Norwegian, Polish, Portuguese, Swedish [ 6.7 MB ]

Download

pdf Operating Instruction DCH 300 / -X (01), Danish, German, English, Spanish, Finnish, French, Hebrew, Italian, Korean, Dutch, Norwegian, Polish, Portuguese, Swedish [ 6.8 MB ]

Download

Features & Applications

Features

Delivers far more cutting depth than angle grinders – you can saw through 120 mm thick materials with a 305 mm blade
The inverted blade rotation guides the saw away from the operator's body – making cutting easier and safer

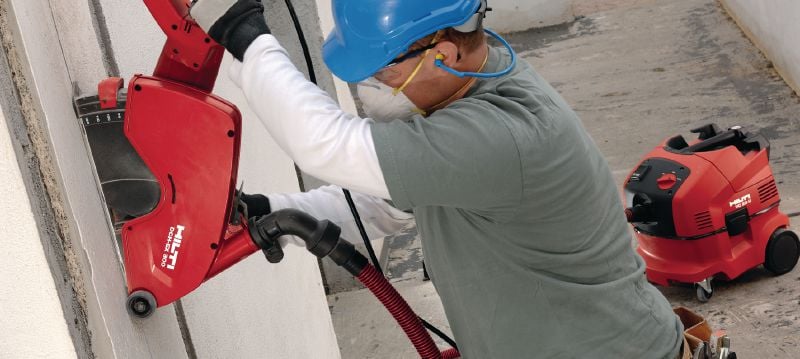

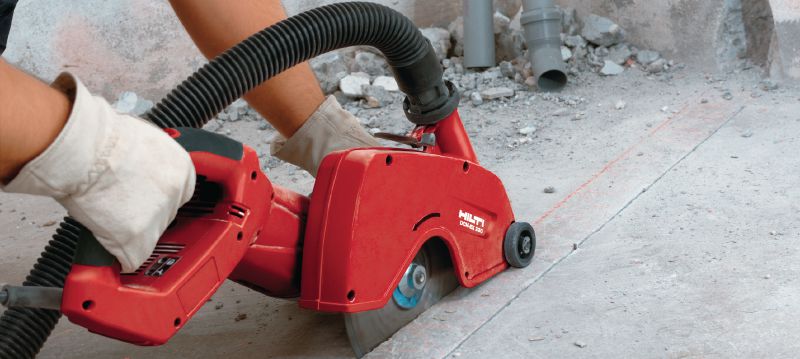

Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
Achieve even greater productivity gains by using with specifically developed Hilti cutting discs
Protection against overheating and overloading – prolongs the cutter's lifetime and increases the operator's safety

Applications

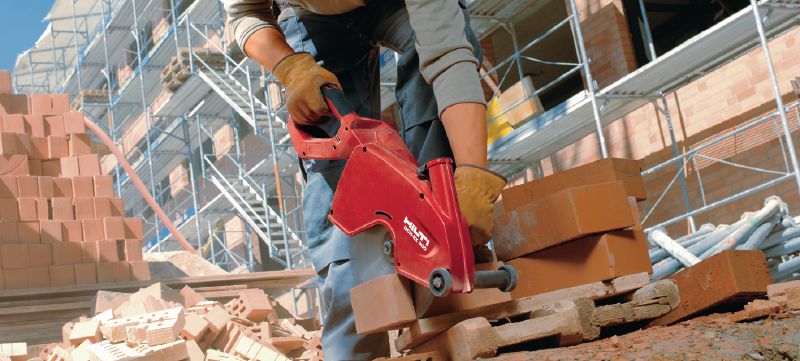

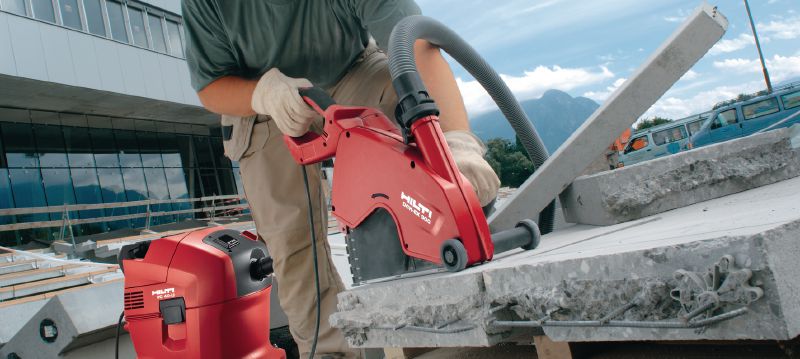

Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks
Cutting metal beams, steel pipes and reinforcing bars
Making preliminary cuts for controlled demolition

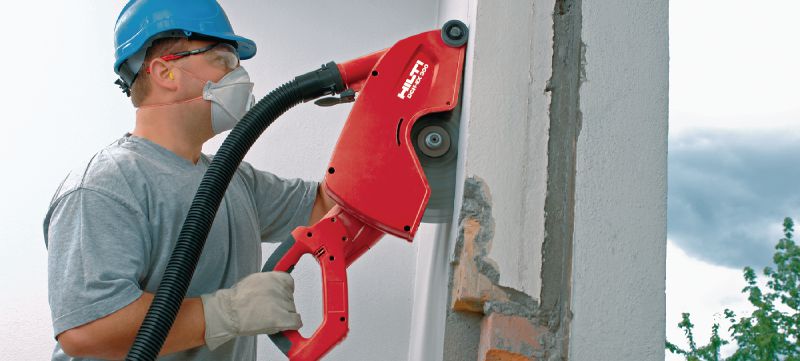

Cutting and extending openings for windows, doors and shafts
