DD 120 Core drill

Kit DD 120 Set + CB MP3 #5006453

L015506_v2 (192823)
43626.tif
L015509_v2 (227385)
9451.tif
9452.tif
9453.tif
9454.tif

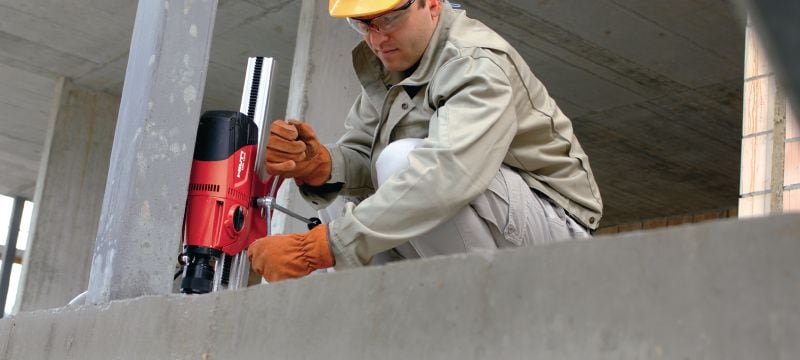

Extremely compact, light and mobile diamond coring machine for rig-based concrete coring from 16-162 mm (5/8 – 6-3/8") in diameter

  • Diameter range: 16 - 162 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for diamond-drilling, rig or coring.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 171,500.00
INR 171,500.00
/
1 each

Technical Data

Diameter range
16 - 162 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Rated input power
1600 W
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.5 kg
Weight of complete system
11 kg
Dimensions (LxWxH)
327 x 147 x 330 mm
A-weighted emission sound pressure level
89 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DD 120 (01), Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Serbian [ 12 MB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively-designed features and controls
  • Compact and lightweight concrete core drill – for much easier handling
  • Two-speed gearing for optimum speed and torque
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

  • Installing pipes for sanitary, heating and air conditioning
  • Installing water supply and waste water pipes
  • Making openings for cable trays
  • Setting large-diameter anchors and reinforcing bars
  • Installing railings and barriers

Services

Hilti Tool Service

  • Servicing is free of charge for up to 1 year, including wear and tear, pick-up and delivery
  • 1-month no-cost period after each paid repair
  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
