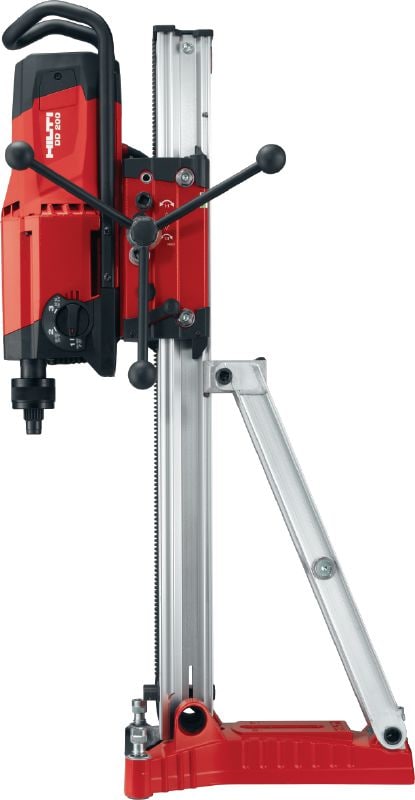

DD 200 G02 Core drill

L082398 (173233)
DD 200 (79465)
DD 200 (81158)
DD 200 (81177)
DD 200 (81159)

Heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm

  • Diameter range: 35 - 500 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for Core Cutting, Diamond Coring or Concrete Cutting.

Choose options

Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 450,000.00

Technical Data

Diameter range
35 - 500 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Rated input power
3200 W
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according to EPTA-Procedure 01/2003 without battery
14.6 kg
Weight of complete system
36 kg
Dimensions (LxWxH)
630 x 190 x 215 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
Corner accessibility
50 mm
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DD 200 (02), Arabic, cn, German, English, Spanish, Finnish, French, Italian, Kazakh, Portuguese, Russian, Turkish, Ukrainian, Chinese [ 9.8 MB ]

Features & Applications

Features

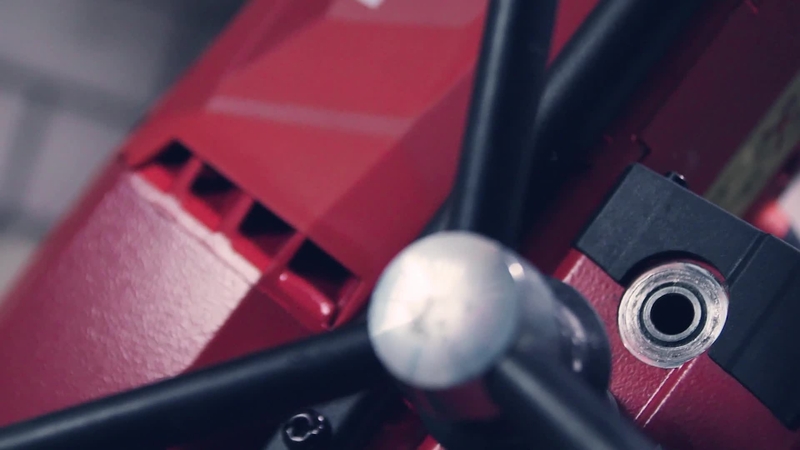

  • Air-cooled, heavy-duty drive unit with three-speed gearing and convenient controls
  • Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
  • Designed for versatility – suitable for an extremely wide range of applications
  • Extremely sturdy, robust design
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximize core bit life

Applications

  • Penetrations for ducts, pipes and cables
  • Openings for ventilation
  • Stitch drilling for breaches
  • Coring holes for service entries
  • Coring holes in ceilings, walls and floors without hammering and vibration

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • 1-month no-cost period after each paid repair
  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
More information about Tool Services
