GX 3 Gas-actuated fastening tool

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L079827 (152042)
GX 3 gas gauge display (75342)
GX 3, gas-actuated tool (79931)
GX 3, gas-actuated tool (79932)
GX 3, gas-actuated tool (79933)
GX 3 (90321)
GX 3, gas-actuated tool (79929)

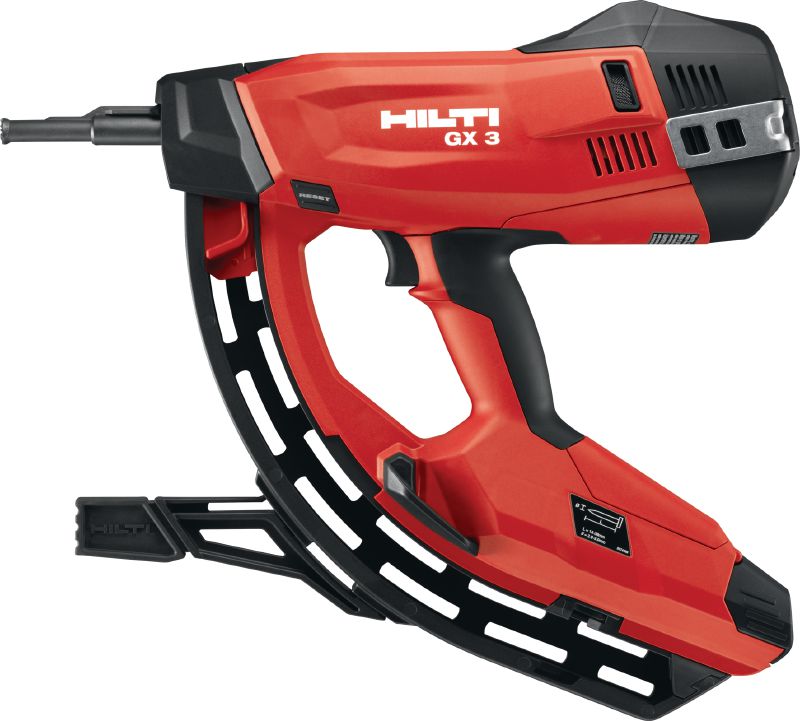

Gas nailer with single power source for metal track, electrical, mechanical and building construction applications

  • Dimension (L x W): 436 x 132 mm
  • Tool body weight: 3.99 kg
  • Fastener length range: 14 - 39 mm

Customers also searched for Gas-actuated tool, Decking, Nailing Gun, Direct fastening or No drilling.

Choose options

Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 184,667.70

Technical Data

Dimension (L x W)
436 x 132 mm
Tool body weight
3.99 kg
Fastener length range
14 - 39 mm
Power source type
GC 40 Gas can, GC 41 Gas can, GC 42 Gas can
Hilti Connect
Yes
Power (max.)
100 J

Documents

Technical information
Operating Instruction
Material safety datasheet
pdf GX 3 - accessories and consumables compatibility, English [ 1.3 MB ]

Features & Applications

Features

  • Single source of energy, no batteries to recharge are needed
  • Curved, 40-nail magazine for better accessibility in narrow spaces and deep tracks
  • High fastening rate for high productivity and maximum efficiency
  • Wide range of nails for fastening to a wide variety of materials

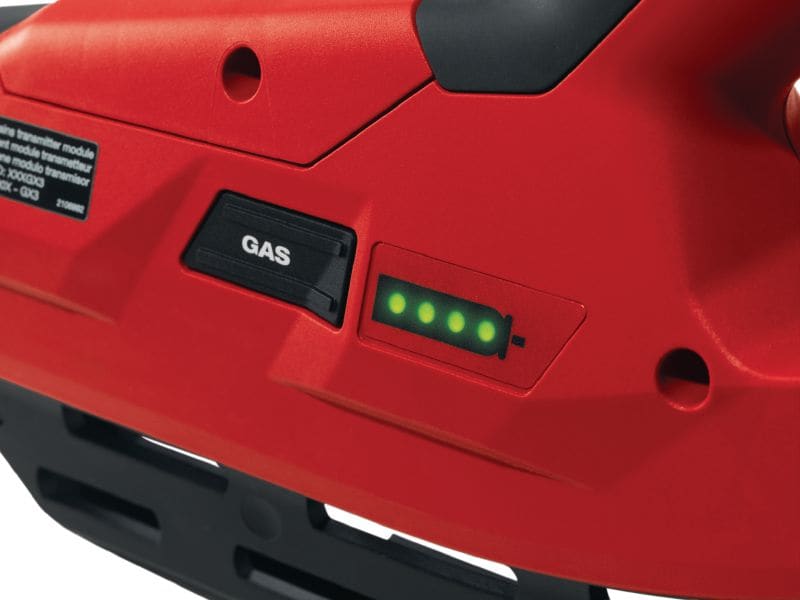

  • Gas gauge helps to avoid running out of gas unexpectedly

Applications

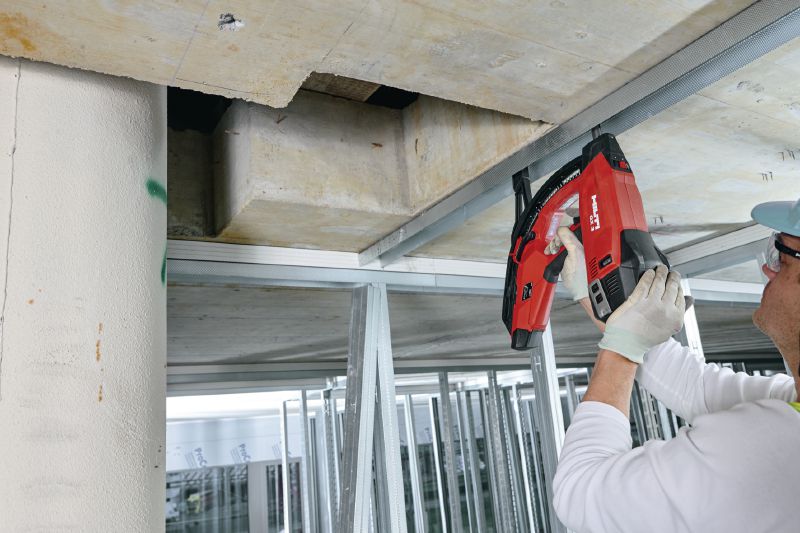

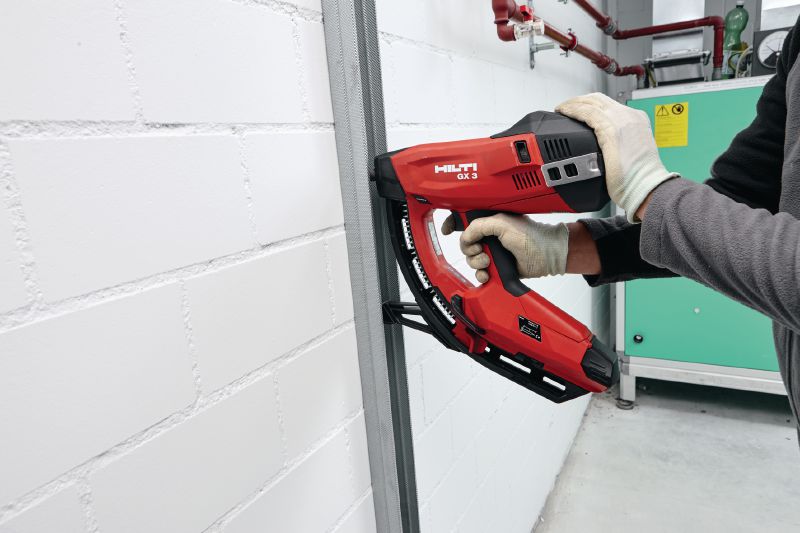

  • Fastening metal stud/track for plasterboard walls to floors, walls and ceilings on concrete, solid masonry or steel
  • Fastening mesh, membranes or foil with special washer holders to concrete walls
  • Fastening wall tie connections to concrete, solid masonry or steel – use of the special washer holder is recommended
  • Suitable for various light-duty fastening applications on concrete, solid masonry or steel
  • Fastening cables, conduits or various light electrical installations – use of the ME nailer nose is recommended

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After 2 years repair costs are capped
  • 1-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
More information about LifeTime Services
