TE 70-AVR Rotary hammer

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty concrete drilling and chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 8.3 kg
  • Weight class: 7 kg
  • Single impact energy: 11.5 J

Choose options

Pack size
  • 1
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 165,375.00

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
8.3 kg
Weight class
7 kg
Single impact energy
11.5 J
Hammer drilling diameter range
12 - 150 mm
Optimum hammer drilling range
20 - 45 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
2760 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
9.0 m/s² 2
Rated input power
1800 W
Dimensions (LxWxH)
540 x 125 x 305 mm
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
105 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Highest productivity for a wide range of drilling and chiselling applications
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Ruggedly built for a long lifetime

Applications

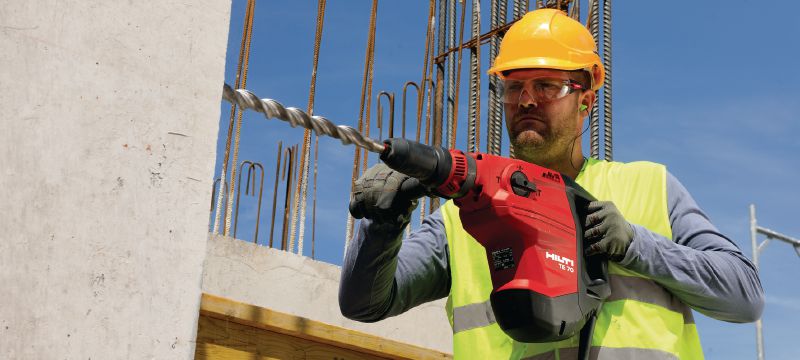

  • Hammer drilling in concrete, masonry and natural stone using bits in the 12-150 mm diameter range
  • Drilling holes for heavy-duty anchors from 20-40 mm in diameter
  • Breaching and demolition using pointed and flat chisels
  • Drilling with high torque in wood and steel
  • Hammer drilling in concrete, masonry and natural stone using bits in the 1/2" - 6" diameter range

For approval or certificate information, please see individual items.
