HIT-SC Screen tube

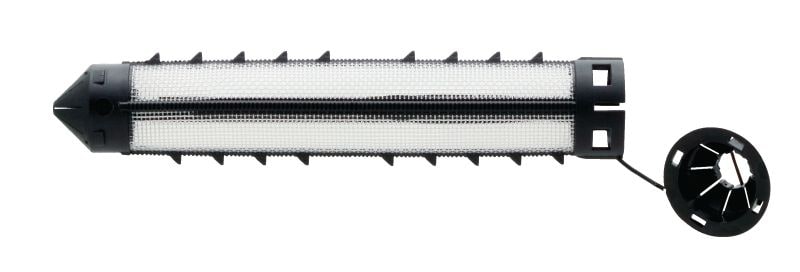

Mesh sleeve HIT-SC 16x85 #375982

Configurator
Technical Data
Features & Applications
Related Products
HIT-SC, HIT-HY 70
HIT-HY 70
HIT-HY 270 (70917)
9457.tif
44509_s.tif

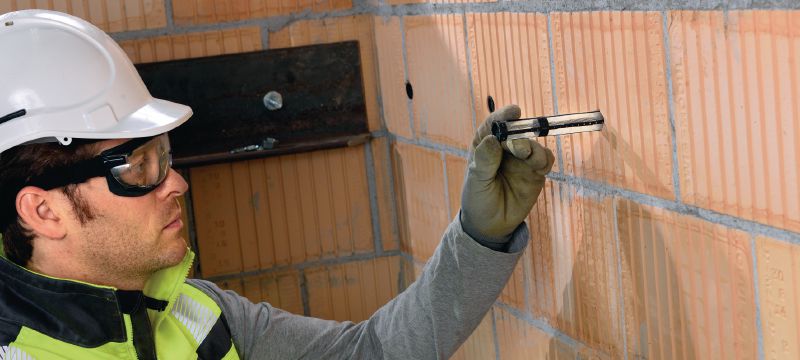

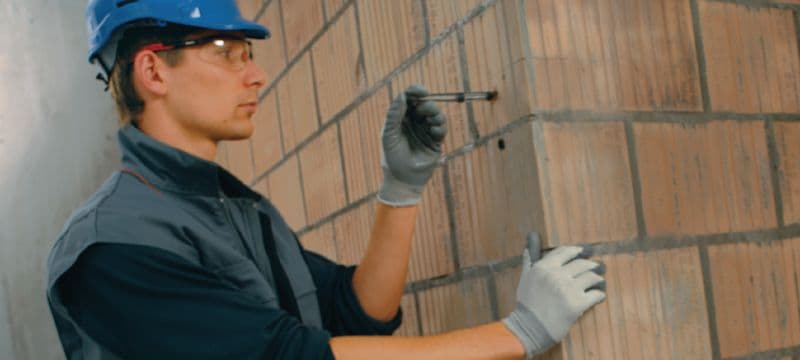

Modular composite mesh sleeves for masonry fastenings

  • Material, corrosion: Plastic
  • Drill bit diameter: 16 mm
  • PROFIS software: Yes

Choose options

Material composition
  • Plastic
Anchor size
  • M8/M10
Anchor length
  • 85 mm
Pack size
  • 20
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 4,037.52
INR 201.88 / 1 each

Technical Data

Material, corrosion
Plastic
Drill bit diameter
16 mm
PROFIS software
Yes
Approvals / test reports
ETA, ICC-ES report (masonry), SOCOTEC

Features & Applications

Features

  • Standard 50 mm and 85 mm lengths can be used individually or clicked together for deeper embedment applications
  • Simply push the anchor rod into the sleeve
  • The centring ring holds the anchor rod in place and stops mortar backflow out of the sleeve
  • No need to keep a large number of different sleeves in stock
  • Performance is equal to or better than that of metal mesh sleeves

Applications

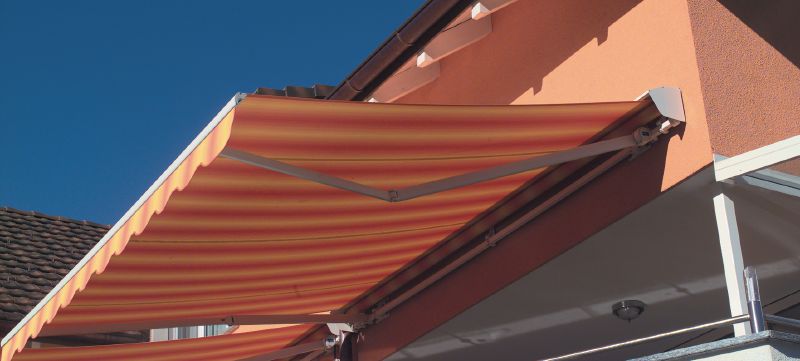

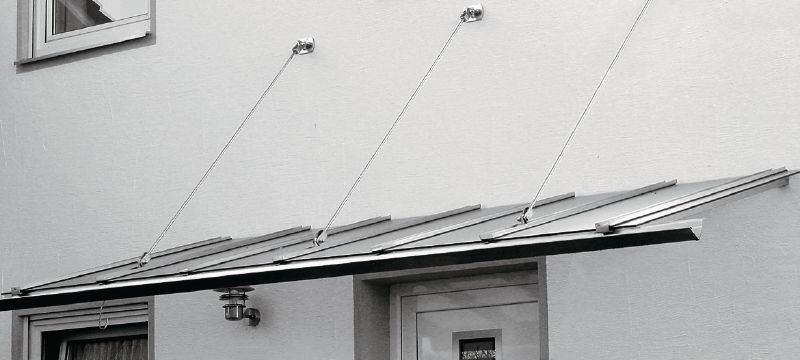

  • Typical applications include sun blinds, awnings, electrical installations, sanitary installations, handrails, banisters, railings, window grating and gates
