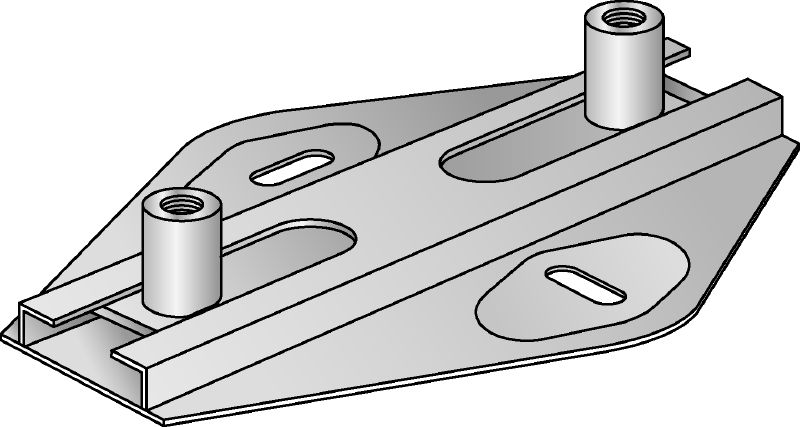

Galvanised double slide connector for light-duty heating and refrigeration applications

  • Material composition: S235JRG - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Thread connection - M
  • M12, M16
  • M8, M10
Height - H
  • 27 mm
  • 35 mm
Maximum load - F
  • 1.75 kN
Pack size
  • 10
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 21,440.00

Technical Data

29884.eps
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Concrete, Steel, Wood
Coefficient of sliding friction
0.18

Documents

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened base plate fits MQ modular support system
  • Smooth sliding movement on integrated plastic guide
  • Slide cannot pull out

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • single-point fastening of pipes or in combination with modular support systems
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
