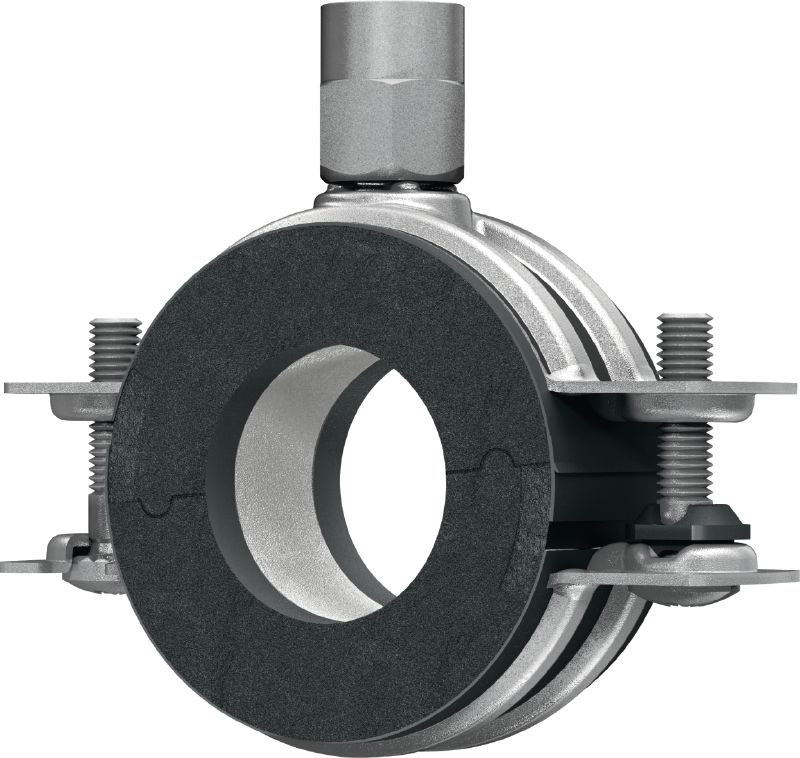

MRP-RPC Quick-close refrigeration pipe clamp

Galvanised pipe clamp for high productivity in refrigeration and cold water applications with an insulation thickness of 19 mm

  • Noise reduction: 22.5 dB (A)
  • Temperature resistance: -40 - 105 °C
  • Material composition: Closed-cell polyurethane foam (elastomer), vapour-retardant PVC foil outside
premium

Technical Data

IS_PR_MPR-RPC_0001.eps (73825)
Noise reduction
22.5 dB (A)
Temperature resistance
-40 - 105 °C
Material composition
Closed-cell polyurethane foam (elastomer), vapour-retardant PVC foil outside
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Premium
Thermal conductivity (λ approx. value)
0.034 W/mK
Approx. density
120 kg/m³

Documents

Features & Applications

Features

  • Designed for all insulation thicknesses from 13-19 mm with joint-to-pipe insulation material (elastomeric caoutchouc)
  • 360° mounting – the load capacity is achieved no matter how the core is rotated inside the pipe clamp
  • Adhesive foil can be released very easily, even when wearing gloves
  • Thermal insulation helps to prevent condensation on the surface and vapor-retardant foil helps to prevent condensation on the pipe
  • Compensation feature helps to prevent buckling and lifting of the outer foil when closing the pipe clamp

Applications

  • Fastening cold water and chilled water pipes up to 219 mm diameter
  • Suitable for application temperatures from 4-70°C

For approval or certificate information, please see individual items.
