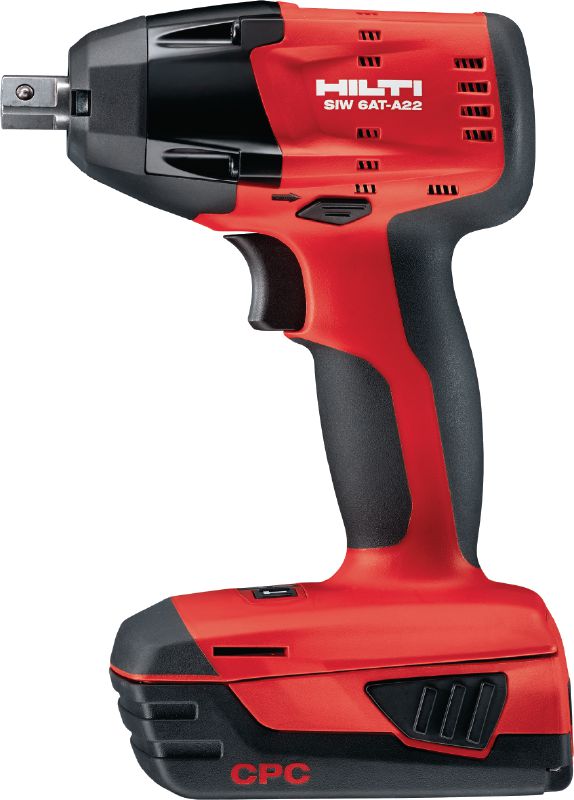

SIW 6AT-A22 Cordless impact wrench

Power-class 22V light-torque impact wrench with 1/2" detent anvil for anchoring and bolting

  • Anvil type: 1/2" detent pin
  • Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
  • Nut-busting torque: 338 Nm

Customers also searched for auto cut offexact torque or anchors.

Technical Data

Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 213 Nm (3) 1
Nut-busting torque
338 Nm
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
154 x 94 x 228 mm
Tool body weight
1.04 kg
A-weighted emission sound pressure level
94 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
  • Compact design for use wherever space is limited
  • Three gears and electronic speed control for easy switching between different driving speeds and torque
  • Four bright LEDs around the chuck provide direct illumination of the work surface
  • Compatible with the Hilti SI-AT-A22 Adaptive Torque module for controlled fastenings

Applications

  • Driving lag bolts up to 8 mm in diameter in wood
  • Driving lag bolts up to 1/2" in diameter
  • Tightening and releasing nuts and bolts in sizes M8 to M16
  • Tightening and releasing high-strength nuts and bolts from M6 to M12
  • Tightening and releasing nuts and bolts in sizes M6 to M16, excluding scaffolding and serial M16 applications
