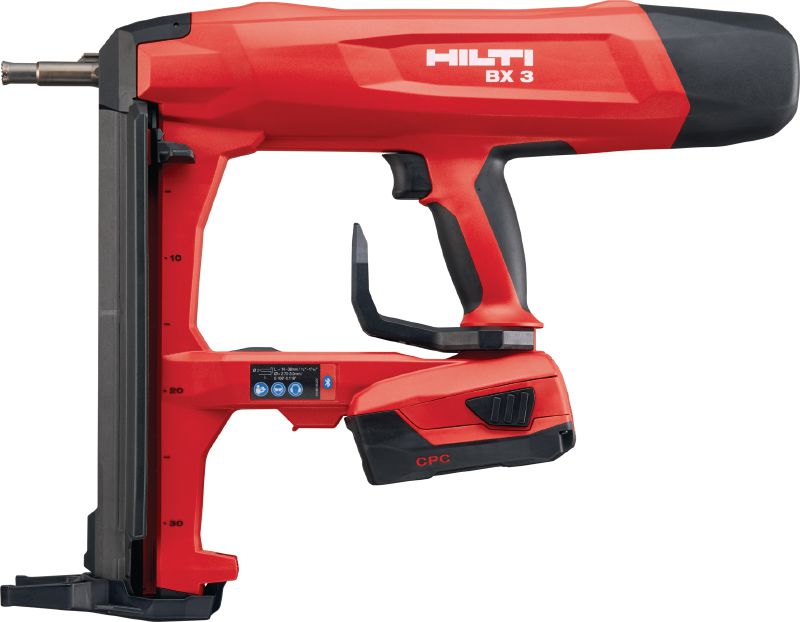

BX 3-L (02) Fastening tool

Kit BX3-2nd gen #3657460

22V cordless nailer for interior finishing applications

Dimensions (LxWxH): 474 x 134 x 368 mm
Tool body weight: 3.478 kg
Fastener length range: 14 - 36 mm

Customers also searched for bx3, drywall track fixing, nailer or direct fastening.

Choose options

Hilti Connect

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 182,307.00

1 each

Technical Data

Dimensions (LxWxH)

474 x 134 x 368 mm

Tool body weight

3.478 kg

Fastener length range

14 - 36 mm

Bluetooth

Yes

Power source type

22 V battery platform

Rated voltage

21.6 V

Documents

pdf [PDS_T_002_BX] BX 3 Battery-actuated tool - Data Sheet 05/2025, English [ 1.3 MB ]

Download

Features & Applications

Features

Second generation of Hilti’s combustion-free direct fastening technology – for high-quality, more reliable fastening to concrete, steel and some types of solid masonry
Combustion-free operation – no gas cans or powder cartridges to store and dispose of
Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2 Ah, 3.0 Ah or 2.6 Ah)
Magazine capacity of 30 nails
Engineered for high productivity – fastening rate of 1.3 nails per second

Applications

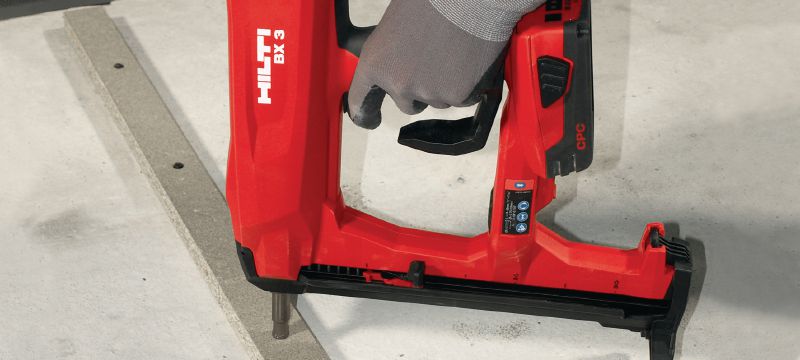

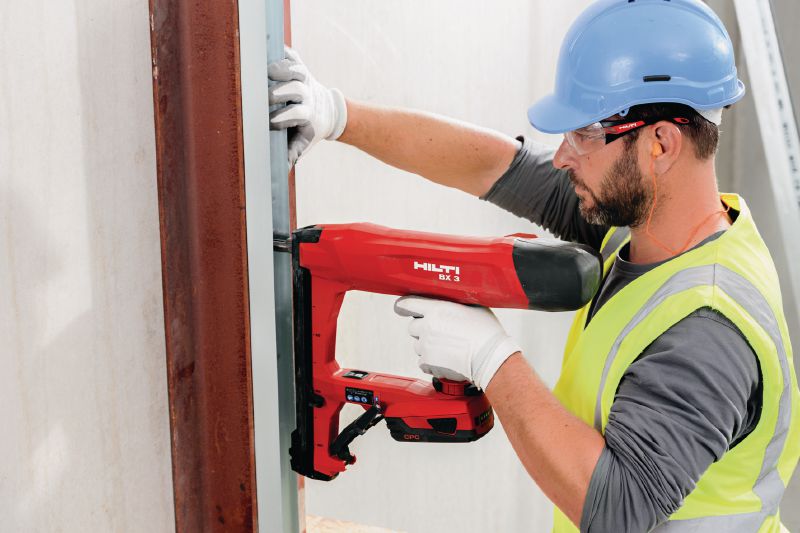

Fastening drywall track to floors, walls and ceilings on concrete, solid masonry or steel
Fastening mesh, membranes or foil with special washer holders to concrete walls
Fastening wall tie connections to concrete, solid masonry or steel – use of the special washer holder is recommended
Suitable for various light-duty fastening applications on concrete, solid masonry or steel

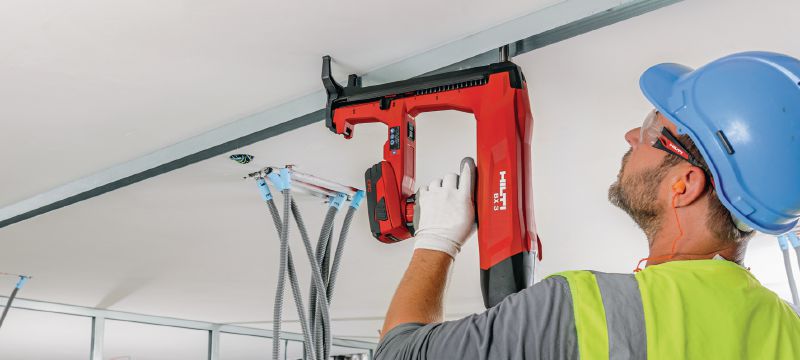

Fastening cables, conduits or various light electrical installations – use of the ME nailer nose is recommended

Related Products

B22 2.6 22V Battery

Compact 22V 2.6 Ah Li-ion battery

X-P B3 MX Masonry nails

Collated nails for fastening to concrete and other base materials using the BX 3 cordless nailer

X-S B3 MX Steel nails (collated)

Ultimate-performance collated nails for fastening to steel using the BX 3 cordless nailer

X-C B3 MX Masonry nails

Collated nails for fastening to concrete and other base materials using the BX 3 cordless nailer
